AHB01ESPP

••

• Teaching Operation for Alignment of Component Center with

Vacuum Nozzle Center

Perform this teaching operation when no regulation is given to the shape

of components and positioning should be made simply to the compo-

nent center.

The teaching operation must be performed with "All Beam Zero"

being displayed.

(1) Follow the teaching procedure below to perform the teaching op-

eration on the component center position.

Teaching Procedure

Selection of [Tape, Vib. Stick Teach Pick-Up

Pos. [Comp. Center Pos.]] Button

Selection of Head

Setting of Objective Feeder No. for Teaching

Refer to "5.1.4 "Feeder No. Set" Sheet"

for details.

Selection of "Center 1-Pt." or "Diagonal 2-Pt."

Suitable for Component Size

Selection of [Teach Pick-Up Pos.

[Comp. Center Pos.]] Button

Press the [ENABLE] button on the operation

panel in two seconds after the [ON] button

(entitled "MOVE").

The placement head moves to the objective feeder

position for teaching and the image of the pick-up

position is captured by the P.E.C. camera.

In the case of "Center 1-Pt.", the registration of the

designated nozzle is made together for graphic

teaching to facilitate the manual alignment opera-

tion with the pointing device.

Positioning Operation with Pointing Device

Refer to "Pointing Device Operation" (described

later) for details.

Selection of [End] Button

Selection of [YES] Button in "Confirmation"

Dialog Box for Replacement of Offset Data

Fig. 2F61

5.1 "Pick-Up Location" Tab

Note

0206-003 6-89

AHB01ESPP

••

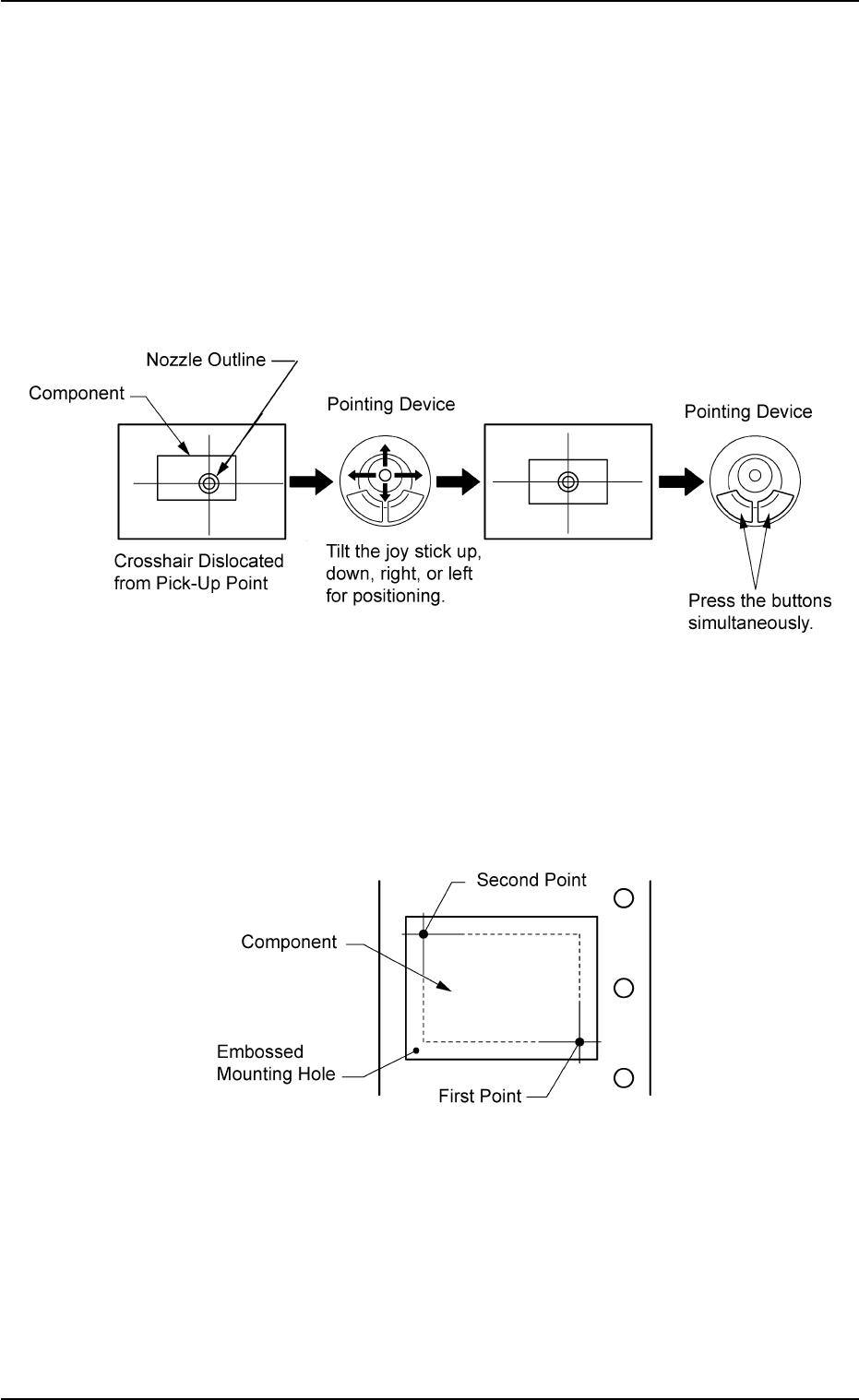

• Pointing Device Operation

"Center 1-Point Adjustment"

A crosshair appears on the recognized image.

Adjust the crosshair to the pick-up point, using the pointing device.

(1) When the [ENABLE] button on the operation panel is pressed in two

seconds after the [Center 1-Pt.] button and the [ON] button (entitled

"MOVE"), the P.E.C. recognition camera moves to the designated

feeder No. position.

(2) Manipulate the pointing device as shown in figure below.

Fig. 2F62

"Diagonal 2-Point Adjustment"

Specify two edges of the component to be picked up or the embossed

mounting hole.

Specify two edges in the embossed area of the component.

Or, specify two corners (points) of the embossed mounting hole.

Fig. 2F63

(1) When the [ENABLE] button on the operation panel is pressed in two

seconds after the [1Point] button and the [ON] button (entitled

"MOVE"), the P.E.C. recognition camera moves to the specified

feeder No. position.

A crosshair (first point) appears on the recognized image.

5.1 "Pick-Up Location" Tab

0206-003 6-90

AHB01ESPP

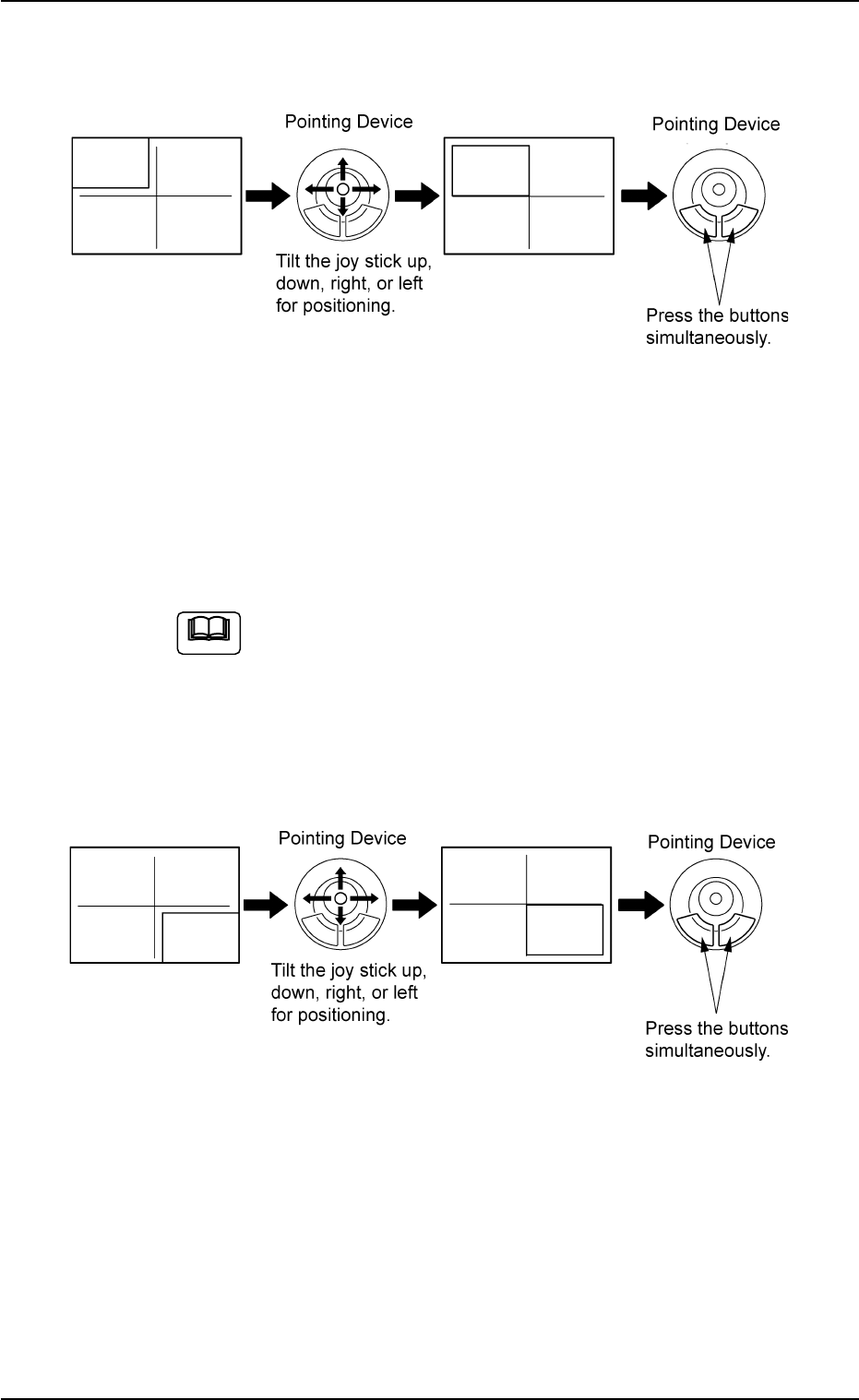

(2) Make an alignment with the pointing device and press the right and

left buttons simultaneously.

Fig. 2F64

(3) When the [ENABLE] button on the operation panel is pressed in two

seconds after the [2Point] button and the [ON] button (entitled

"MOVE"), the P.E.C. recognition camera moves to the specified

feeder No. position.

A crosshair (second point) appears on the recognized image.

When the [ON] button (entitled "MOVE") is hidden behind

the recognized image, touch the image softly to make it

disappear and press the [ON] button.

(4) Make an alignment with the pointing device and press the right and

left buttons simultaneously.

Fig. 2F65

5.1 "Pick-Up Location" Tab

Note

0206-003 6-91
