5.18 "Teaching Plate Ofs" Tab

The corresponding tab enables the operator to perform the teaching

operation on the teaching plate offset data.

The offsets of the teaching plate position can be taught through the manual

alignment operation.

This teaching operation must be performed only by our service

personnel.

• Sheet Layout

When the "Teaching Plate Ofs" tab is pressed in the "TEACHING" win-

dow (submenu), the following tab sheet appears inside the window.

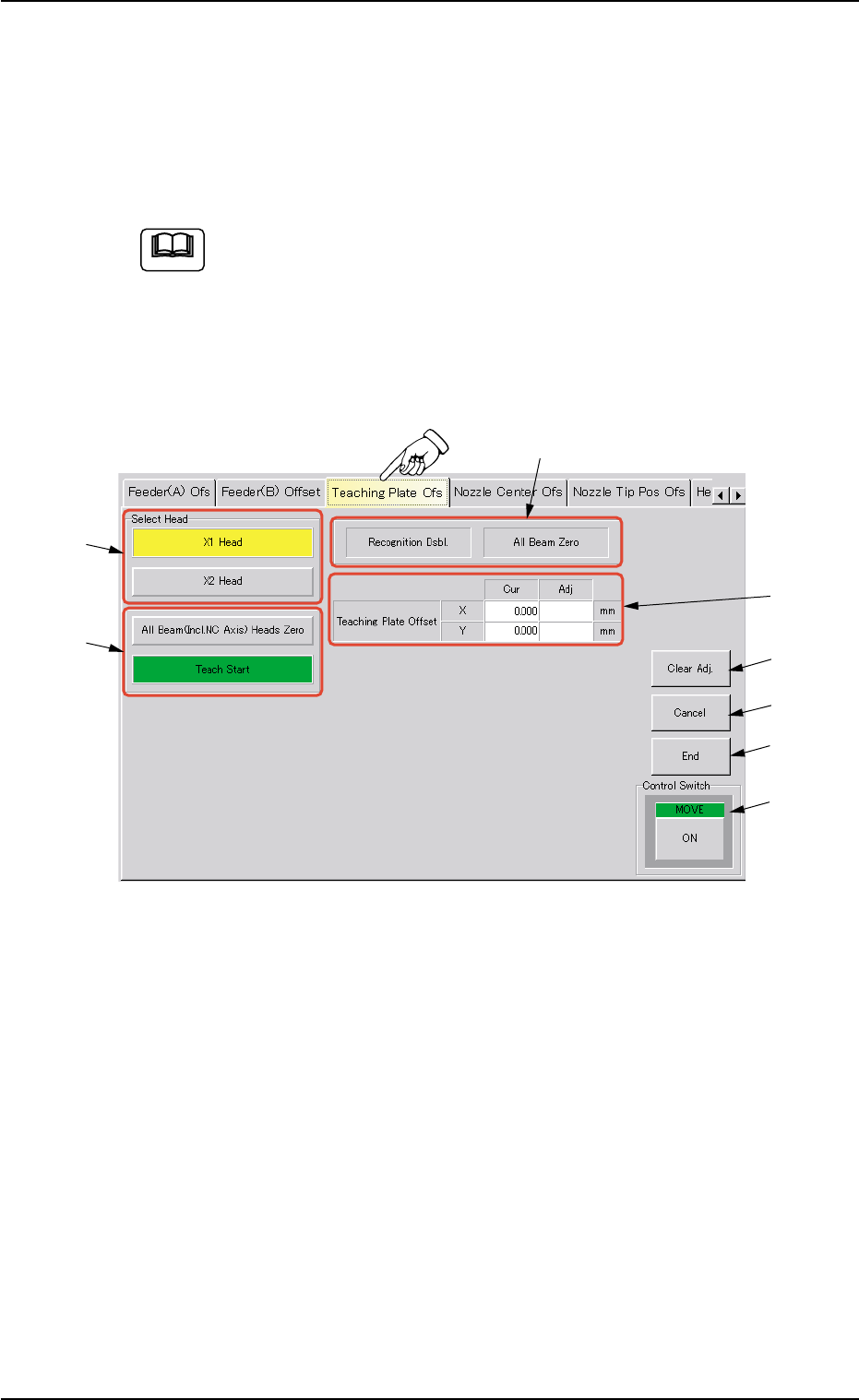

Fig. 2F127 "Teaching Plate Ofs" Tab Sheet

• Sheet Composition

*1 "Select Head" Group Box

The provided buttons make it possible to select the P.E.C. recogni-

tion camera to be used for teaching operations.

The following buttons are provided in this group box.

[X1 Head] and [X2 Head] Buttons

*2 "Selection of Teaching Operation" Group Box

The following buttons are provided in this group box.

[All Beam (Incl. NC Axis) Heads Zero] Button

When this button is pressed, all X/Y beams are zeroed.

[Teach Start] Button

When this button is pressed, a teaching operation is performed.

0206-002 6-196

5.18 "Teaching Plate Ofs" Tab

Note

AHB01ESPP

*3 Set Status

When the "P.E.C. Dsbl." or the "Comp. Recognition Dsbl." check

box in the "Test Run" window is turned on (checked), the background

color of "Recognition Dsbl." turns light red. (No background color in

normal cases).

No recognition processing is made even if a teaching op-

eration is performed when the each check box is turned on

(checked) in the "Test Run" window. Therefore, various

teaching operations will get incorrect results.

When "All Beam (Incl. NC Axis) Heads Zero" is completed, the back-

ground color of "All Beam Zero" turns green. (Otherwise, the back-

ground has no color.)

(a) When each device is not zeroed and the teaching op-

erations are performed, note that the offset values may

not be taught correctly.

(b) Before performing a teaching operation, be sure to zero

all beams.

*4 Offset Values

Displayed are the current values and the adjusted ones after teach-

ing.

*5 [Clear Adj.] Button

When pressed, this button clears the results of the teaching opera-

tion.

*6 [Cancel] Button

When pressed, this button ends the teaching operation without re-

flecting the teaching results on the offset data.

*7 [End] Button

When pressed, this button reflects the results of the teaching op-

eration on the offset data and exits from this session.

*8 "Control Switch" Group Box

Select the items (buttons) to be taught and press the [ON] button

entitled "MOVE". After that, press the [ENABLE] button on the op-

eration panel in 2 seconds. A teaching operation is performed on

the selected item.

Note

0206-002 6-197

5.18 "Teaching Plate Ofs" Tab

AHB01ESPP

5.19 "Nozzle Center Ofs" Tab

The corresponding tab sheet enables the operator to perform the teach-

ing operation on the nozzle center offset.

••

• Sheet Layout

When the "Nozzle Center Ofs" tab is pressed in the "TEACHING" win-

dow (submenu), the following tab sheet appears inside the window.

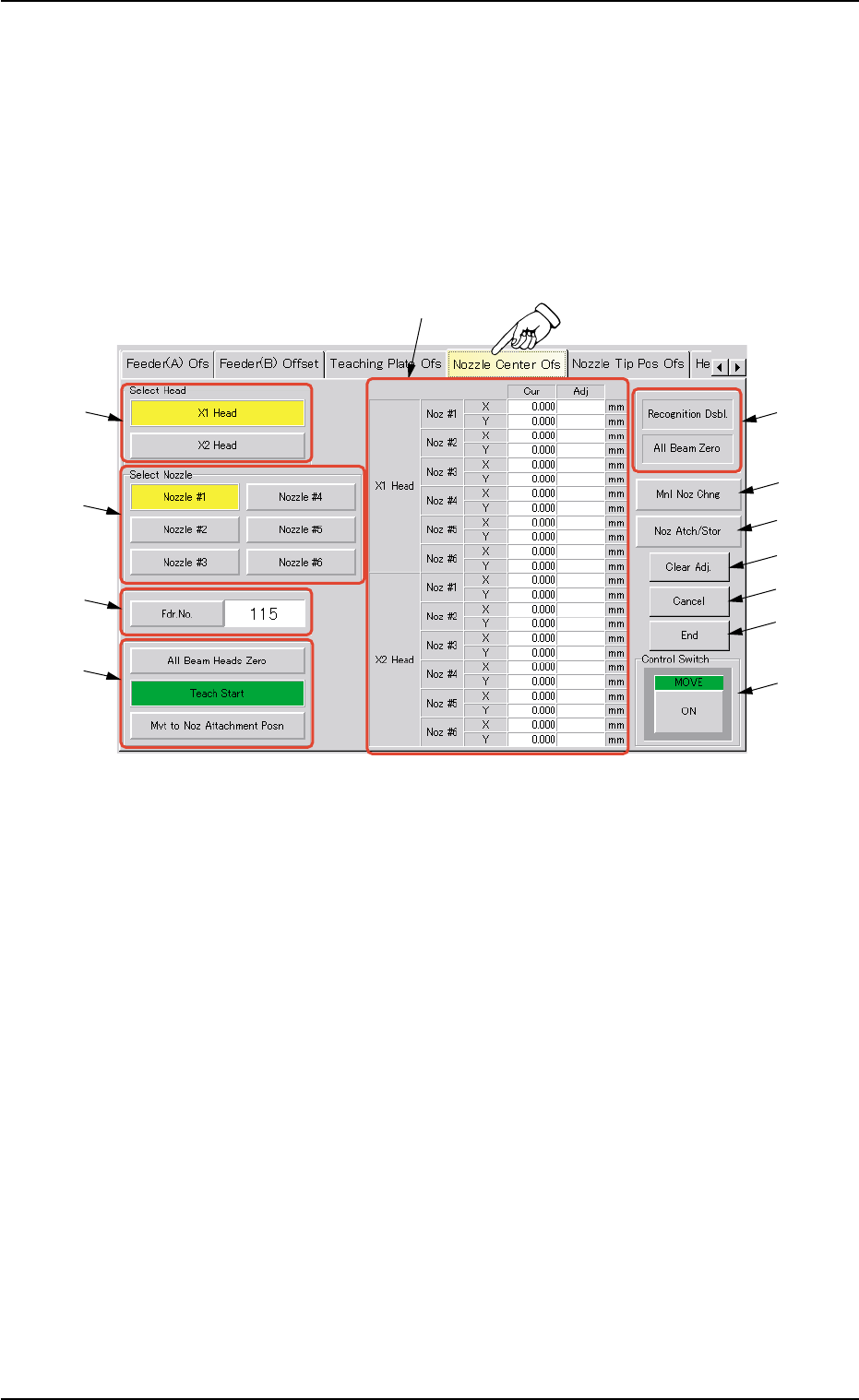

Fig. 2F128 "Nozzle Center Ofs" Tab Sheet

••

• Sheet Composition

*1 "Select Head" Group Box

The following buttons are provided in this group box.

[X1 Head] and [X2 Head] Buttons

*2 "Select Nozzle" Group Box

Select the nozzle position to be taught.

*3 [Fdr. No.] Button and Text Box

When this button is pressed, the "Fdr. No." edit window opens. En-

ter the feeder No. to which the head must be moved, using the ten-

key pad.

*4 "Selection of Teaching Operation" Group Box

The following buttons are provided in this group box.

[All Beam Heads Zero] Button

When this button is pressed, all X/Y beams are zeroed.

0206-002 6-198

5.19 "Nozzle Center Ofs" Tab
