AHB01ESPP 5.2.7 "End of T eaching Operation" Sheet When the teaching and component recognition test operations are com- pleted, the "Recognition" window closes. The following sheet automatically resum…

AHB01ESPP

To perform the teaching operation again, press the [Teach] button.

Refer to "5.2.9 Helpful Hints for Correction & Teaching" for details.

To confirm whether or not recognition operations are possible with

the created data, press the [Recog. Test] button.

The "Comp Recog (Manual)" sheet opens.

When the component cannot be recognized, correct the data and

perform a recognition test again.

When the [Return] button is pressed in the "Comp Recog

(Manual)" sheet, the "Recognition" window opens automati-

cally.

When the recognition test is completed normally or the parameters

are created or modified, the created parameters are saved, exiting

from the recognition test session.

The "Teach Library (New)" sheet opens.

Note

0308-004 6-135

5.2 Library Teaching

AHB01ESPP

5.2.7 "End of Teaching Operation" Sheet

When the teaching and component recognition test operations are com-

pleted, the "Recognition" window closes.

The following sheet automatically resumes.

Fig. 2F104-9 "End of Teaching Operation" Sheet

When the results of the teaching operation are saved and they must be

recognized, press the [Edit] button to start up the editor.

To make the component recognition test again, select the [Comp Recog]

button. As for the hysteresis test, select the [Hysteresis Test] button.

This window is equipped with the same functions as the component

recognition test.

Fig. 2F104-10 "Hysteresis Test" Sheet

Once a teaching operation is executed, using the "Recognition"

window, the taught contents are stored in the recognition

memory.

When an error occurs during the teaching operation or some-

thing is wrong in the output data, the saved contents (by press-

ing the [HD Save] button) can be used for the analysis on our

side. (Size: Approx. 870 kbytes).

5.2 Library Teaching

Note

0308-004 6-136

AHB01ESPP

Operation Procedure

(1) Press the [Component Collection] button.

(2) Press the [ON] button (entitled "MOVE"). In 2 seconds, press the

[ENABLE] button on the operation panel.

Components are discharged to the component storage box or the

recycle conveyor (option).

When the recycle conveyor (option) is provided, components

are discharged to the conveyor.

Press the [Manual] button of the recycle conveyor to collect the

components.

(3) When the [End] button is pressed, a dialog box opens, asking the

operator to determine whether or not the results of the teaching op-

eration must be saved in the test library.

To save the results, press the [YES] button. When the [NO] button

is pressed, the results are discarded. Pressing the [CANCEL] but-

ton resumes the previous operation.

After verifying the data and making the other operations, be

sure to press the [Component Collection] button to collect

the components.

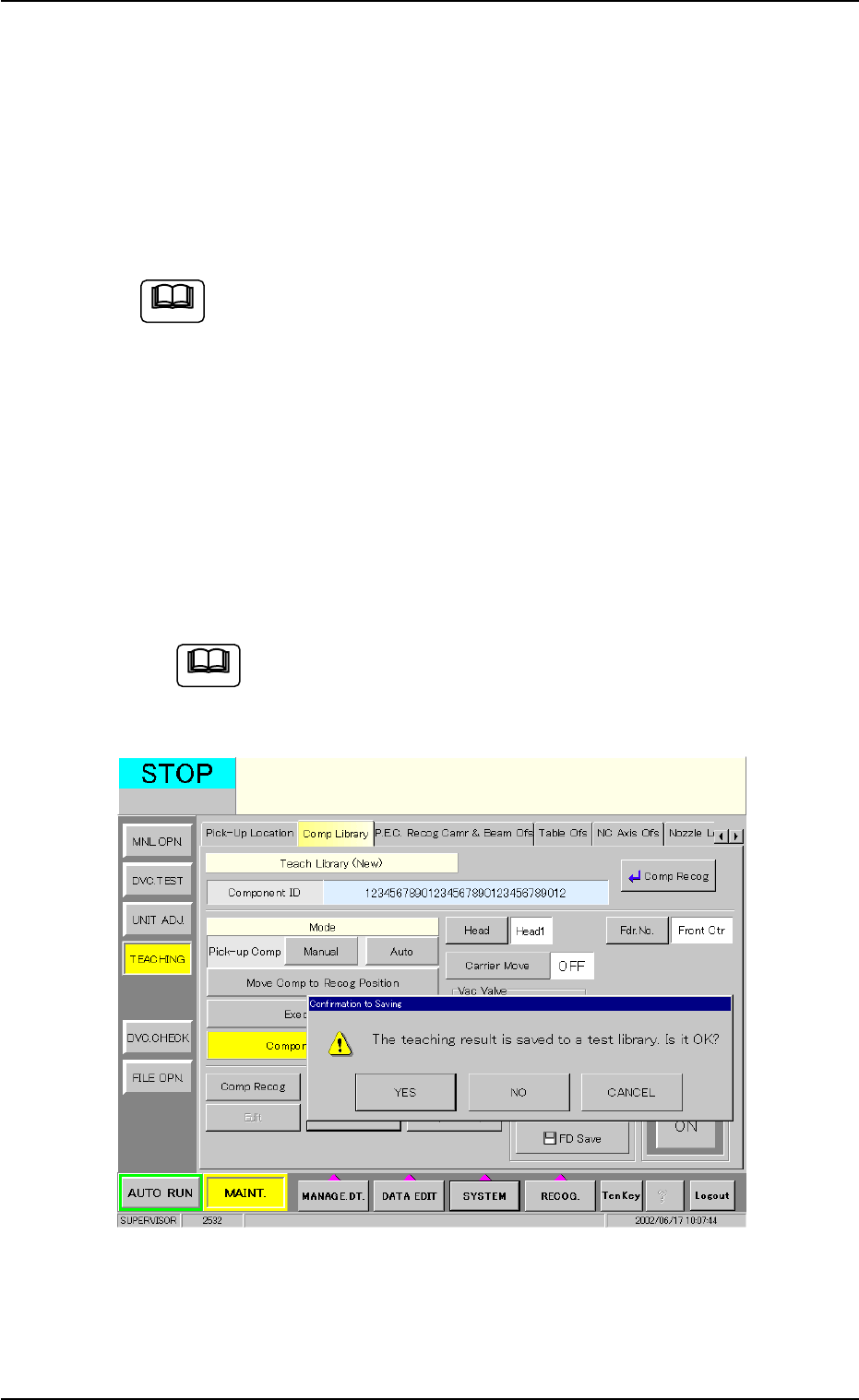

Fig. 2F104-11 "Confirmation to Saving" Dialog Box

0308-004 6-137

5.2 Library Teaching

Note
