AHB01ESPP *4 [Switch Stocker] Button When this button is pressed, the specified nozzle stocker is opened or closed. When pressed, this button turns yellow , indicating that one of the nozzle stocker selection buttons (*7…
AHB01ESPP
• Sheet Composition
*1 [Reset Nozzle] Button
When this button is pressed, the specified nozzles are stored in the
nozzle stocker.
When pressed, this button turns yellow, indicating that any one of
the nozzle selection (head) buttons (*6) can be set active.
*2 [Set Nozzle] Button
The nozzle selected from the nozzle stocker is attached to the speci-
fied nozzle No. position.
When pressed, this button turns yellow, indicating that one of the
nozzle selection (head) buttons (*6) and one of the nozzle selection
(stocker) buttons (*9) can be set active.
*3 [Select Nozzle] Button
The specified nozzle is moved to the "Nozzle #1" (downward) posi-
tion.
When pressed, this button turns yellow, indicating that any one of
the nozzle selection (head) buttons (*6) can be set active.
0308-003 6-68
4.3 "Nozzle Change" Tab
AHB01ESPP
*4 [Switch Stocker] Button
When this button is pressed, the specified nozzle stocker is opened
or closed.
When pressed, this button turns yellow, indicating that one of the
nozzle stocker selection buttons (*7) can be set active.
*5 Imaginary Expression of Nozzle Stockers
The nozzle stockers are expressed.
*6 Nozzle Selection (Head) Buttons
Select a nozzle on Head #1 or Head #2.
When one of the buttons is pressed, the background color turns
yellow.
The nozzle Nos. accented in blue represent that they are located at
the nozzle change position (Nozzle #1) of the related heads.
Fig. 2F51
*7 Nozzle Stocker Selection Buttons
Select one of the following buttons to specify which nozzle stocker
should be opened or closed.
NST-B1: Nozzle Stocker B1
NST-B2: Nozzle Stocker B2
When one of the buttons is pressed, the background color turns
yellow.
The nozzle Nos. accented in red represent that they are attached to
the related head.
0308-004 6-69
4.3 "Nozzle Change" Tab

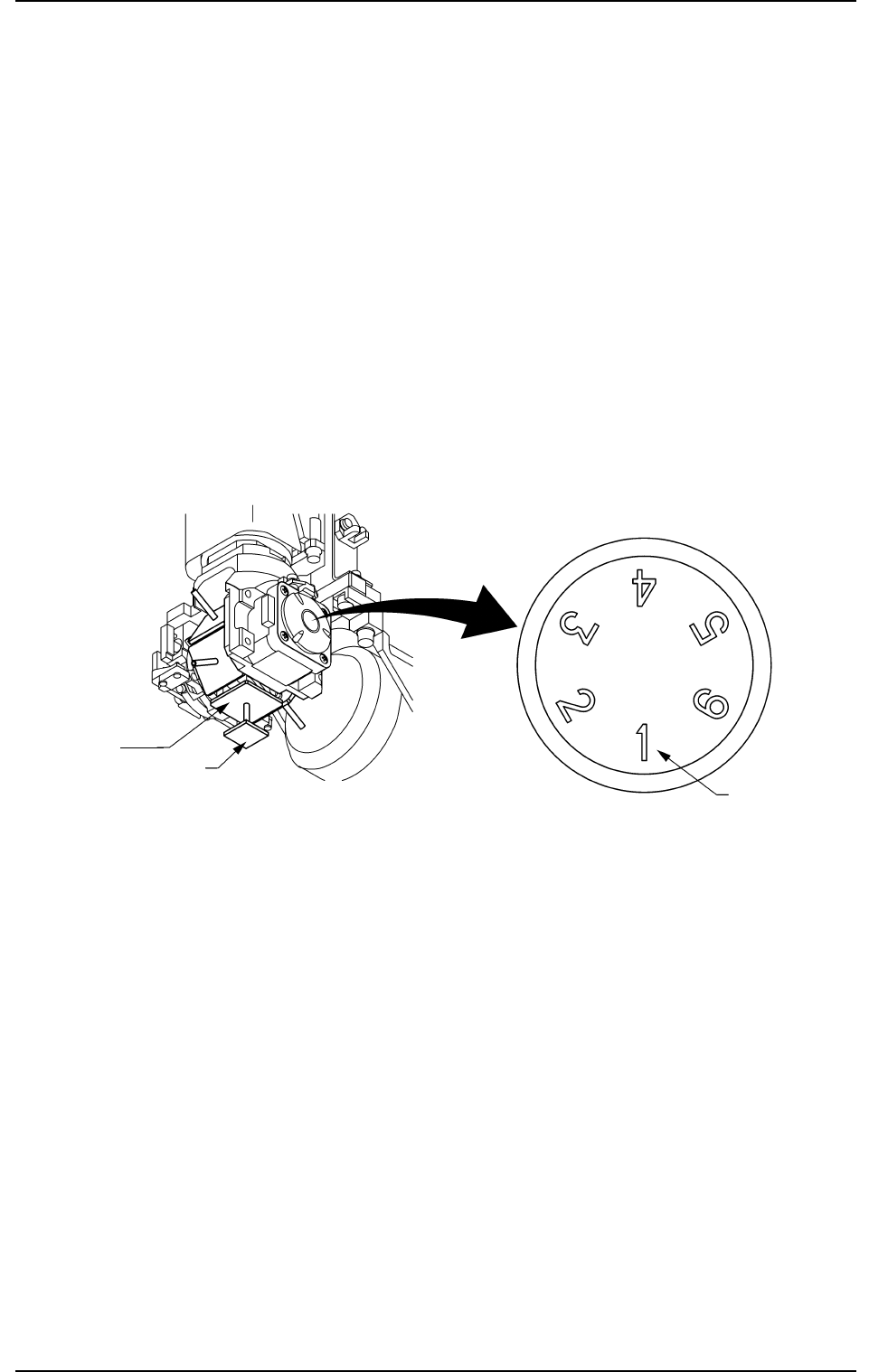

Vacuum
Nozzle at
Nozzle Change
Position
Component
Nozzle
Change
Position
Nozzle No.
AHB01ESPP
*8 Nozzle Stocker Open/Closed Status
Indicated is the status that represents if the nozzle stockers are
open or closed.
*9 Nozzle Selection (Nozzle Stocker) Buttons
Select a nozzle stored in the nozzle stocker.
When one of the buttons is pressed, the background color turns
yellow.
*10 "Control Sw" Group Box
When the [ENABLE] button on the operation panel is pressed in 2
seconds after one of the buttons in the "Operation" group box is
selected, the objective action is selected, and the [ON] button (en-
titled "MOVE") is pressed, the selected action takes place.
0308-003 6-70
4.3 "Nozzle Change" Tab
