AHB01ESPP 5 . 6 "Nozzle Level Ofs" T ab The corresponding tab sheet enables the operator to perform a teach- ing operation on the nozzle level offsets. This teaching operation must be performed only by our serv…
AHB01ESPP
*6 Offset Values
Displayed are the current values and the adjusted ones after teach-
ing.
*7 [Mnl Noz Chng] Button
When this button is pressed, the "Manual Nozzle Change" sheet
appears.
Refer to "4.4 "Nozzle Change" Tab" for details.
*8 [Clear Adj.] Button
When this button is pressed, the values taught through the teaching
operation is cleared.
*9 [Cancel] Button
When pressed, this button ends the teaching operation without re-
flecting the teaching results on the offset data.
*10 [End] Button
When pressed, this button reflects the results of the teaching op-
eration on the offset data and exits from this session.
*11 "Control Switch" Group Box
Select the items (buttons) to be taught and press the [ON] button
entitled "MOVE". After that, press the [ENABLE] button on the op-
eration panel in 2 seconds. A teaching operation is performed on
the selected item.
0206-003 6-157
5.5 "NC Axis Ofs" Tab
AHB01ESPP
5.6 "Nozzle Level Ofs" Tab
The corresponding tab sheet enables the operator to perform a teach-
ing operation on the nozzle level offsets.
This teaching operation must be performed only by our service
personnel.
• Sheet Layout
When the "Nozzle Level Ofs" tab is pressed in the "TEACHING" window
(submenu), the following tab sheet appears inside the window.

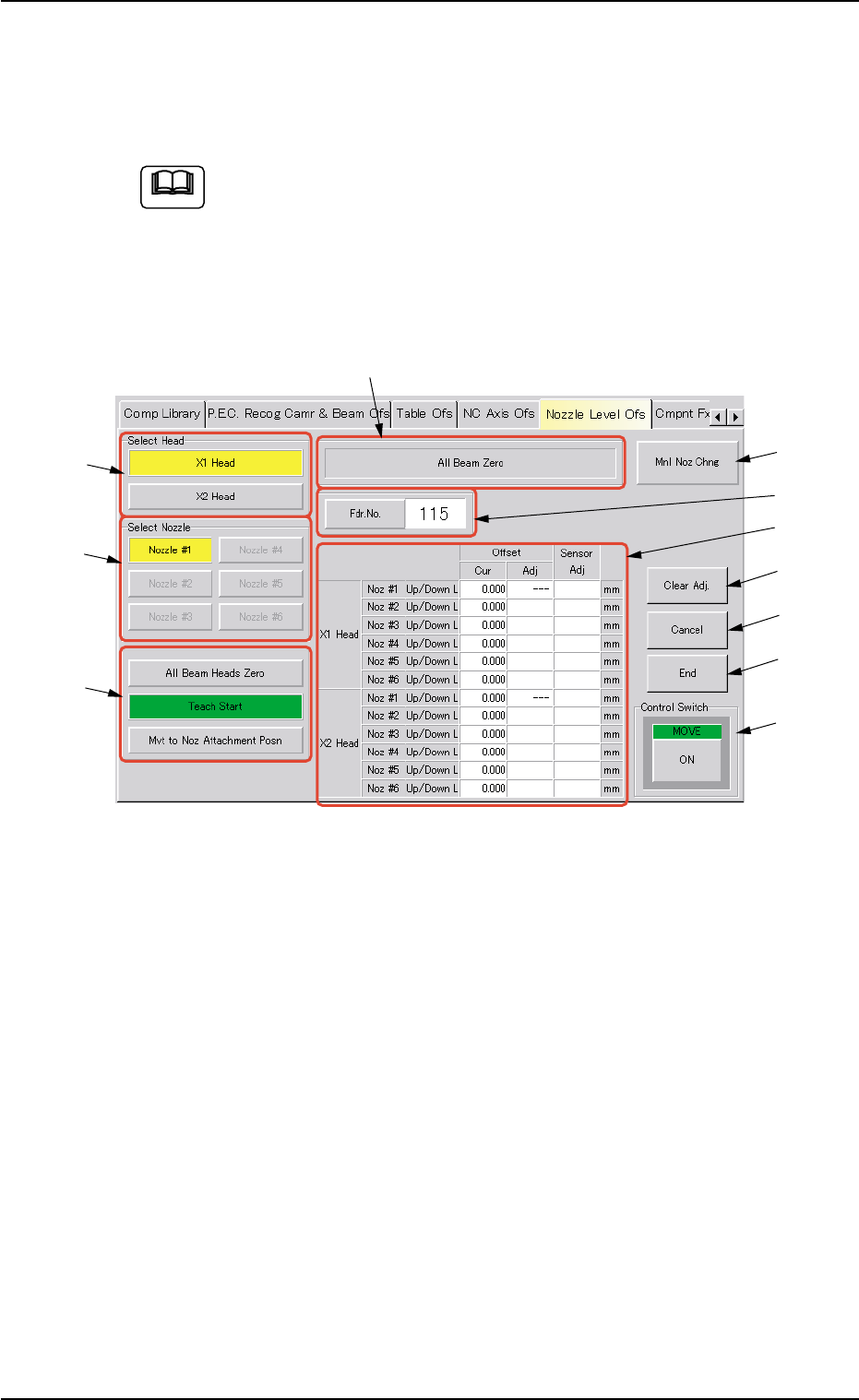

Fig. 2F111 "Nozzle Level Ofs" Tab Sheet
• Sheet Composition
*1 "Select Head" Group Box
Select the head to be used for teaching operations.
The following buttons are provided in this group box.
[X1 Head] and [X2 Head] Buttons
*2 "Select Nozzle" Group Box
Select the nozzle position to be taught.
*3 Teaching Operation Selection Buttons
The following buttons are provided.
[All Beam Heads Zero] Button:
When this button is pressed, all X/Y beams are zeroed.
[TEACH Start] Button:
When this button is pressed, a teaching operation is per-
formed, using the selected head.
5.6 "Nozzle Level Ofs" Tab
Note
*7
*8
*5
*9
*10
*11
*6
*1
*2
*3
*4
0206-003 6-158
AHB01ESPP
[Mvt to Noz Attachment Posn] Button:
When this button is pressed, the head moves to the speci-
fied feeder No. (Fdr. No.) position.
*4 Set Status
When "All Beam (Incl. NC Axis) Heads Zero" is completed, the back-
ground color of "All Beam Zero" turns green. (Otherwise, the back-
ground has no color.)
(a) When each device is not zeroed and the teaching op-
erations are performed, note that the offset values may
not be taught correctly.
(b) Before performing a teaching operation, be sure to zero
all beams.
*5 Fdr. No.
When this button is pressed, the "Fdr. No." edit window opens. En-
ter the feeder No. to which the head must be moved, using the ten-
key pad.
*6 Offset Values
Displayed are the current values and the adjusted ones after teach-
ing.
*7 [Mnl Noz Chng] Button
When this button is pressed, the "Mnl Noz Chng" sheet appears.
Refer to "4.3 "Nozzle Change" Tab" for details.
*8 [Clear Adj.] Button
When pressed, this button clears the results of the teaching opera-
tion.
*9 [Cancel] Button
When pressed, this button cancels the results of the teaching op-
eration without reflecting them on the offset data.
*10 [End] Button
When this button is pressed, a "Confirmation" dialog box opens.
When the [YES] button is pressed, the results of the teaching op-
eration are reflected on the offset data and the dialog box closes.
*11 "Control Switch" Group Box
Select one of the teaching item selection buttons and press the [ON]
button (entitled "MOVE"). After that, press the [ENABLE] button on
the operation panel in 2 seconds. A teaching operation is performed
on the selected item.
5.6 "Nozzle Level Ofs" Tab
Note
0308-004 6-159
