AHB01ESPP
• Composition of Menus for Maintenance
The menus for maintenance are composed of the following submenus.
Refer to "2.1" in "Section 4" for the tabs and tab sheets.
Menus for Maintenance
Submenus Tabs (Tab Sheets) Reference Item Nos.
MNL OPN. Zeroing Opn. "2.1" in "Section 6"
Manual Axis Opn. "2.2" in "Section 6"
DVC. TEST X/Y Beam Test "3.1" in "Section 6"
P.E.C. Recog Test "3.2" in "Section 6"
Cmpnt Recog Test "3.3" in "Section 6"
UNIT ADJ. Conveyor Adj "4.1" in "Section 6"
Feeder Base "4.2" in "Section 6"
Nozzle Change "4.3" in "Section 6"
Others "4.4" in "Section 6"
To the next page
Fig. 2D7 Composition of Menus for Maintenance (1)
In the above tree, the leaves (lower tab sheets) are left out.
1.2 Using the Menus
0308-003 4-6
Note
AHB01ESPP
From the previous page
Submenus Tabs (Tab Sheets) Reference Item Nos.
TEACHING Pick-Up Location "5.1" in "Section 6"
Library Teaching "5.2" in "Section 6"
P.E.C. Recog Camr & Beam Ofs "5.3" in "Section 6"
Table Ofs "5.4" in "Section 6"
NC Axis Ofs "5.5" in "Section 6"
Nozzle Level Ofs "5.6" in "Section 6"
Cmpnt Fxd Camr Mag "5.7" in "Section 6"
Cmpnt Recog Fxd Camr Ofs "5.8" in "Section 6"
Head Center Ofs "5.9" in "Section 6"
Head Rotation Ofs "5.10" in "Section 6"
Cmpnt Recog Mvbl Mag "5.11" in "Section 6"
Cmpnt Recog Mvbl Camr Ofs "5.12" in "Section 6"
Nozzle Stocker Ofs "5.13" in "Section 6"
Nozzle Stocker Ofs "5.14" in "Section 6"
Feeder Base Ofs "5.15" in "Section 6"
Feeder (A) Ofs "5.16" in "Section 6"
Feeder (B) Offset "5.17" in "Section 6"
Teaching Plate Ofs "5.18" in "Section 6"
Nozzle Center Ofs "5.19" in "Section 6"
Nozzle Tip Pos Ofs "5.20" in "Section 6"
Head Master Offset "5.21" in "Section 6"
Traverse Ofs (Optiom)
Lighting Teach "5.22" in "Section 6"
DVC. CHECK Input Check "7.1" in "Section 6"
Machine Prgm. Info. "7.2" in "Section 6"
FILE OPN. Save/Load "8.1" in "Section 6"
Fig. 2D7-1 Composition of Menus for Maintenance (2)
(a) In the above tree, the leaves (lower tab sheets) are left out.
(b) The above tree is based on the selection of the multi-layer
tray feeder (option).
1.2 Using the Menus
0308-003 4-6-1
Note
AHB01ESPP
1.2.3 Menus for Management Data
• Menu Selection
1. When the [MANAGE DT.] button on the main menu bar is pressed,
the "Management Data" window opens, enabling you to select man-
agement data.
2. The "Management Data" window is provided with some tabs. When
a tab is selected, the corresponding tab sheet appears inside the
window.

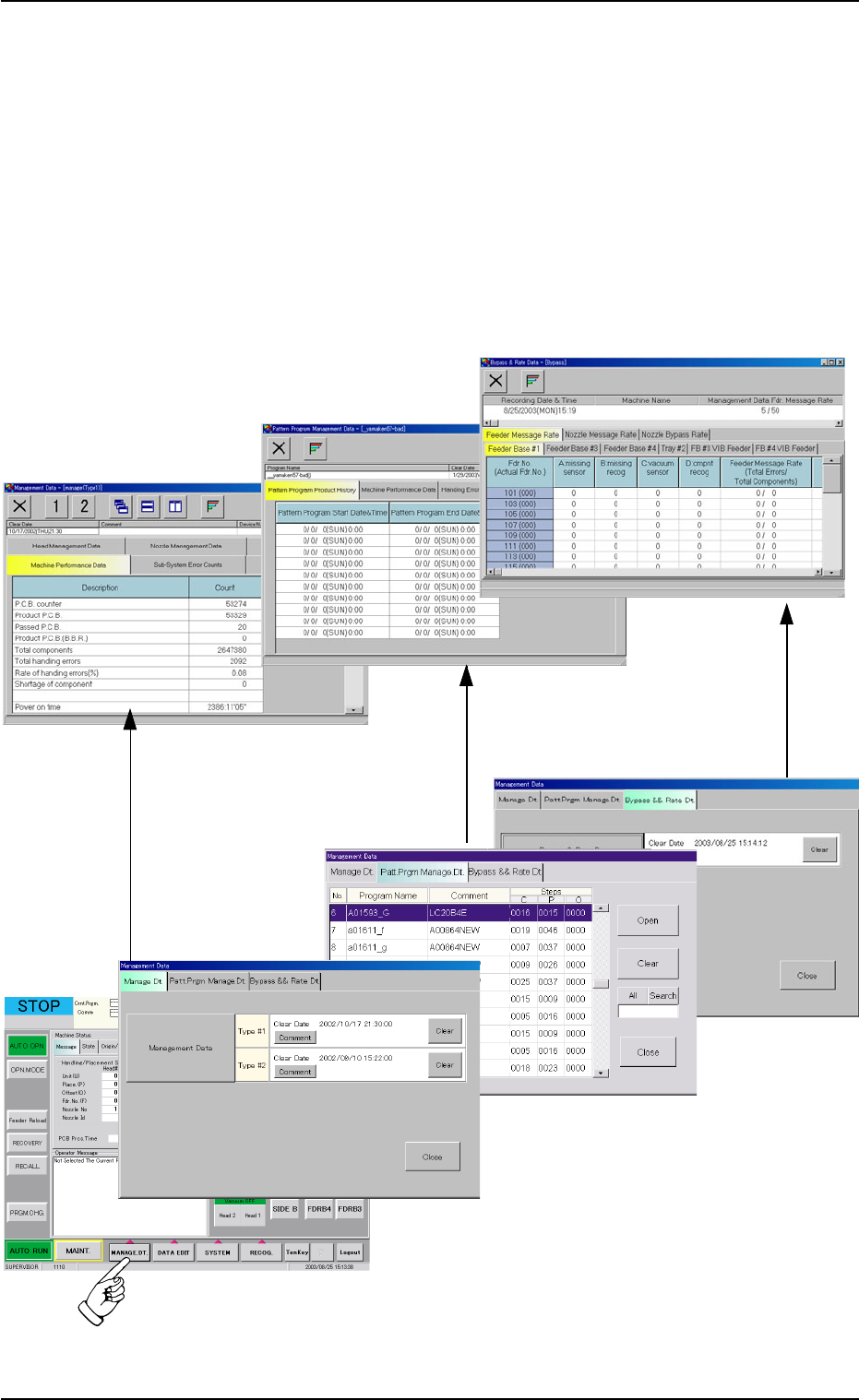

Fig. 2D8 Selection of Menus for Management Data
(Provided with Multi-Layer Tray Feeder 2)
1.2 Using the Menus
0308-003 4-7
"Bypass & Rate Dt."
Tab Sheet
"Management Data -
[manage(Type1)]" Window
"Pattern Program
Management Data"
Window
"Bypass & Rate Data" Window
"Manage Dt." Tab
Sheet
"Patt. Prgm
Manage. Dt."
Tab Sheet
