AHB01ESPP

7.1.5 "HLS Connect" Tab

The corresponding tab sheet enables the operator to view how the HLS

boards are connected.

• Sheet Layout

When the "HLS Connect" tab is pressed in the "Input Check" tab sheet,

the following tab sheet appears.

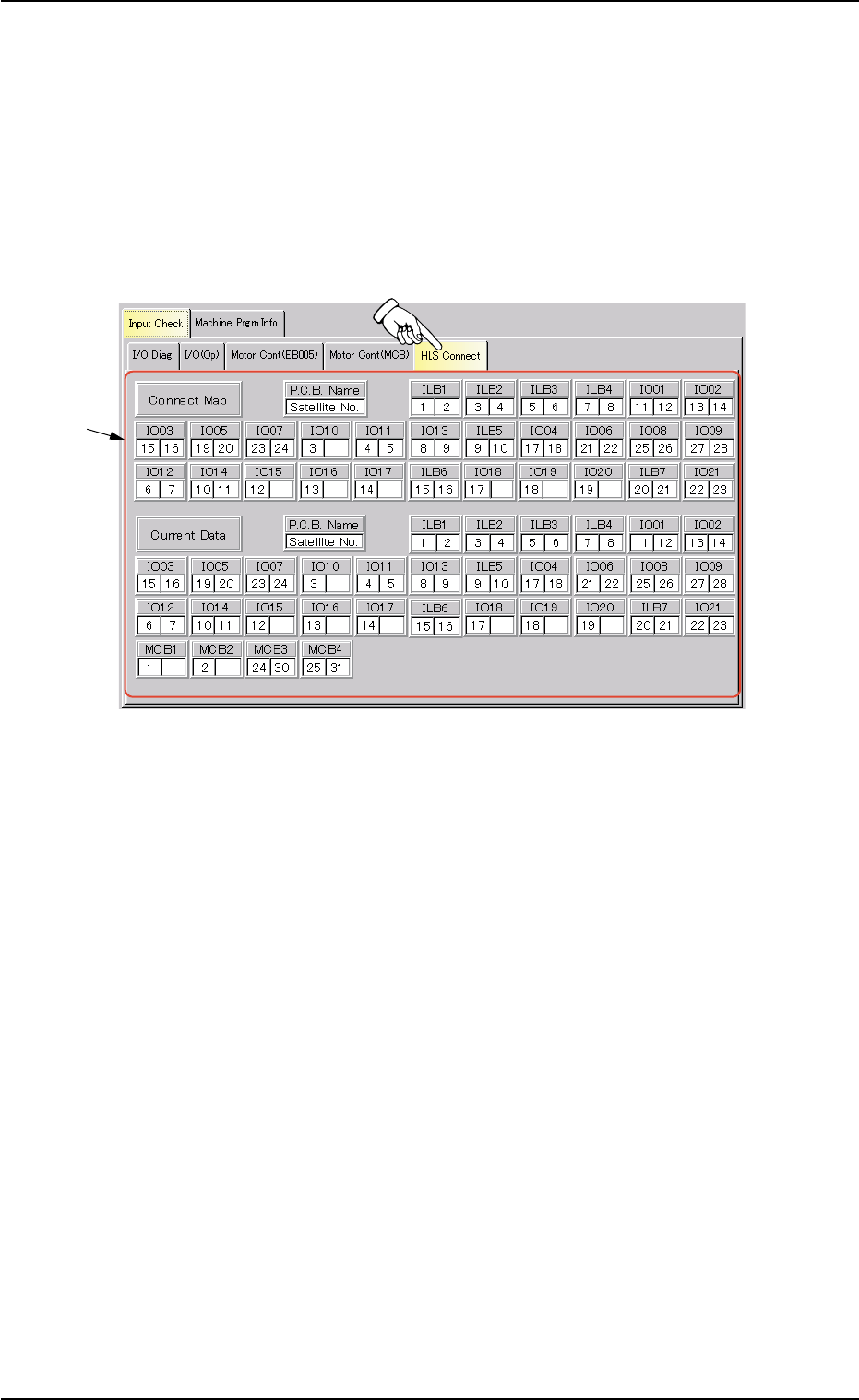

Fig. 2F138 "HLS Connect" Tab Sheet

• Sheet Composition

*1 Status of HLS Connection

Displayed are how the HLS boards are connected.

0206-003 6-214

7.1 "Input Check" Tab

AHB01ESPP

7.2 "Machine Prgm. Info." Tab

The corresponding tab sheet enables the operator to view the informa-

tion on the current programs loaded onto the machine.

• Sheet Layout

When the "Machine Prgm. Info." tab is pressed in the "DVC. CHECK"

window (submenu), the following "Machine Prgm. Info." tab sheet ap-

pears inside the window.

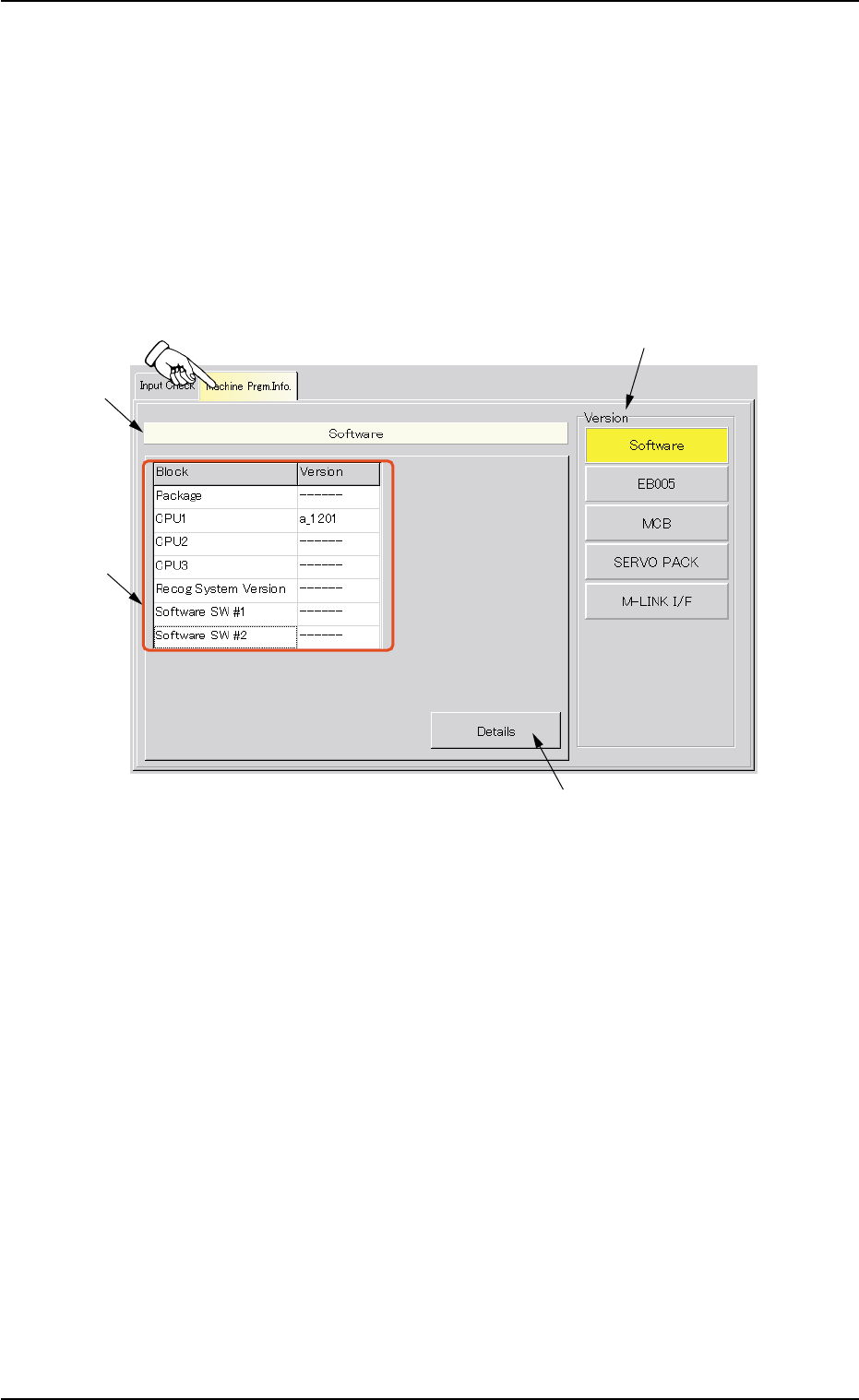

Fig. 2F139 "Machine Prgm. Info." Tab Sheet ([Software] Button Selected)

• Sheet Composition

*1 Title of Displayed Information

Displayed is the title of the information given in "*2".

*2 Information Pane

When one of the buttons in "*4" is pressed, the corresponding sheet

appears, enabling you to check the information on the selected item

(button).

The [Software] button is selected as a default.

*3 [Details] Button

When this button is pressed, the detailed information on the ver-

sions of the applications is displayed.

0308-004 6-215

7.2 "Machine Prgm. Info." Tab

AHB01ESPP

*4 "Version" Group Box

The following buttons are provided in this group box.

[Software] Button

When this button is pressed, the following sheet appears.

This sheet appears first (as a default) when the "Machine Prgm.

Info." tab is pressed.

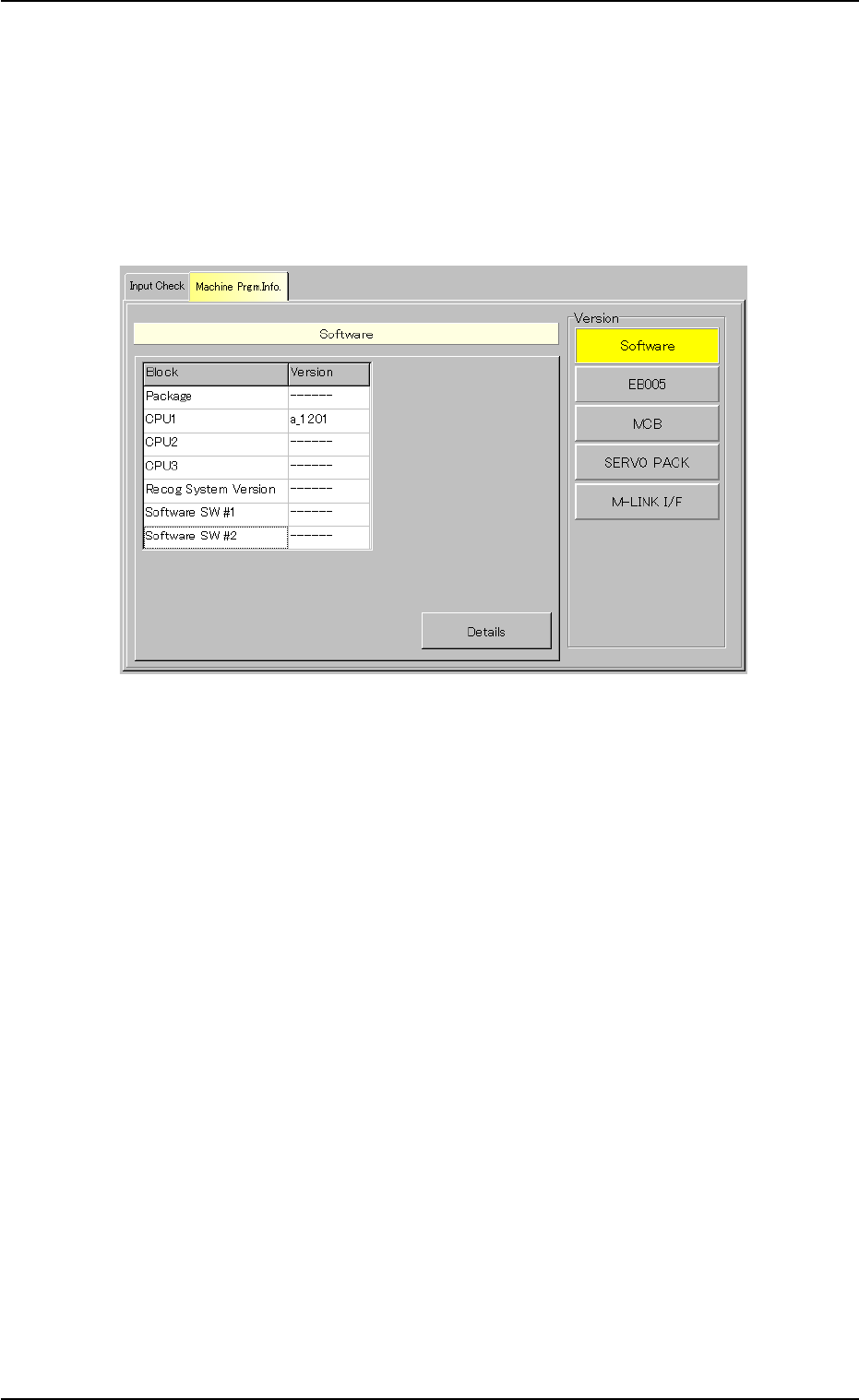

Fig. 2F140 "Machine Prgm. Info." Tab Sheet

([Software] Button Selected)

The information pane will give you the versions and the updated

time of the applications for each individual blocks of the machine.

0308-004 6-216
