AHB01ESPP
*5 [Tape Width] Button
Set the required tape width in the text box.
Every time this button is pressed, the parameter changes in scroll-
ing such as "8mm" Æ "12mm" Æ "16mm" Æ "24mm" Æ "32mm"
Æ "44mm" Æ "56mm" Æ "72mm" Æ "8mm".
*6 "Tape Feed Mode" Group Box
Select "Feed (Timer)" or "Feed (Sensor)" by turning on the corre-
sponding option button and specify the parameters (periods of time)
in the "Set Feed Time" and "Set Return Time" text boxes, using the
following buttons and the corresponding edit windows.
[Set Feed Time] Button
When this button is pressed, the "Set Feed Time" edit window
opens.
Enter the tape feed time in the range of "50 to 1999 msec".
[Set Return Time] Button
When this button is pressed, the "Set Return Time" edit win-
dow opens.
Enter the tape feed time in the range of "50 to 1999 msec"
*7 "Actual Time" Group Box
Displayed are the actual tape feed and returning periods of time.
0206-003 6-65
4.2 "Feeder Base" Tab
AHB01ESPP
*8 [Unit Set Status] Button
When the button is pressed, the "Unit Set Status" window opens.
Fig. 2F48 "Unit Set Status" Window
(1) Select the desired feeder base.
Every time this button is pressed, the label changes in scrolling
such as "Feeder Base #1" Æ "Feeder Base #3" Æ "Feeder
Base #4" Æ "Feeder Base #1".
(2) Press the [Set Status Read] button.
The status of each connector (1 through 16) is displayed for the
selected feeder base.
(3) Press the [Close] button. The "Unit Set Status" window closes.
*9 "Control Sw" Group Box
When one of the buttons (feeder base No.) is selected in "*1", a
feeder No. is specified in "*2", various parameters are set in "*3
through *7", and the [ENABLE] button on the operation panel is
pressed in 2 seconds after the [ON] button (entitled "MOVE"), the
tape of the selected feeder moves forward and backward according
to the specified parameters.
0206-003 6-66
4.2 "Feeder Base" Tab
AHB01ESPP
4.3 "Nozzle Change" Tab
The corresponding tab sheet enables the operator to manually open or
close the nozzle stockers, attach the vacuum nozzles, and perform a
cycle of storage operation.
• Sheet Layout
When the "Nozzle Change" tab is pressed in the "UNIT ADJ." window
(submenu), the following tab sheet appears inside the window.

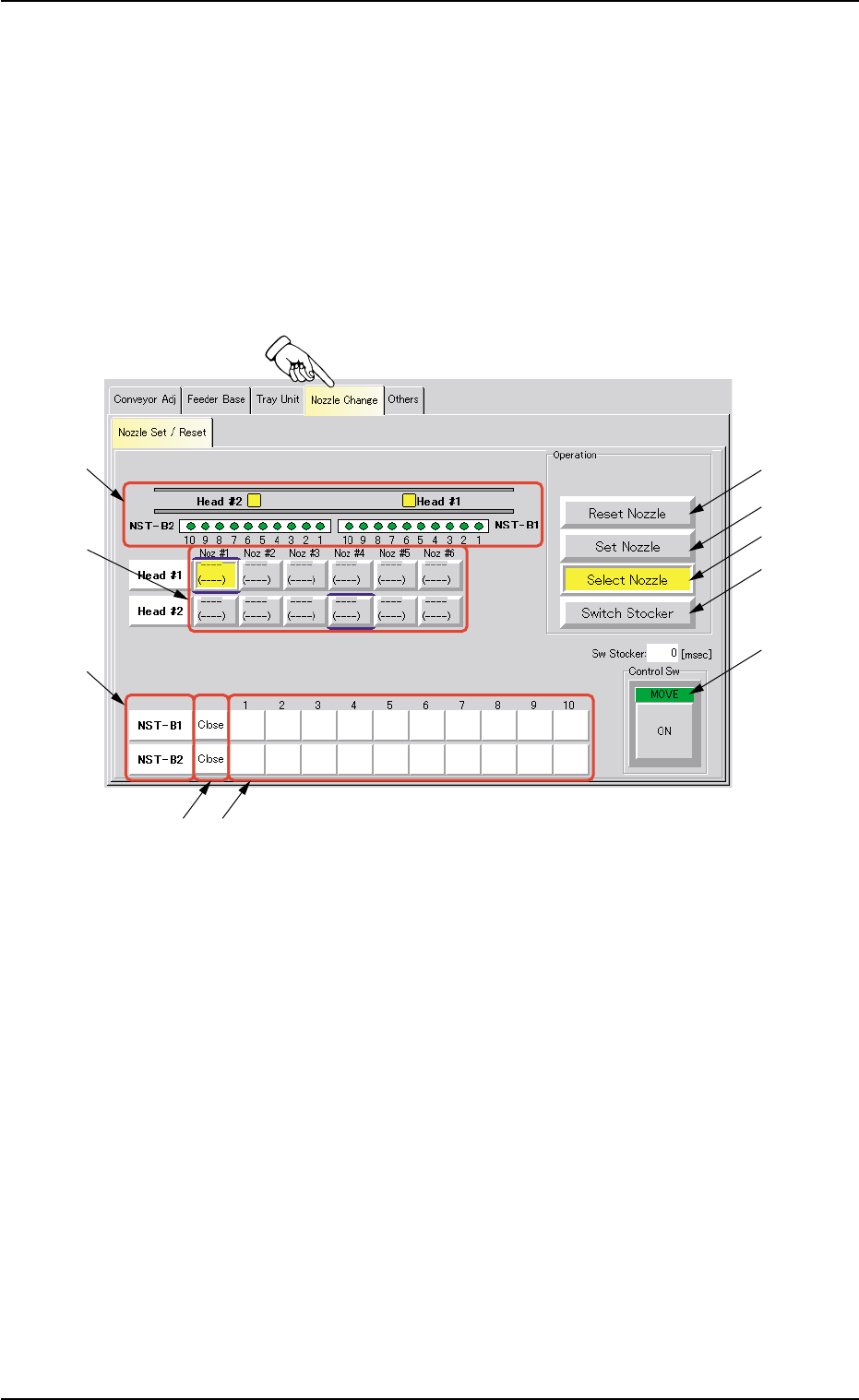

Fig. 2F50 "Nozzle Change" Tab Sheet
0308-004 6-67
4.3 "Nozzle Change" Tab
*5
*6
*7
*9*8
*10
*4
*3
*2
*1
