Note
5.3 "P.E.C. Recog Camr & Beam Ofs" Tab
AHB01ESPP
5.4 "Table Ofs" Tab
The corresponding tab enables the operator to determine the table off-
set data by recognizing the checker marks printed on the jig P.C.B.’s
with the P.E.C. recognition camera.
This teaching operation must be performed only by our service
personnel.
• Sheet Layout
When the "Table Ofs" tab is pressed in the "TEACHING" window
(submenu), the following tab sheet appears inside the window.

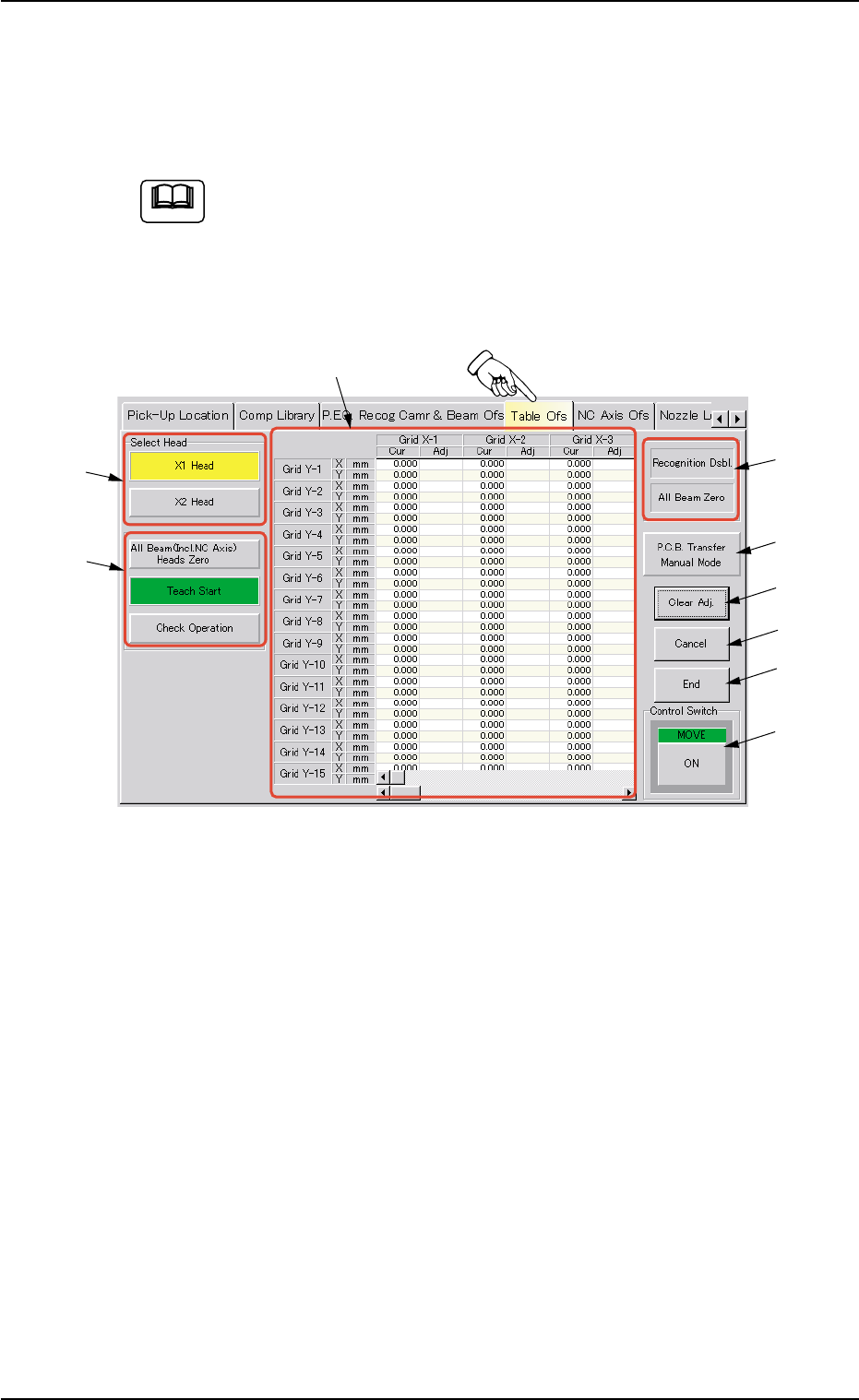

Fig. 2F109 "Table Ofs" Tab Sheet
• Sheet Composition
*1 "Select Head" Group Box
The provided buttons make it possible to select the P.E.C. recogni-
tion camera to be used for teaching operations.
The following buttons are provided in this group box.
[X1 Head] and [X2 Head] Buttons
*2 "Selection of Teaching Operation" Group Box
The following buttons are provided.
[All Beam (Incl. NC Axis) Heads Zero] Button
When this button is pressed, all X/Y beams are zeroed.
[Teach Start] Button
When this button is pressed, a teaching operation is performed,
using the selected head.
[Check Operation] Button
When pressed, this button recognizes the checker mark again,
using the results of the teaching operation.
(It is not necessary to use this function in normal cases.)
5.4 "Table Ofs" Tab
0206-003 6-153
Note
*1
*4
*6
*2
*5
*7
*8
*9
*3
AHB01ESPP
*3 Offset Values
Displayed are the current values and the adjusted ones after teach-
ing.
*4 Set Status
When the "P.E.C. Dsbl." or the "Comp. Recognition Dsbl." check
box in the "Test Run" window is turned on (checked), the background
color of "Recognition Dsbl." turns light red. (No background color in
normal cases).
No recognition processing is made even if a teaching op-
eration is performed when the each check box is turned on
(checked) in the "Test Run" window. Therefore, various
teaching operations will get incorrect results.
When "All Beam (Incl. NC Axis) Heads Zero" is completed, the back-
ground color of "All Beam Zero" turns green. (Otherwise, the back-
ground has no color.)
(a) When each device is not zeroed and the teaching op-
erations are performed, note that the offset values may
not be taught correctly.
(b) Before performing a teaching operation, be sure to zero
all beams.
*5 [P.C.B. Transfer Manual Mode] Button
When this button is pressed, the "P.C.B. Transfer Manual Mode"
sheet appears.
Refer to "5.3.1 "P.C.B. Transfer Manual Mode" Sheet" for details.
*6 [Clear Adj.] Button
When pressed, this button clears the results of the teaching opera-
tion.
*7 [Cancel] Button
When pressed, this button ends the teaching operation without re-
flecting the teaching results on the offset data.
*8 [End] Button
When this button is pressed, the teaching operation ends.
*9 "Control Switch" Group Box
Select the items (buttons) to be taught and press the [ON] button
entitled "MOVE". After that, press the [ENABLE] button on the op-
eration panel in 2 seconds. A teaching operation is performed on
the selected item.
Note
Note
0206-003 6-154
5.4 "Table Ofs" Tab
