5.1.2 "Tape, Vib. Stick Teach Ecc. Pick-Up Pos. [Pickup Loc.
Adj.]" Sheet
The corresponding sheet makes it possible to perform a teaching op-
eration on the eccentric pick-up correction position against hindrance to
component picks at the center.
••
••
• Sheet Layout
When the [Tape, Vib. Stick Teach Ecc. Pick-Up Pos. [Pickup Loc. Adj.]]
button is pressed in the "Pick-Up Location" tab sheet, the following sheet
appears.

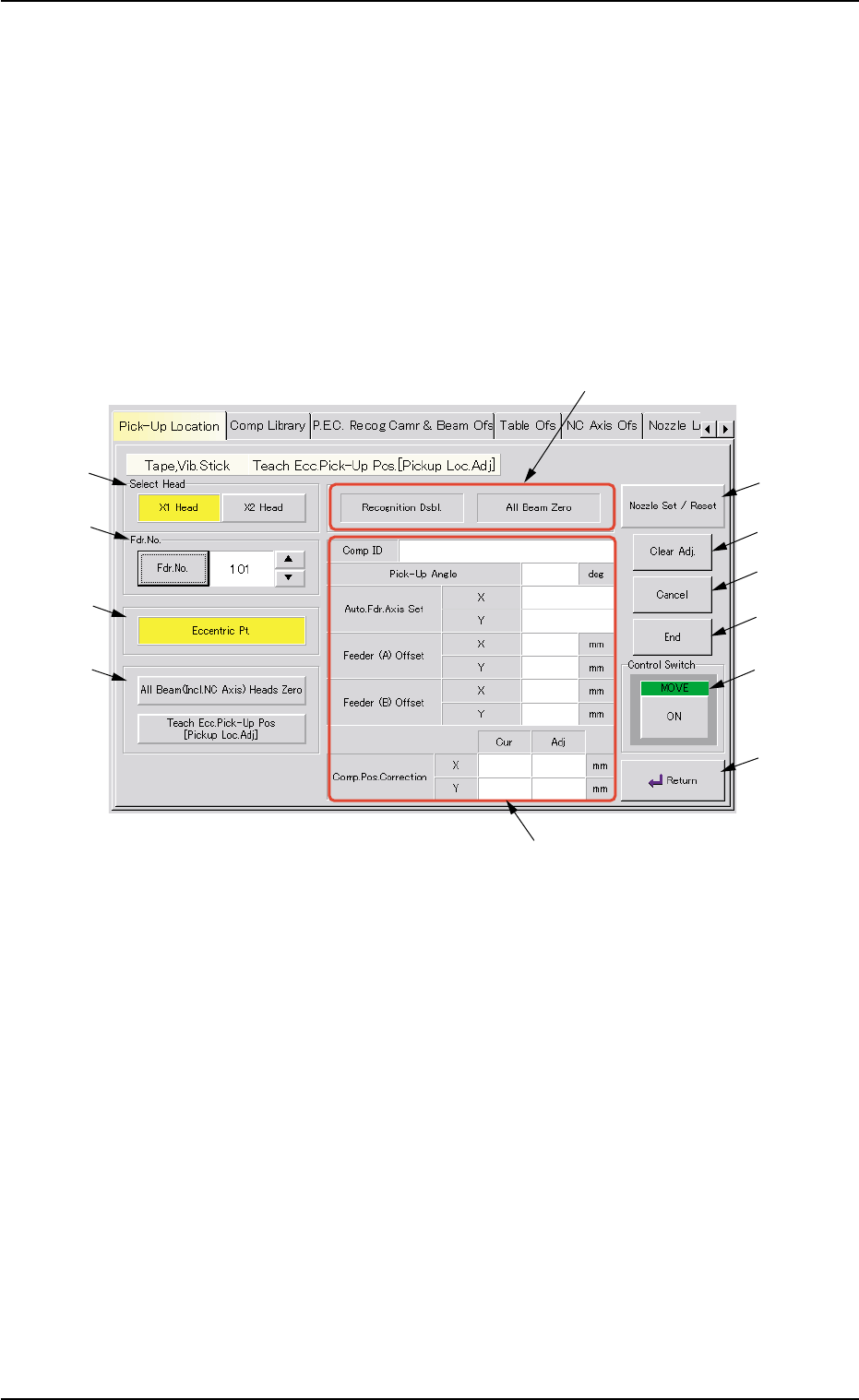

Fig. 2F66 "Tape, Vib. Stick Teach Ecc. Pick-Up Pos. [Pickup Loc. Adj.]" Sheet
••
••
• Sheet Composition
*1 "Select Head" Group Box
Select the head to be used for teaching operations.
The following buttons are provided in this group box.
[X1 Head] Button
When pressed, this button performs a teaching operation on Head
X1.
[X2 Head] Button
When pressed, this button performs a teaching operation on Head
X2.
5.1 "Pick-Up Location" Tab
0206-003 6-92
*1
*2
*3
*4
*7
*8
*9
*10
*11
*6
*12
*5
AHB01ESPP
*2 "Fdr. No." Group Box
Set the feeder No. to be taught.
When the [Fdr. No.] button is pressed, the "Feeder No. Set" sheet
appears.
Refer to "5.1.4 "Feeder No. Set" Sheet" for details.
*3 [Eccentric Pt.] Button
When the [ENABLE] button on the operation panel is pressed in two
seconds after this button and the [ON] button (entitled "MOVE"), the
P.E.C. recognition camera moves to the pick-up location corrective
position (the parameters specified in the "X [mm]" and "Y [mm]" text
boxes of the label "Pickup pos correction" in the component library
data), based on the component center position (Design Position +
Feeder (A) Offset + Feeder (B) Offset) of the related feeder and
captures an image.
Proceed to the operation of the pointing device and execute the
manual alignment operation.
Before the eccentric pick-up position adjustment is made,
it is necessary to teach the center position of the required
component.
*4 "Select Mode" Group Box
Various actions can be selected.
The following buttons are provided in this group box.
[All Beam (Incl. NC Axis) Heads Zero] Button
When this button is pressed, all X/Y beams are zeroed.
When the [ENABLE] button on the operation panel is pressed in two
seconds after this button and the [ON] button (entitled "MOVE"), the
zeroing operation starts.
[Teach Ecc. Pick-Up Pos. [Pickup Loc. Adj.]] Button
When a component has a groove, a protrusion, etc., and cannot be
picked up at the center with any hindrance, perform the teaching
operation on the pick-up position correction data (the parameters to
be specified in the "X [mm]" and "Y [mm]" text boxes of the label
"Pickup pos correction" in the component library data).
5.1 "Pick-Up Location" Tab
Note
0206-003 6-93
AHB01ESPP
*5 Set Status
When the "P.E.C. Dsbl." or the "Comp. Recognition Dsbl." check
box in the "Test Run" tab sheet is turned on (checked), the back-
ground color of "Recognition Dsbl." turns light red. (No background
color in normal cases).
No recognition processing is made even if a teaching op-
eration is performed when each check box is turned on
(checked) in the "Test Run" tab sheet. Therefore, various
teaching operations will get incorrect results.
When "All Beam (Incl. NC Axis) Heads Zero" is completed, the back-
ground color of "All Beam Zero" turns green. (Otherwise, the back-
ground has no color.)
(a) When each device is not zeroed and the teaching op-
erations are performed, note that the offset values may
not be taught correctly.
(b) Before performing a teaching operation, be sure to zero
all beams.
*6 Offset Values
Displayed are the current values and the adjusted ones after teach-
ing.
*7 [Nozzle Set/Reset] Button
When this button is pressed, the "Nozzle Set/Reset" sheet appears.
Refer to "4.4 "Nozzle Change" Tab" for details.
*8 [Clear Adj.] Button
When this button is pressed, the following "Confirmation" dialog box
opens.

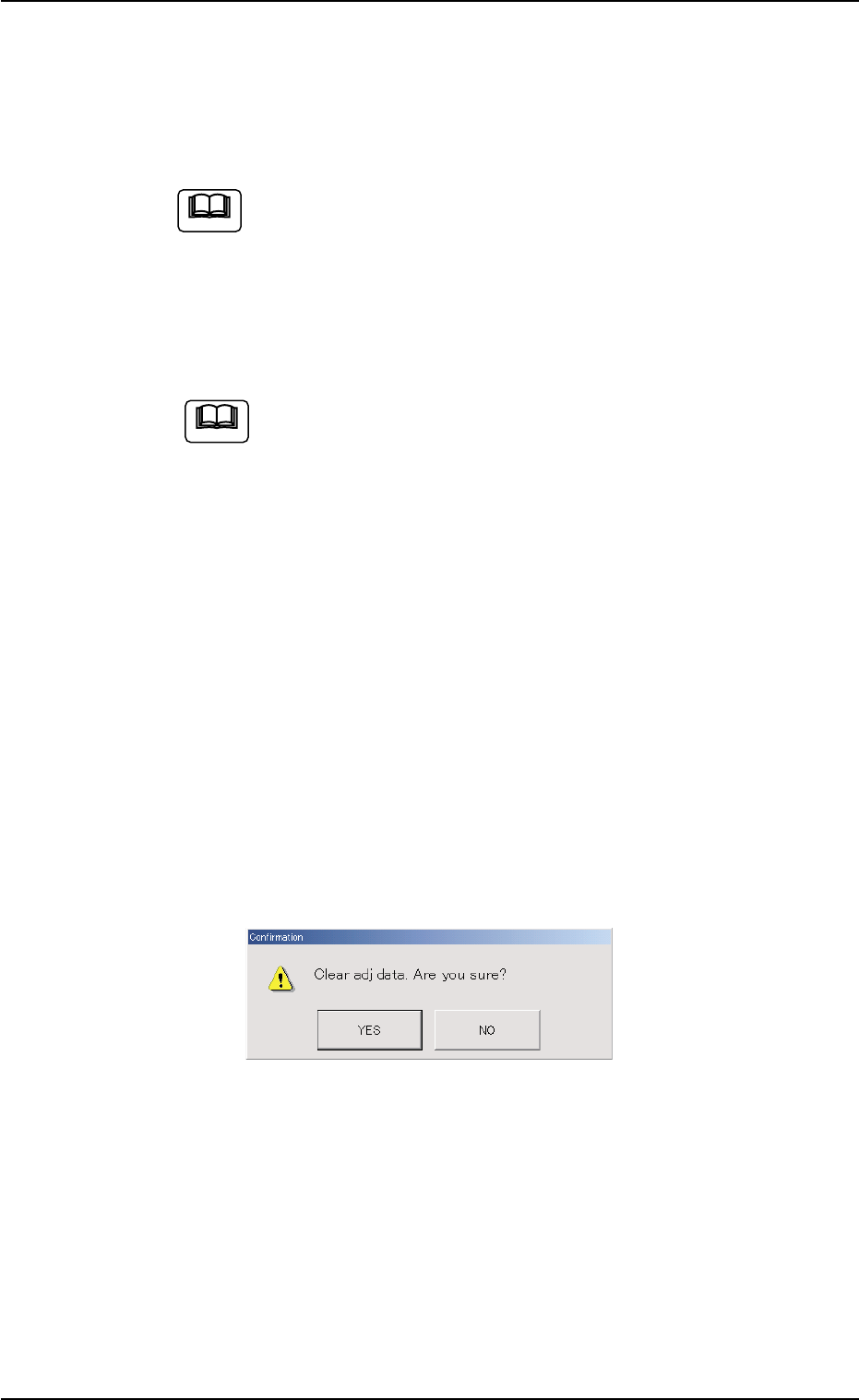

Fig. 2F67
When the [YES] button is pressed, the adjusted values are cleared.
When the [NO] button is pressed, the adjusted values are not cleared.
*9 [Cancel] Button
When pressed, this button ends the teaching operation without re-
flecting the teaching results on the offset data.
5.1 "Pick-Up Location" Tab
Note
Note
0206-003 6-94
