5.8 "Cmpnt Recog Fxd Camr Ofs" Tab

The corresponding tab sheet enables the operator to perform a teach-

ing operation on the offsets of the component recognition camera (fixed).

When the recognition is performed at the same time, using the P.E.C.

recognition camera and the fixed camera after a jig component is set on

the fixed camera, the deviation from the design position to the fixed cam-

era can be determined.

This teaching operation must be performed only by our service

personnel.

• Sheet Layout

When the "Cmpnt Recog Fxd Camr Ofs" tab is pressed in the "TEACH-

ING" window (submenu), the following tab sheet appears inside the win-

dow.

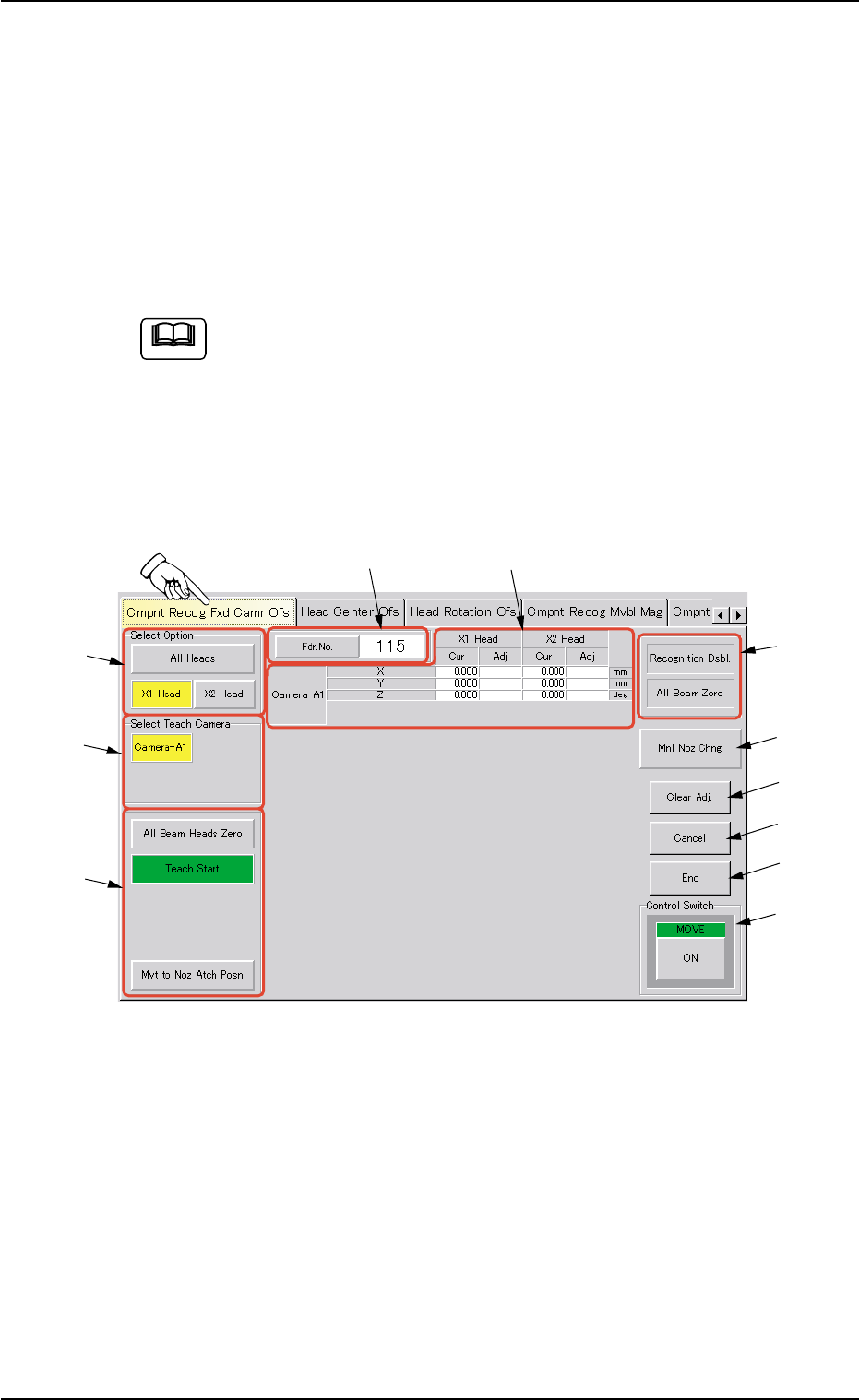

Fig. 2F113 "Cmpnt Recog Fxd Camr Ofs" Tab Sheet

0206-002 6-163

5.8 "Cmpnt Recog Fxd Camr Ofs" Tab

Note

*10

*11

AHB01ESPP

• Sheet Composition

*1 "Select Option" Group Box

The following buttons are provided.

[All Heads] Button

When this button is pressed, a teaching operation on the off-

sets of the component recognition camera (fixed) is performed,

using both heads.

Before performing the teaching operation, zero all beams.

[X1 Head] and [X2 Head] Buttons

A teaching operation on the offsets of the component recogni-

tion camera (fixed) can be performed, using either one of the

X1 and X2 heads.

Before performing the teaching operation, zero all beams.

*2 "Select Teach Camera" Group Box

Select the fixed camera to be used for the teaching operation.

The following button is provided in this group box.

[Camera-A1] Button

*3 "Selection of Teaching Operation" Group Box

The following buttons are provided in this group box.

[All Beam Heads Zero] Button

When this button is pressed, all X/Y beams are zeroed.

[Teach Start] Button

When this button is pressed, the machine performs a teaching

operation on the selected item.

[Movement to Nozzle Attachment Position] Button

When this button is pressed, the head moves to the specified

feeder No. (Fdr. No.) position.

*4 Set Status

When the "P.E.C. Dsbl." or the "Comp. Recognition Dsbl." check

box in the "Test Run" window is turned on (checked), the background

color of "Recognition Dsbl." turns light red. (No background color in

normal cases).

Note

0206-002 6-164

5.8 "Cmpnt Recog Fxd Camr Ofs" Tab

Note

AHB01ESPP

No recognition processing is made even if a teaching op-

eration is performed when each check box is turned on

(checked) in the "Test Run" window. Therefore, various

teaching operations will get incorrect results.

When "All Beam (Incl. NC Axis) Heads Zero" is completed, the back-

ground color of "All Beam Zero" turns green. (Otherwise, the back-

ground has no color.)

(a) When each device is not zeroed and the teaching op-

erations are performed, note that the offset values may

not be taught correctly.

(b) Before performing a teaching operation, be sure to zero

all beams.

*5 [Fdr. No.] Button

When this button is pressed, the "Fdr. No." edit window opens. En-

ter the feeder No. to which the head must be moved, using the ten-

key pad.

*6 Offset Values

Displayed are the current values and the adjusted ones after teach-

ing.

*7 [Manual Nozzle Change] Button

When this button is pressed, the "Nozzle Change" sheet appears.

Refer to "4.3 "Nozzle Change" Tab" for details.

*8 [Clear Adj.] Button

When this button is pressed, the values taught through the teaching

operation is cleared.

*9 [Cancel] Button

When pressed, this button ends the teaching operation without re-

flecting the teaching results on the offset data.

*10 [End] Button

When pressed, this button reflects the results of the teaching op-

eration on the offset data and exits from this session.

*11 "Control Switch" Group Box

Select the items (buttons) to be taught and press the [ON] button

entitled "MOVE". After that, press the [ENABLE] button on the op-

eration panel in 2 seconds. A teaching operation is performed on

the selected item.

Note

0308-003 6-165

5.8 "Cmpnt Recog Fxd Camr Ofs" Tab
