AHB01ESPP 5. "RECOVERY" Window (Submenu) 0308-004 5-25 5. "RECOVER Y" Window (Submenu) The corresponding tab sheet enables the operator to edit the current pattern program data. The data can be correc…

AHB01ESPP

*2 F1, F3, and F4

The color codes are used to indicate the condition (Enable, Short-

age of Component, or Disable) of the feeder Nos.

As for the component-shortage detected feeder No., "Shtg Of Comp."

is set automatically.

"Enable" is automatically set when the feeder is installed after com-

ponent replenishment.

To manually change the "Enable" and "Shtg Of Comp." modes

for the feeders, press the objective "Fdr No." and press the [Fdr.

Reload] button in the "Set Data" group box (*3).

*3 "Set Data" Group Box

The feeder No. selected in "*2" appears in the "Fdr No." text box.

When the [Fdr. Reload] button is pressed, the component shortage

mode of the selected feeder is cancelled.

*4 Comp ID, Type, Dir

Displayed are the component ID, the type, and the direction of the

feeder No. selected in "*2".

*5 [Enable All F1] Button

"Enable" is set for all feeders on the feeder base selected in "*2"

(Feeder Base #1 in this case).

• Operation Procedure

When the component shortage mode is manually cancelled,

be sure to reload the feeder with components.

(1) Select the feeder to be set in "*1".

(2) Select the feeder No. in "Shtg Of Comp." mode in "*2".

(3) Press the [Fdr. Reload] button in "*3".

The color of the feeder No. changes, indicating that the mode is

changed to "Enable".

In the case of tape feeders, the status indicator turns ON (changed

from "ON and OFF" (flickering)).

(4) Press the [START] button. The automatic operation restarts.

4.1 "Feeder Reload" Tab

0308-001 5-24-5

Note

AHB01ESPP

5. "RECOVERY" Window (Submenu)

0308-004 5-25

5. "RECOVERY" Window (Submenu)

The corresponding tab sheet enables the operator to edit the current

pattern program data.

The data can be corrected regardless of how the automatic

operation is performed.

• Window Layout

When the [RECOVERY] button on the "AUTO RUN" submenu bar, the

following window (submenu) appears.

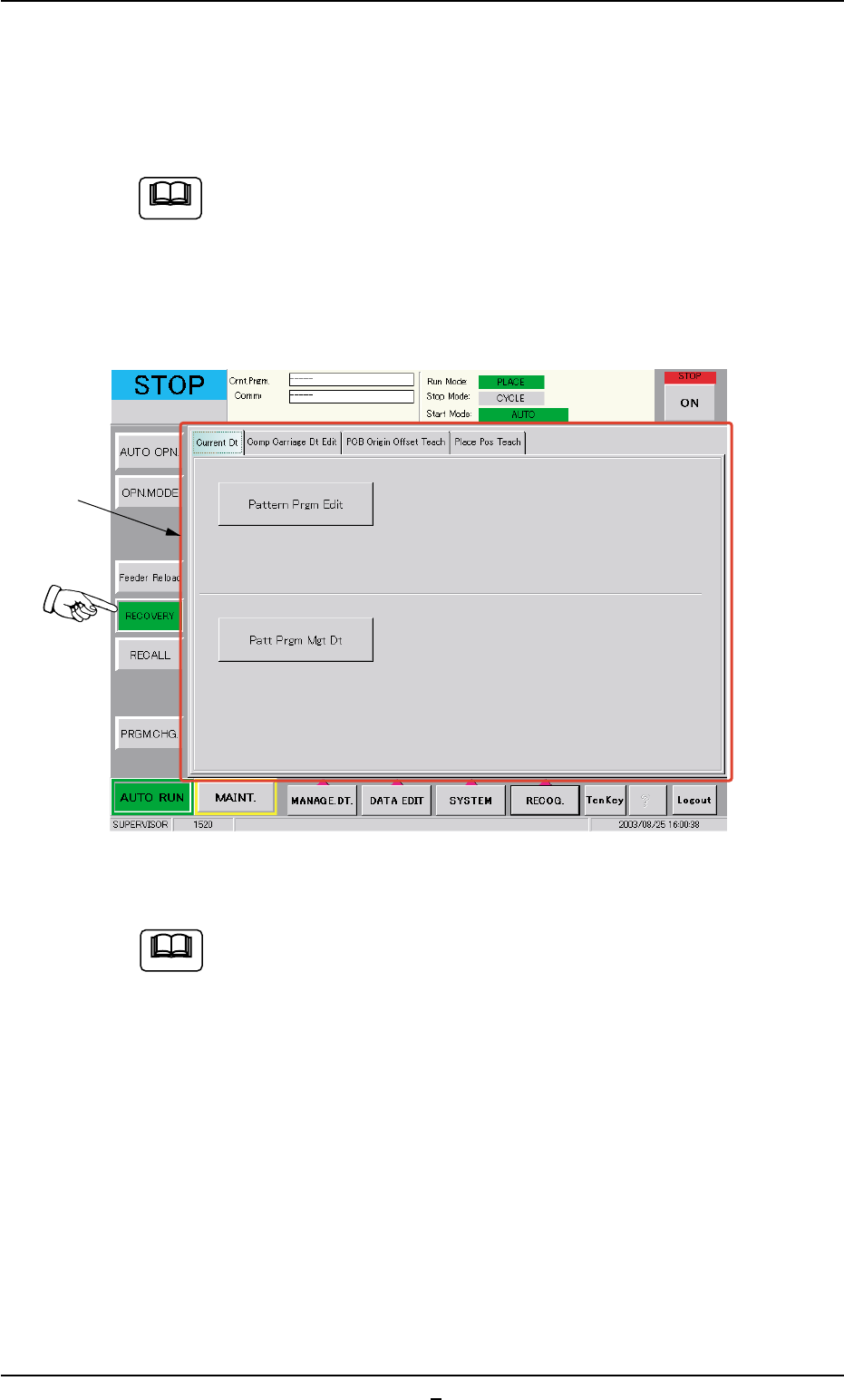

Fig. 2E16 "RECOVERY" Window (Submenu) (Provided with Multi-Layer Tray Feeder 2)

The tab sheet may look different, depending on which options

are selected.

••

• Window Composition

*1 Tabs and Tab Sheets

The "Recovery" window (submenu) is composed of the following

tab sheets.

Note

AHB01ESPP

Table 2E3

Tabs Description

Current Dt The corresponding tab sheet enables the operator to edit the

current pattern program data.

Comp Carriage Dt Edit The corresponding tab sheet enables the operator to easily

change the component carriage data in the current pattern pro-

gram.

PCB Origin Offset Teach The corresponding tab sheet enables the operator to correct

the overall deviations of the placement coordinates.

Place Pos Teach The corresponding tab sheet enables the operator to correct

the deviations of the placement coordinates for each individual

components.

5. "RECOVERY" Window (Submenu)

0308-003 5-25-1
