EPU Instruction Manual Chapter 4 Creating a Production Program
4-55
*

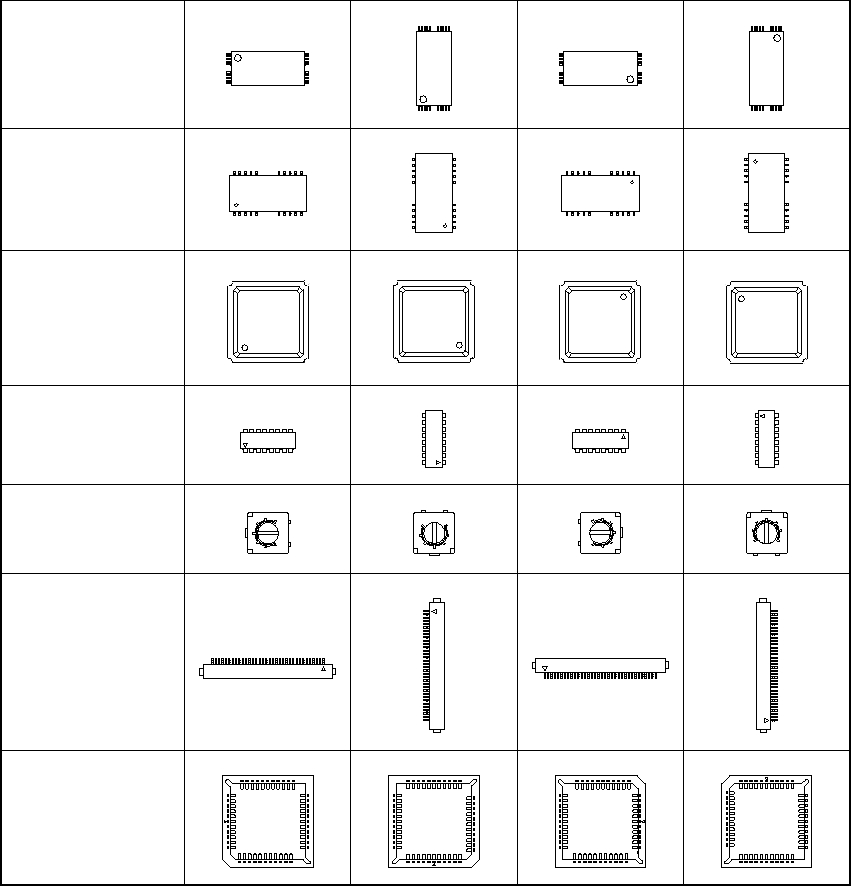

JUKI's definition of the component supply angle
Table shows the definition of the component supply angle 0° and other angles.
For components without polarity, you do not have to distinguish 0° from 180° or 90°
from 270°.
Type of components
0
°
90
°
180
°
270
°
Square chip
Melf
Aluminum
electrolytic
capacitor
GaAsFET
SOT
SOP
HSOP
SOJ
QFP
QFN
QFJ(PLCC)
BQFP(PQFP)
EPU Instruction Manual Chapter 4 Creating a Production Program
4-56
TSOP-1
TSOP-2
BGA
FBGA
Network resistor
Trimmer
One-direction lead
connector
Two-direction lead
connector
Z-lead connector
J-lead socket
Gull-wing socket
Socket with bumper
EPU Instruction Manual Chapter 4 Creating a Production Program
4-57

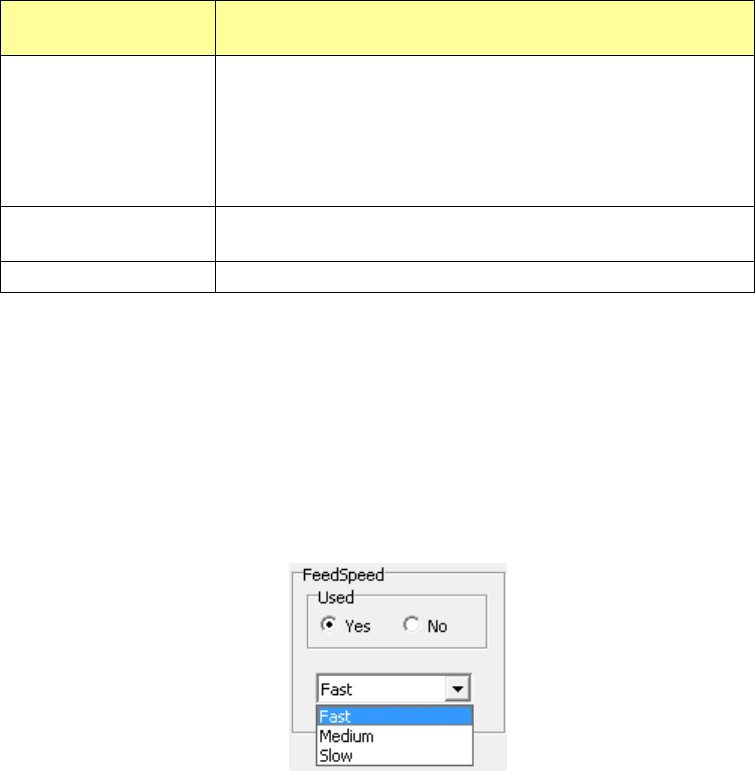

4) Component reject to
Set the component discarding method for a case where centering results in a
recognition error or lead floating inspection results in an error.
Select the component discarding method from the drop-down list in the combo
box.
The discarding methods displayed in the list vary depending on your selection of
the “Tape Width.”
Menu items displayed
in the drop-down list
Description
Trash box • This item can be selected for every component.
Components with 15 mm or less in length/width/height are
discarded at the small-sized component discarding position.
Components other than small-sized and large-
sized components
are discarded at the medium-sized component discarding
position.
Tray return • When Tray is selected for the packaging style, this item can be
selected.
Protect • You can select this item for all component types.
5) Feed Speed
Set a pitch feed speed of the electric feeder.
To change the feed seed, check on the [Yes] check box in the “Setting” area and
select “Fast”, “Medium”, or “Slow” from the drop down list.
If components roll in the cavity as they are fed, this symptom can be controlled by
changing the feed speed.
