EPU Instruction Manual Chapter 4 Creating a Production Program
4-123
⑤ The data you entered on the “Inspection 2” tab of the “Component” data
screen appears on the screen.
Specify a value to which you want to change in the corresponding field, and
click the <Next> button.

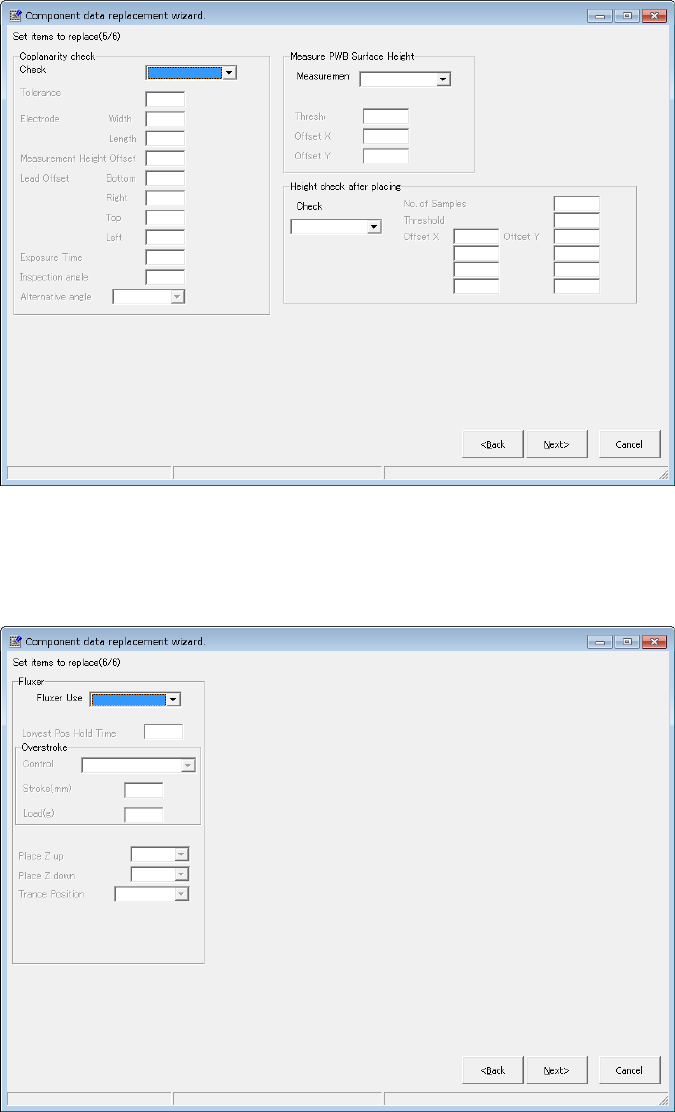

⑥ The data specified on the “Option tab of the “Component” data screen appears.
Enter the desired value in each field, and then click the <Next> button.
EPU Instruction Manual Chapter 4 Creating a Production Program
4-124

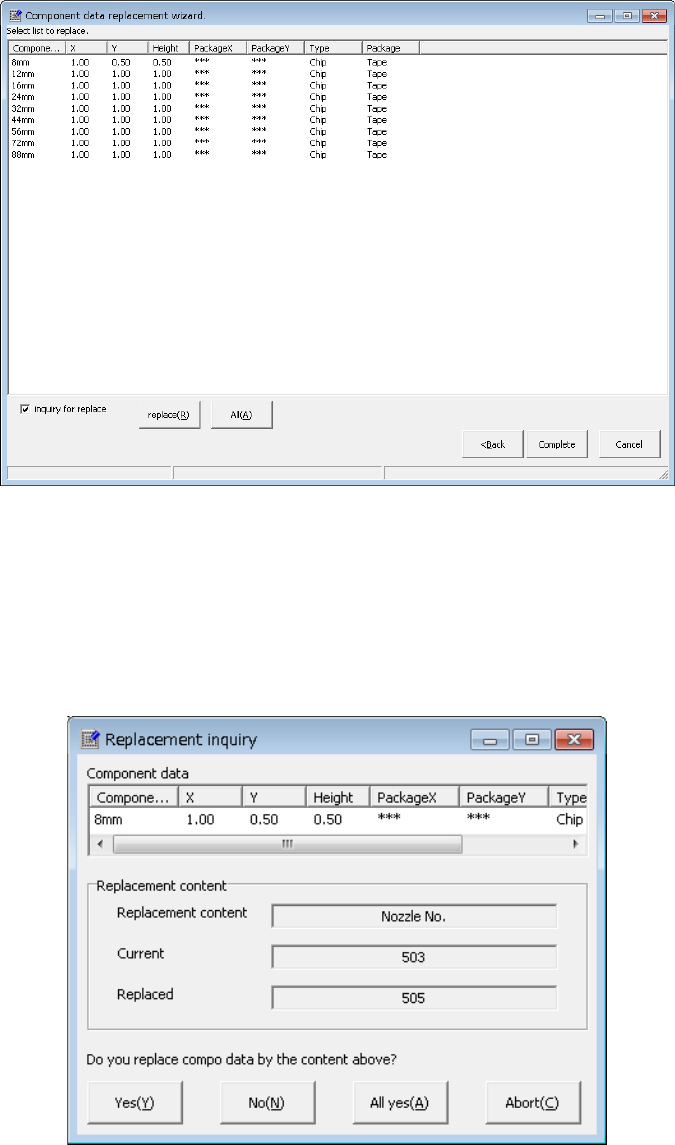

3) List of the selected components
The entered data appears on the screen as shown below.
• <replace>: The system replaces data of the records you selected
one by one.
• <All>: The system replaces all data.
• “inquiry for replace”: When you check this check box, the system displays
the “Replacement inquiry” dialog box every time the
system replace one record of data.
EPU Instruction Manual Chapter 4 Creating a Production Program
4-125
(10) Cel copy
This command registers data of the selected cell (field) in the memory.
This command is effective for the cells “X,” “Y, ” “Angle” and “Component name.”
To paste the registered data into another data, execute the [Cel Paste] command
described below.
(11) Cel Paste
This command overwrites the corresponding item on a line on which the cursor is
located with data registered in the memory with the [Cel copy] command.
You can paste data from the “X,” “Y” or “Angle” cells (fields) in the same type of cell
only.
(12) Change component name
This command changes a component name.

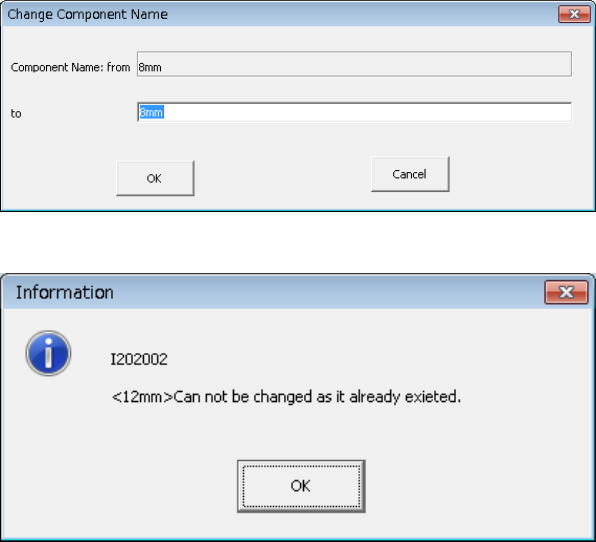

When you select this command, the following dialog box appears on the screen.
Enter a new name to the “to” field, and click the <OK> button.
If the changed component name is duplicate with another component name, the
following message is displayed.
(13) Update layers
The layer of "Component data" is incorporated into "Placement data." The
following incorporating methods are available.
All components: The layer of all component data is incorporated into the
incorporating data.
Each component: The layer of the corresponding component data is
incorporated into the placement data.
