EPU Instruction Manual Chapter 4 Creating a Production Program
4-106
4.2.2 Executing the Optimization function

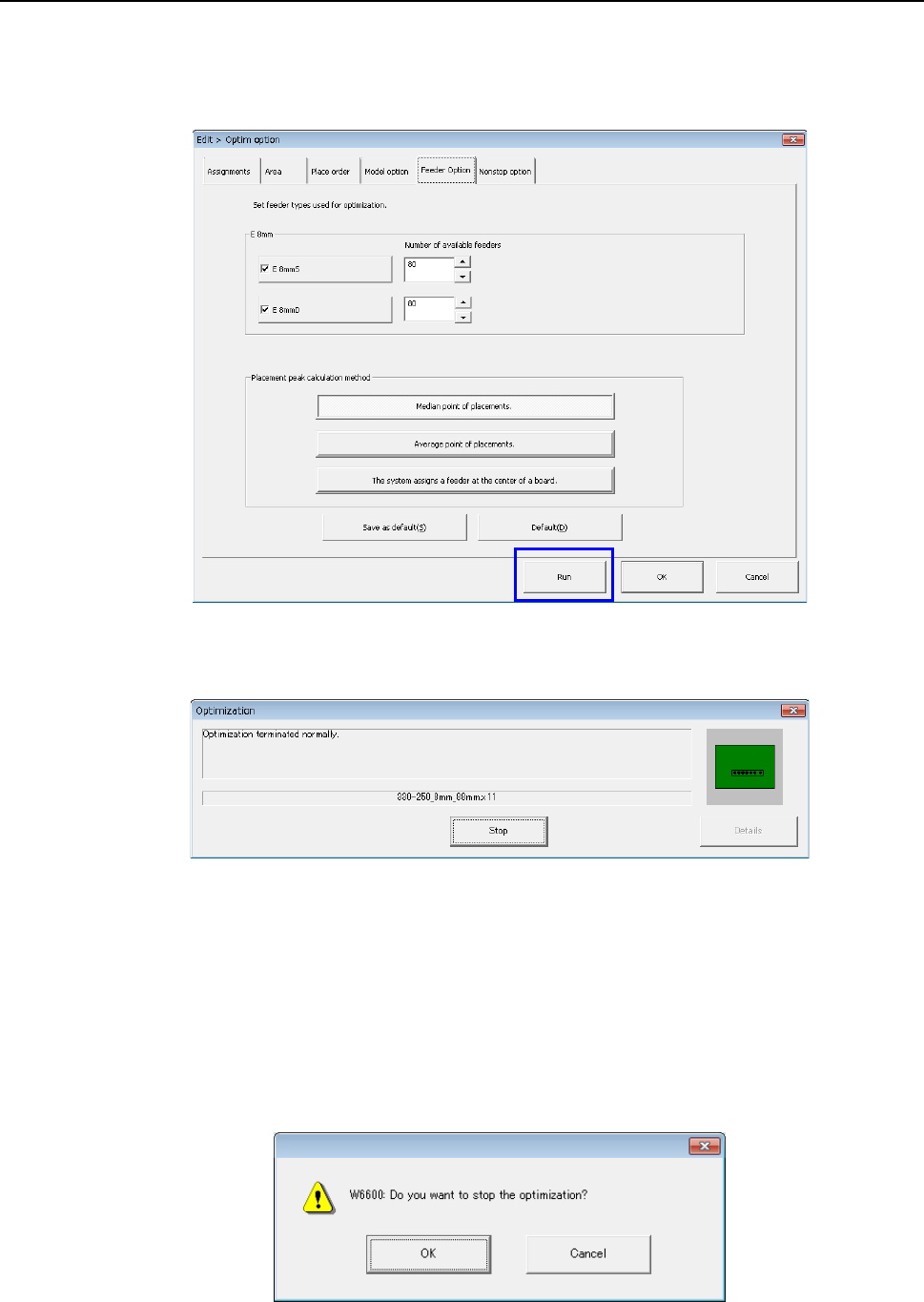

When you click the <Run> button on the “Optimization” conditions setting screen, the
system starts the optimization process.
The following screen is displayed while optimization is executed.
When the system finishes the Optimization function normally, the “Optimization” screen
disappears.
If an error occurs during optimization, the corresponding error message appears on the
screen.
When you click the <Stop> or <Skip> button during optimization, you can stop the
optimization.
The following confirmation message appears on the screen.
EPU Instruction Manual Chapter 4 Creating a Production Program
4-107
4.2.2.1 Checking the divided component placement data
This section describes how to display the placement data divided with the Optimization
function.

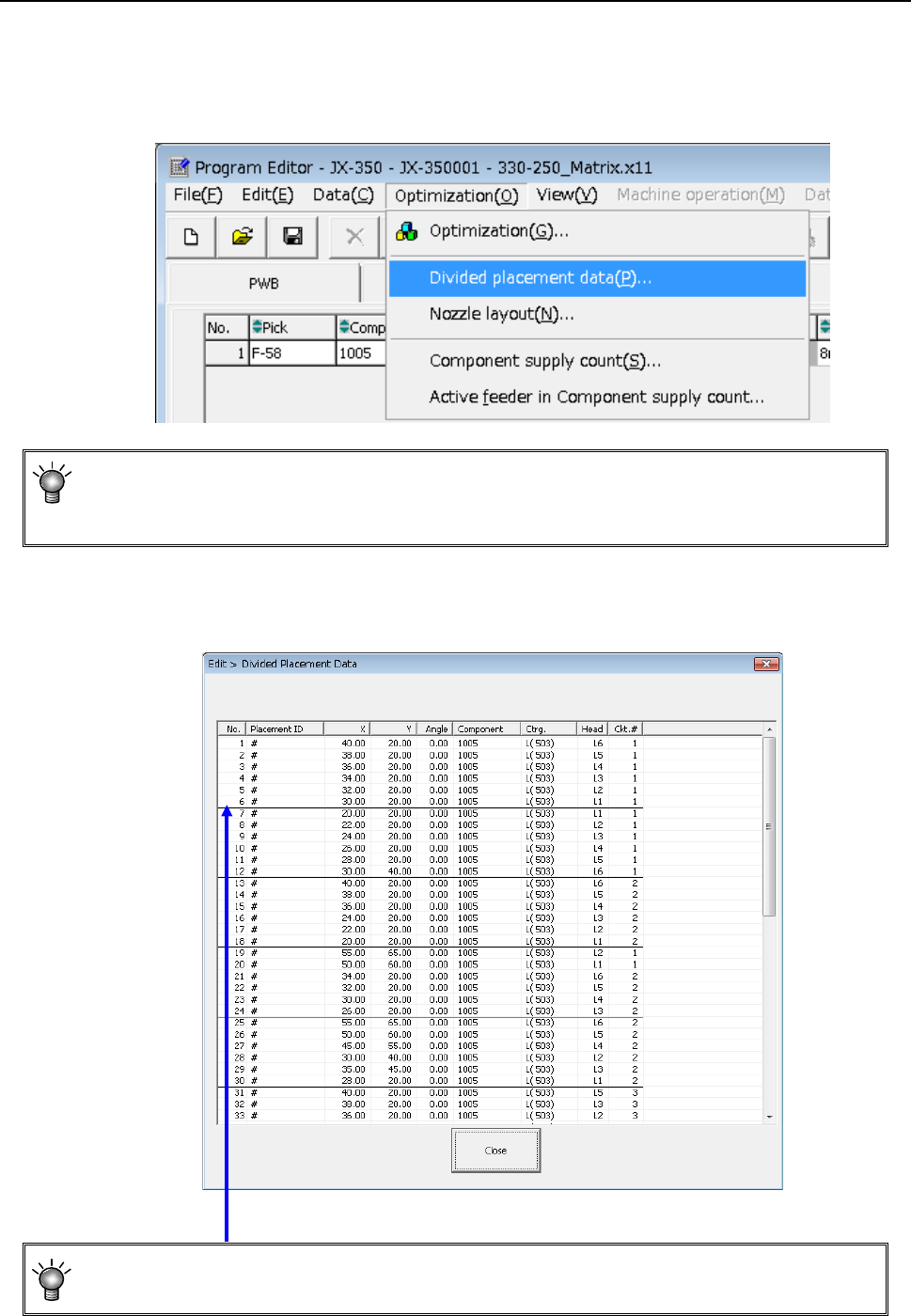

Select the [Optimization] command from the menu bar, and then the [Divided [Placement
Data] command from the “Optimization” menu.
• You cannot select this command if you have not performed the Optimization function
(that is, there is no divided placement data file), or if you edit a production program
after executing the Optimization function.
The window like the one shown below appears on the screen.
• A bold line on the “Divided Placement Data” screen in the optimized order indicates a
delimiter of data paired during one component pick-up and placement cycle.
EPU Instruction Manual Chapter 4 Creating a Production Program
4-108
4.2.2.2 Nozzle layout
The [Nozzle layout] command displays the nozzles assigned to each station with the
Optimization function.
When you specify “Auto arrange nozzles” in the “Nozzles” field of the “Assignments”
option screen, check the result on the following screen, and set nozzles so that the
nozzles can be assigned in the same way specified on the “Machine setup” menu.

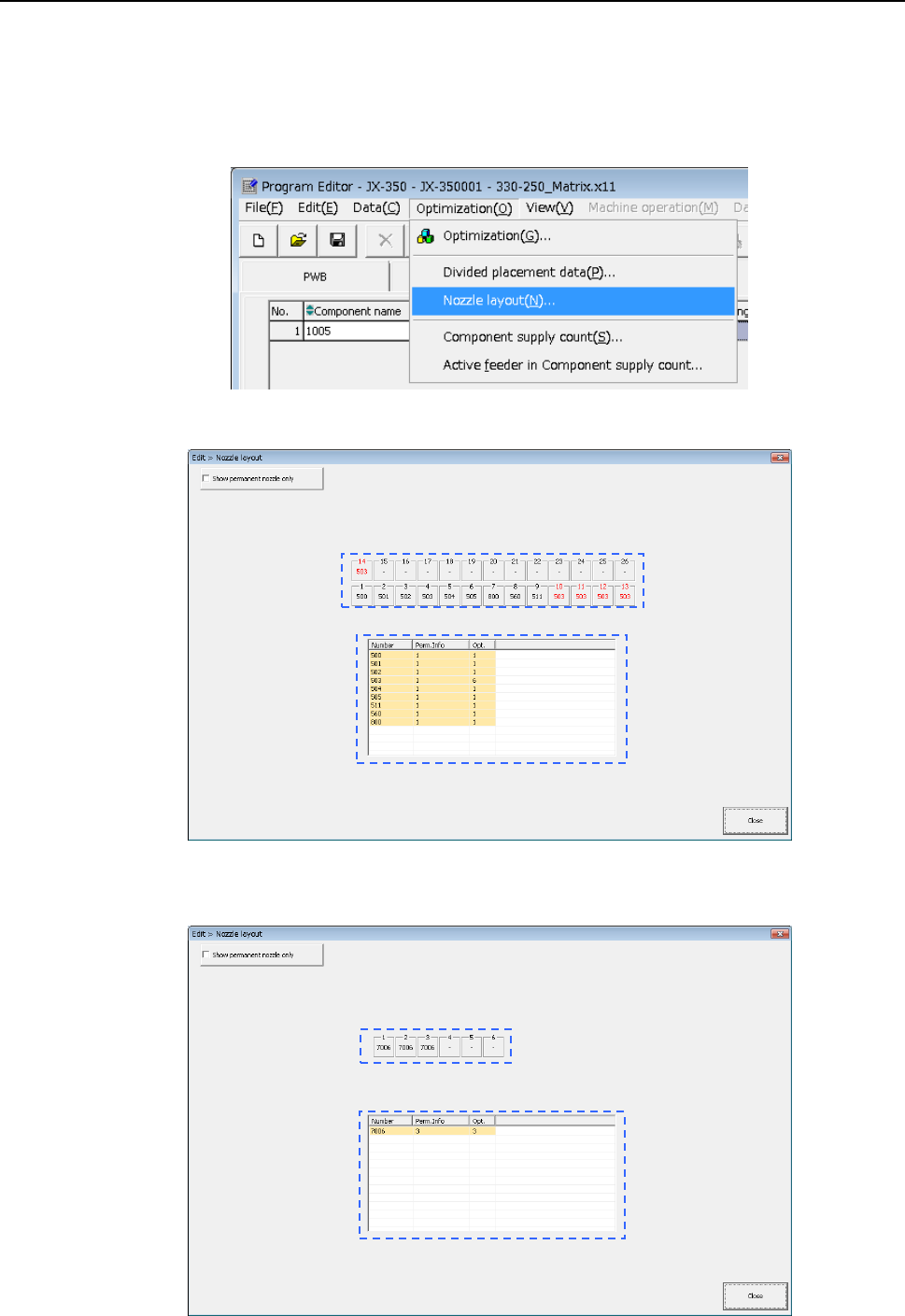

Select the [Optimization]/[Nozzle layout] commands from the menu.
The following “Nozzle layout” screen appears.
When the “Screw type nozzle” option in the “EPU setup” menu is enabled, the following
screen appears.
