EPU Instruction Manual Chapter 4 Creating a Production Program
4-84
4.1.5 Pick data
This “Pick” data screen allows you to specify where a component is supplied and where it
is picked up.
The component feed units provided in the feeder bank are a tape feeder, stick feeder,
bulk feeder, and tray holder. The other component feed unit is MTS.
Additionally, there are two kinds of feeder banks, mechanical feeder bank and electric
feeder bank. The mechanical feeder bank uses the mechanical feeder while the electric
feeder bank uses the electric feeder.
For the mechanical feeder bank, there are 79 holes in one feeder bank intended to set the
feeder. The number of a hole, into which the pin at the top end of the feeder is inserted,
becomes the feeder number assigned to the feeder.
For the electric feeder bank, there are 40 rails on one feeder bank.
The number of a rail, onto which the feeder is mounted, becomes the number assigned to
the pick data.
* In the feeder bank, numbers are expressed in 2 upper and lower rows.
On the front side, the upper-row numbers are those for feeder settings.
<Mechanical feeder bank> <Electric bank>
* The component pick-up position is automatically assigned with the Optimization
function, but you have to manually assign the pick-up position in the following cases
• when the feeder layout is fixed, or
• when you change the feeder layout after optimization.
Note: If you load a production program file created with another model, the system may
recalculate the component pick-up coordinates set as the Pick data mainly because
the reference coordinates vary depending on the model.
EPU Instruction Manual Chapter 4 Creating a Production Program
4-85
4.1.5.1 “Pick” data screen display

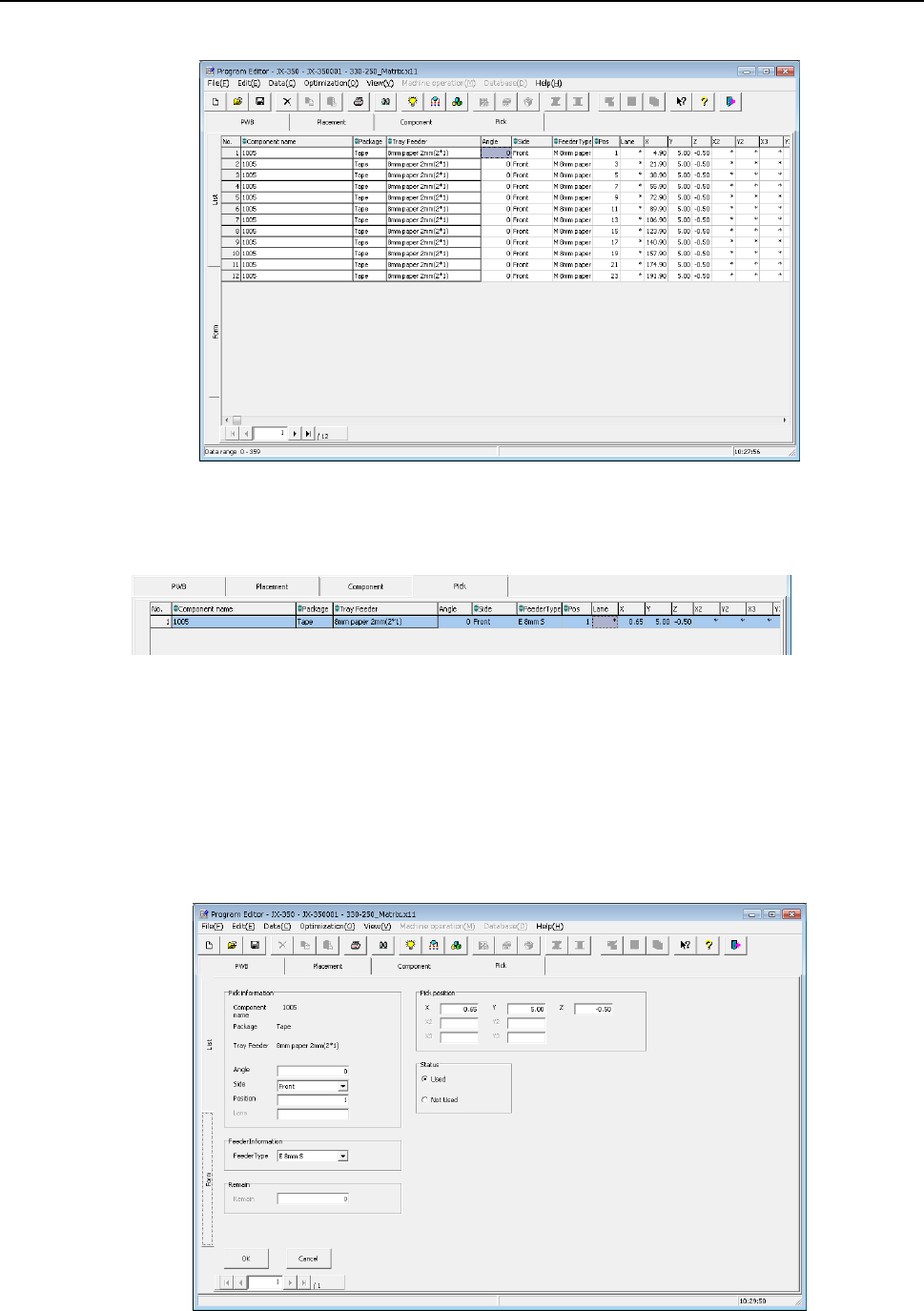

When you display the “Pick” data screen, the “List” screen opens at first.
When the electric-powered feeder is used, the following items are displayed in light blue
on the list screen.
When you select the “Form” tab on the “Component List” screen or double-click the
“Component List” screen, the “Component Form” screen appears showing the
corresponding data on the line where the focus is located.
Values you entered on the “Placement” and “Component” data screens are displayed in
the fields of “Component name,” “Package” and a feeder unit respectively.
You can edit the eight items, “Angle,” “Side,” “Position,” “Lane,” “Pick position”, “Status”,
“Feeder Type” and “Remain” on the “Form” screen.
EPU Instruction Manual Chapter 4 Creating a Production Program
4-86
The range of occupied mounting holes of the feeder bank varies depending on the width
of the tape feeder.
Tape feeder/bulk feeder type
Number of the occupied feeder
mounting holes
8mm
2
12mm
3
16mm
3
24mm
4
32mm
5
44mm
8
56mm
8
72mm
10
Bulk feeder
2
Therefore, up to 40 8-mm tape feeders can be installed on one feeder bank, while up to
16 32-mm tape feeders can be installed on one feeder bank.
* An 88-mm tape feeder is provided in response to your customization order only.
Electric feeder type
Number of occupied feeder mounting
rails
8-mm single (8mm S)
1
8-mm double (8mm D)
1
12mm
1
16mm
2
24mm
2
32mm
3
44mm
3
56mm
4
72mm
5
Therefore, up to 40 8-mm single electric feeders can be installed on one feeder bank.
Caution:
Any component whose size is equal to that of a 0402 component cannot be
used with an electric double tape feeder.
If you specify
“8 mm” in the “Feed Pitch” field of the “Component” data screen,
you cannot specify an electric double tape feeder.
