EPU Instruction Manual Chapter 5 Database
5-10
5.1.3.4 Jump

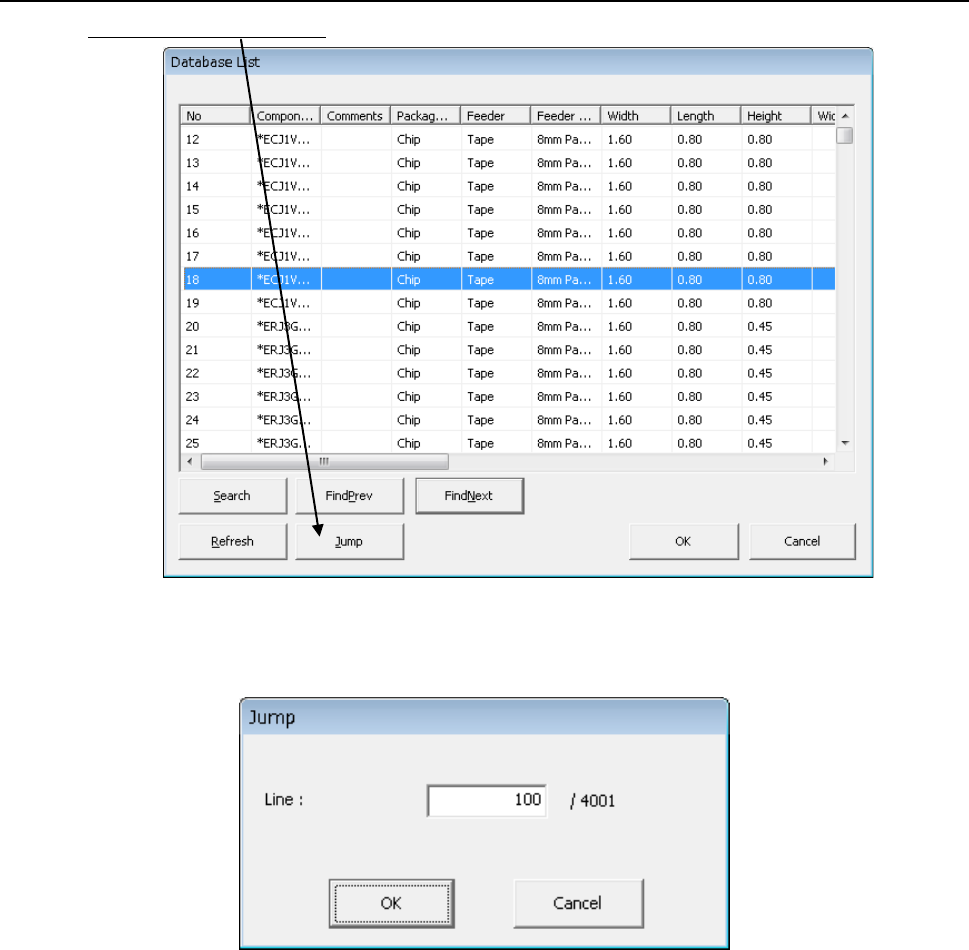

Click the <Jump> button on the screen.
The following screen appears. Enter the record number of component data to which you
want to jump.
When you click the <OK> button, the system jumps to the specified record number of
component data
EPU Instruction Manual Chapter 5 Database
5-11
5.1.4 ReSearch
This [ReSearch] command re-searches the database or permanent information for
Component data, Pick data of a production program to update data of the program.

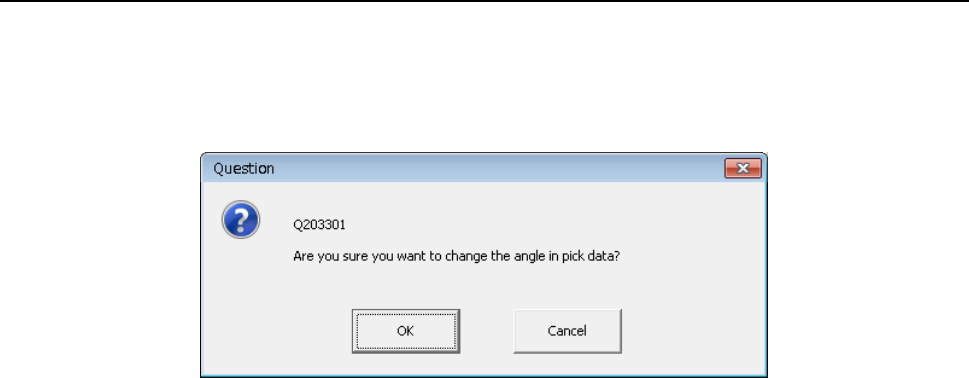

When you click the [ReSearch] command, the message like the one shown below appears
on the screen.
- When you select the <OK> button, the system updates all component pick-up angles.
- When you select the <Cancel> button, the system does not update the angle(s) set in the
Pick data.
EPU Instruction Manual Chapter 6 Supplementary Information for Creating a Production Program
6-1
Chapter 6 Supplementary Information for Creating a
Production Program
6.1 Examples of component dimensions
•
Square chip
•
MELF
•
Aluminum electrolytic capacitor
Dimensions (horizontal)
Dimensions (Vertical)
Component height
Dimensions (horizontal)
Dimensions (Vertical)
Component height
+ side
– side
Lead width
Component height
Dimensions (horizontal)
Dimensions (Vertical)
Lead length
Lead length
Lead length
Dimensions
