EPU Instruction Manual Chapter 4 Creating a Production Program
4-129
(1) When you select the [Production program copy] command from the “Edit”
menu, the [Open File] screen appears on the screen.
(2) Select a destination production program, and then press the <Open> button.
Combinations of reference production program file formats that can be copied and the
destination production program file formats are shown in the table below. Note that
you cannot select any other combination to copy a production program.
Combinations of reference production program file formats that can be copied and the
destination production program file formats are shown in the table below. Note that
you cannot select any other combination to copy a production program.
Model name
File format of a reference
production program
File format of a destination
production program
JX-350 JX-350 format file (x11) JX-350 format file (x11)
The same file version as the reference side
CAUTION
EPU Instruction Manual Chapter 4 Creating a Production Program
4-130

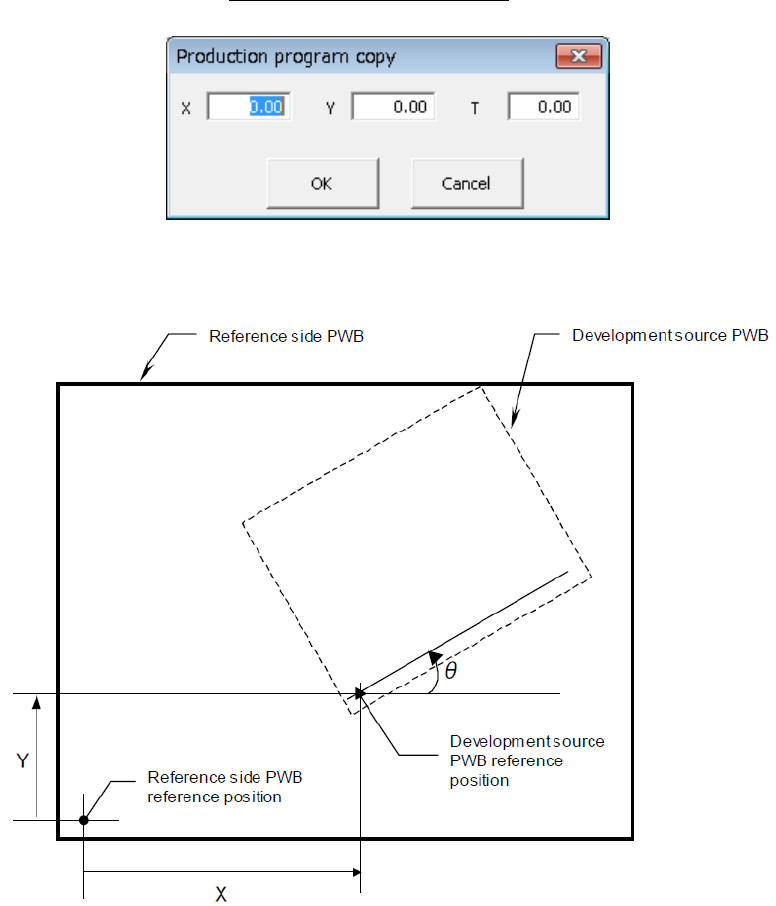

When you load a production program to the system, input screen like the one shown
below that allows you to enter an offset to the reference board position appears on
the screen. Follow the definitions of the offset value described below to enter an
offset value.
The definition of an offset value is shown in the figure below.
EPU Instruction Manual Chapter 4 Creating a Production Program
4-131
4.3.1.2 Functions provided on the “List” screen
Each “List” screen provided with the Program Editor utility allows you to change the cell
width or sort data.
(1) Changing the cell width of the “List” screen
On the “List” screen such as the Placement data screen, you can change the width of
a cell.
When the mouse cursor is a cross-hair cursor, move the cursor around the boundary
of the column header cell (that displays the item name). The cursor shape changes
from the cross hair to the left-and-right arrow. Drag the cursor to change the width
of the cell.
Note that the width of cells that are always displayed on the screen even though you
scroll the screen such as the “Component name” and “Component type” cells is fixed
and cannot be changed.
Drag the cursor when its shape changes from the cross hair ( ) to the
left-and-right arrow ( ).
The width of a cell located on this
area cannot be changed.
