EPU Instruction Manual Chapter 5 Database
5-4
(4) Changing the associated component data only without changing a component
name
When you execute the [CallList] command on the “Component” data screen, the system
changes the associated component data only.
<Procedure>
① Display the “Component” data screen.
② Select a name of a component whose data is to be changed from the “Component
list.”
③
Click the [Database]/[CallList] commands.
④ Select the name of a component whose data you want to register in the component
data from the component list of the database, and click the <OK> button.
EPU Instruction Manual Chapter 5 Database
5-5
5.1.2 Register
This command registers component data of a production program in the database record
by record on the “Program Editor” screen.
<Procedure>
① Open the “Component” data screen with the “Program Editor.”

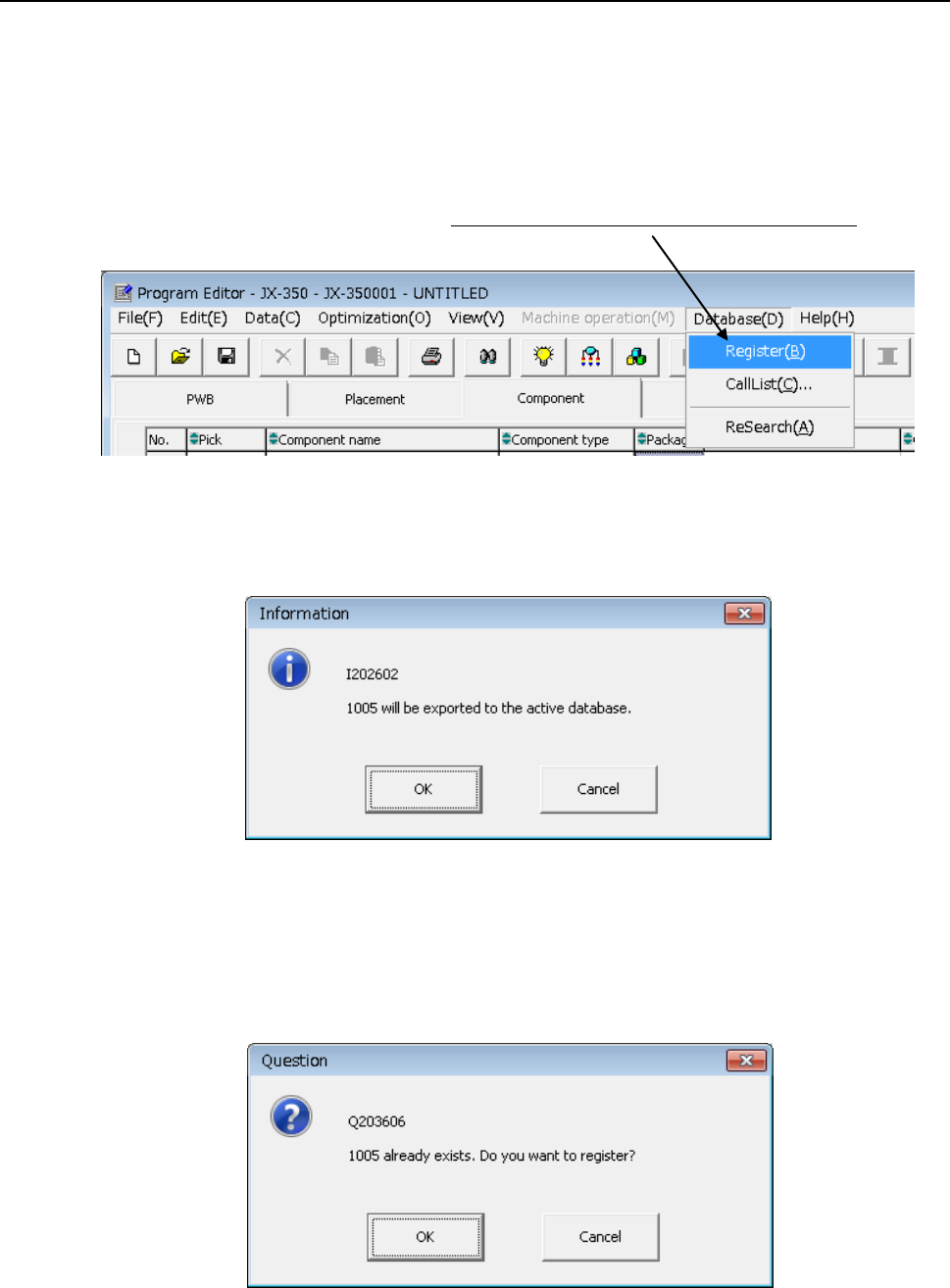

②
Select a component to be registered (with clicking a line of the desired component on
the “List” screen, for example), and click the [Database]/[Register] commands.
③ The following dialog box appears on the screen. When you press the <OK> button,
the system registers data in the database.
When a component with the same name is already registered, the following message
dialog appears.
Click <OK> to overwrite the component data; click <Cancel> not to overwrite it.
EPU Instruction Manual Chapter 5 Database
5-6
When the following error message is displayed, the component data of the database is
associated.
For details, refer to the instruction manual of the production support system.
If you select “Yes” for the menu item “Notify when data into DB” on the “Environ-
ment setting” screen, the following message appears on the screen when the system
finishes registering data into the database.
If you select “No” for the menu item “Notify when data into DB” on the “Environ-
ment setting” screen, the “Information” message shown above does not appear on the
screen.
• The system registers component data in the database sequentially according to
each component name.
• The database in which the system registers data is the database specified with
the “Environment Setting” (See Section 4.3.2 “Environment setting”).
