EPU Instruction Manual Chapter 4 Creating a Production Program
4-120
(9) Replacement
This command replaces a value in each field on the "Packaging style", "Centering",
“Pick Condition,” “Place Condition” “Inspection1,2” and “Option” tabs of the
“Component” data screen for all specified components with the specified value by one
operation.
1) Setting the conditions for replacing data
When you select the [Replacement] command on the “Edit” menu, the following
“Component data replacement wizard” starts up.
Specify the conditions for replacing data of components, and click the <Next>
button.
The conditions you can specify are shown below.
1 Comment
Specify the comment. When an input character string exists in the comment,
the record is to be replaced.
2 Type
You can specify up to four component types. If you specify two or more
component types here, the system will search through all the specified types of
components to replace their data.
If you specify no component type, the system searches through all components.
3
Component
Size
Specify the maximum and minimum length, width and height of a component.
If you omit these fields, the system automatically sets the maximum and
minimum values that can be entered.
4 Nozzle No.
Specify up to three types of nozzles here.
If you specify two or more types of nozzles here, the system searches through
all components whose nozzles are specified here.
If you specify no nozzle type, the system searches through all components in
order to replace their data.
5 Package
Specify the packaging style of a component. If you do not specify any
package, the system searches through components of all types of packages in
order to replace their data.
6 Centering
Specify the component centering method.
If you do not specify any centering method, the system searches through
components of all types of centering methods in order to replace their data.
7
Package
Size
Specify the maximum and minimum package of a component. If you omit
these fields, the system automatically sets the maximum and minimum values
that can be entered.
EPU Instruction Manual Chapter 4 Creating a Production Program
4-121
2) Setting a value to be replaced with

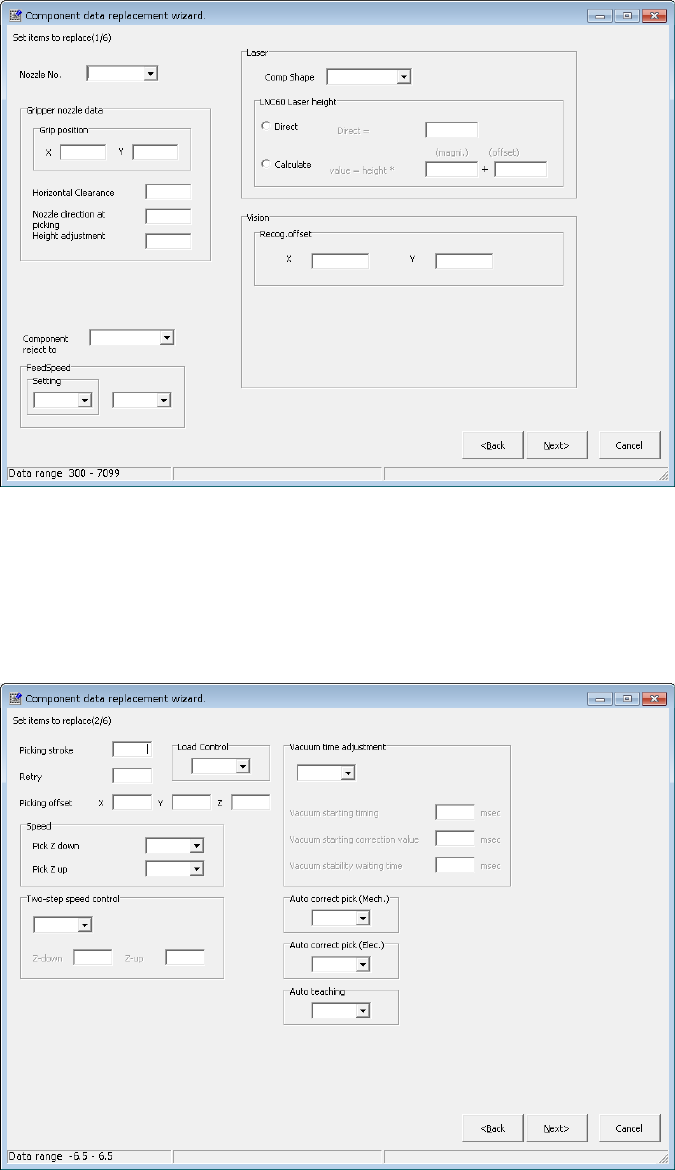

① The data you entered on the “Centering” tab of the “Component” data screen
appears on the screen.
Specify a value to which you want to change in the corresponding field, and
click the <Next> button.
② The data you entered on the “Pick Condition” tab of the “Component” data
screen appears on the screen.
Specify a value to which you want to change in the corresponding field, and
click the <Next> button.
