EPU Instruction Manual Chapter 3 EPU setup

3-11

3.6.3 Setting the unit type

Specify the unit to be used for editing data on the EPU screen.

Set the length and pressure unit systems here. According to these settings, EPU displays

or allows you to enter data on the screen.

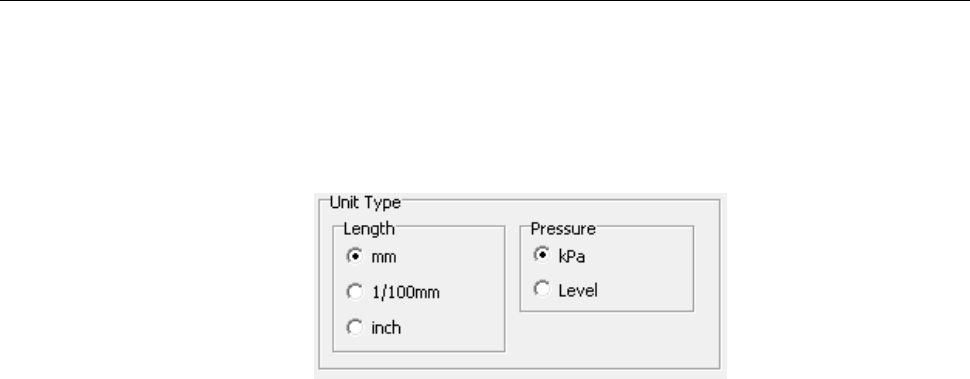

[Unit type displayed on the screen]

- Length: This setting will be reflected through all of data on length such as XYZ

coordinates and board size to be displayed or entered on the EPU screen.

(Default: mm)

- Pressure: This setting will be reflected through all of data on pressure such as

component pick-up vacuum pressure to be displayed or entered on the EPU

screen. (Default: kPa)

EPU Instruction Manual Chapter 3 EPU setup

3-12

3.7 Setting a Station Profile

This command makes settings such as the board transport direction, reference side,

permanent nozzle and various options so that the environment of a production program can

be set to the same as that of the machine you are to operate actually.

3.7.1 Basic settings

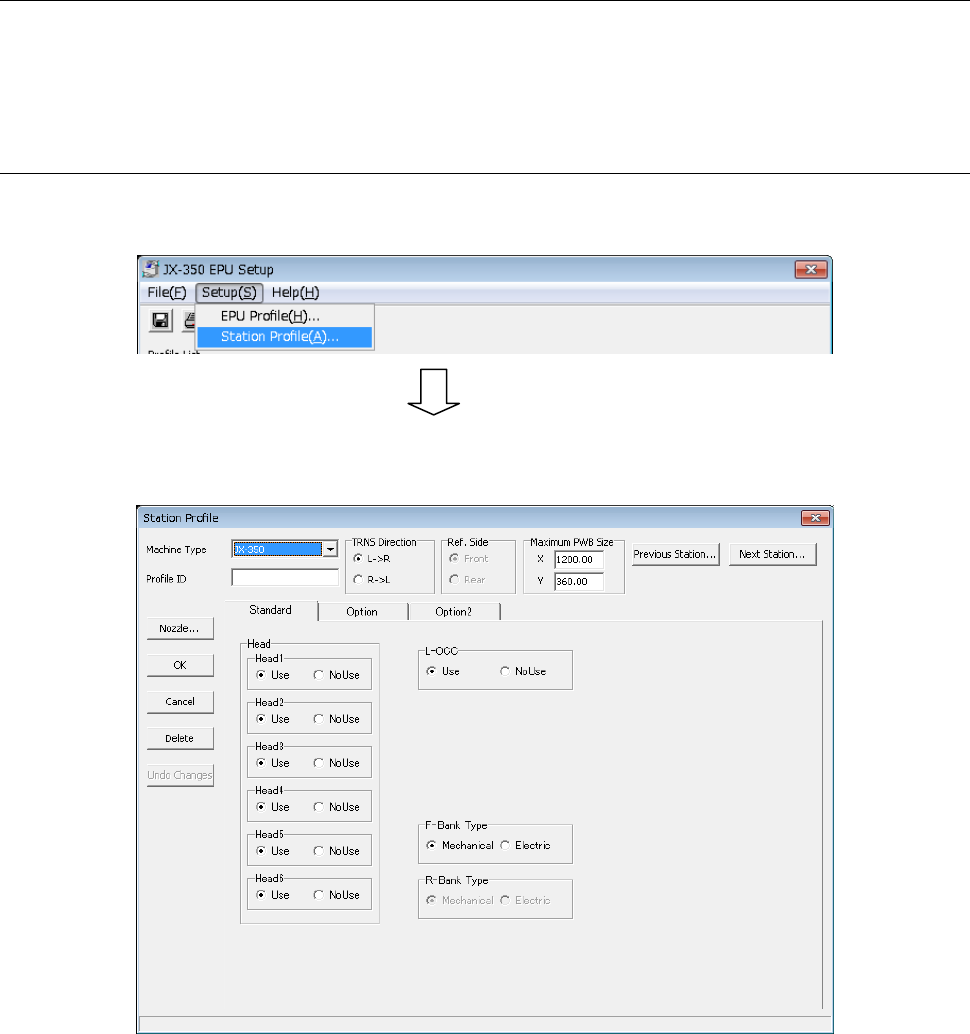

Select the [Station Profile] command on the “Setup” menu provided with the EPU Setup

module

◊

Set the station conditions on this screen. The number of profiles you can set is up to

36.

EPU Instruction Manual Chapter 3 EPU setup

3-13

3.7.1.1 Specifying the Machine Type

Specify the machine type of the station.

Select the appropriate type from the pull-down list box.

You can select only the model corresponding to the EPU protect module that is

attached to the personal computer. Note that you cannot select any model whose

corresponding EPU protect module is not attached to the personal computer.

♦ Be sure to set the machine type of the station.

If you do not specify any machine type, the following message appears on the screen.
