4.2.2.3 Feeder layout
The [Feeder layout] command displays the feeder layout specified on the “Pick” data
screen graphically.
When you click the [Display]/[Feeder layout] commands from the menu, the following
“Feeder layout” window appears on the screen.
(1) “Feeder layout” window
1) When you move the trackball over the figure of a feeder displayed on the “Feeder
layout” window, part of the Component data for the corresponding feeder is
displayed on the screen.
As the feeder information, a component pick-up position, a component supply unit,
a component name, a number of a nozzle used for picking up a component and
the quantity of components (when optimized) are displayed on the screen
All centering methods specified on the “Component” data screen appear as the
“Centering method (nozzle number).” Although the centering method (nozzle number)
that cannot be handled with a certain model appears on the screen, the Optimization
function assigns the centering methods (nozzle numbers) that can be handled with the
model.
EPU Instruction Manual Chapter 4 Creating a Production Program
4-111
(2) Editing data on the “Feeder layout” window
You can edit the feeder layout with a mouse on the “Feeder layout” window.

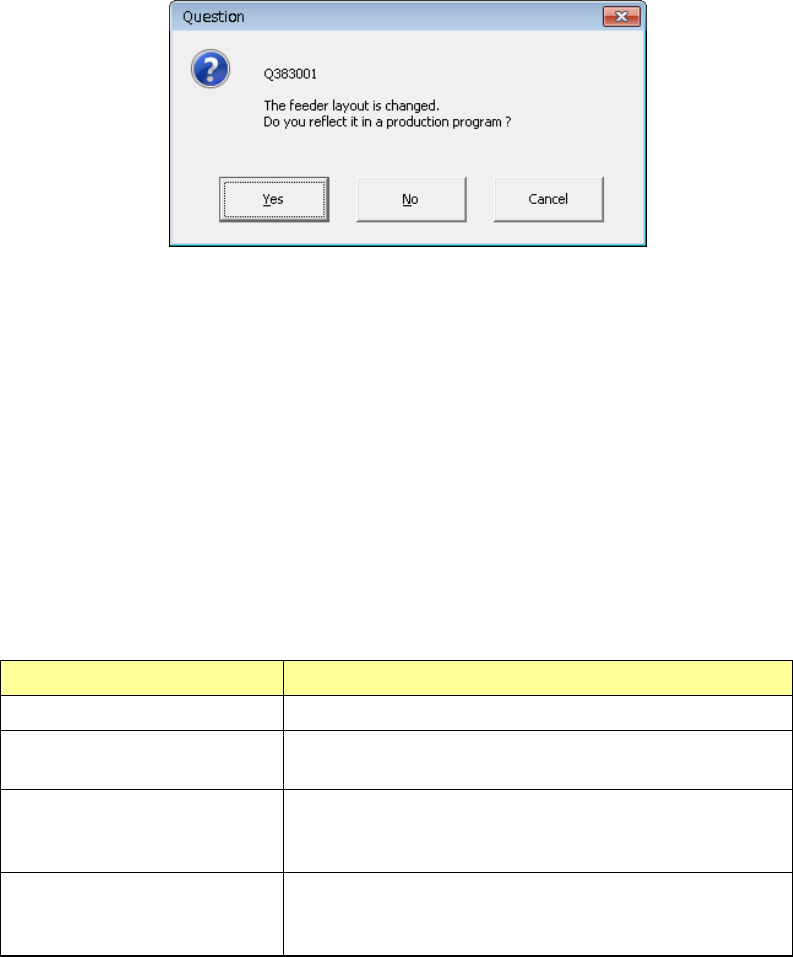

After editing the feeder layout and closing the “Feeder layout” window, the following
message appears on the screen that asks you whether to incorporate your editing to
the program.
•
Yes: Incorporates your change(s) into the program data, and quits the
“Optimization” screen. The Pick data is changed according to your
editing.
•
No: Quits the “Optimization” screen without saving your change(s).
•
Cancel: Returns to the screen that allows you to select a feeder layout.
1) Selecting a feeder
Before moving, coping or deleting a feeder, select the feeder whose layout you
want to edit. The selected feeder appears in the way that you can distinguish it
from others clearly. The system provides you with the following ways for
selecting a feeder.
Operation Result
Click a feeder. The clicked feeder is selected.
Drag a mouse to surround a
feeder.
Feeders in the rectangle that is created with your drag
operation are selected.
Point a feeder with holding
down the “CTRL” key.
If any feeder is already selected, the selected feeder(s) and
feeders pointed while you are holding down the “CTRL” key
are all selected.
Point a feeder with holding
down the “SHIFT” key.
Feeders located between the feeder you selected for the
first time and feeders pointed while holding down the
“SHIFT” key are all selected
EPU Instruction Manual Chapter 4 Creating a Production Program
4-112
2) Feeder movement/copy
After selecting a feeder to be moved, drag it to the destination and release it (by
releasing the button).
A At this time, check off the [Copy] button. Then, the selected feeder is copied.

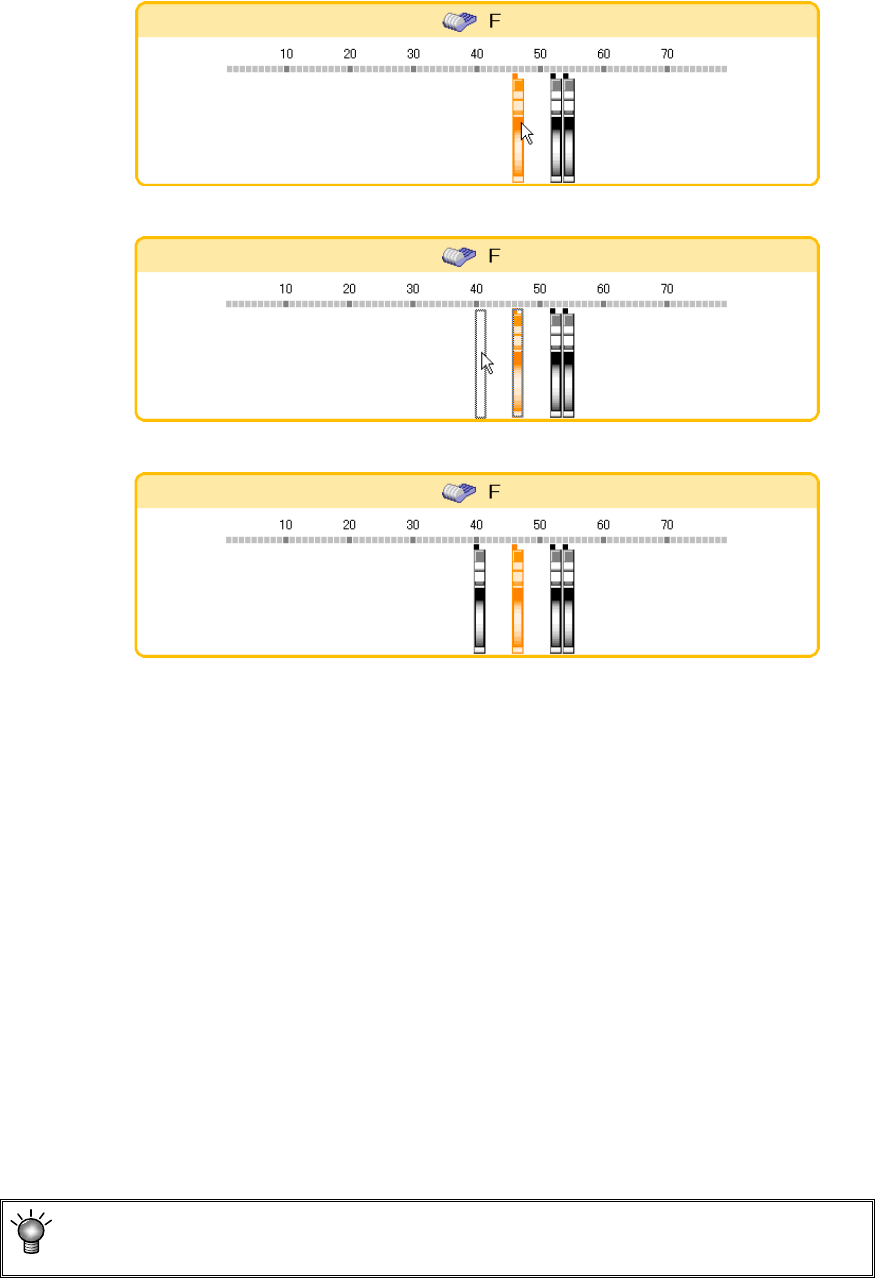

Click a feeder
Drag a feeder
Drop a feeder
3) Feeder deletion
In the feeder selection status, press the [Delete] button to delete the feeder.
4) Stick component duplication
When there is no stick in the duplicating destination, a stick feeder of the same
type is newly assigned. Components are assigned to lane 1. The stick feeder
is mounted at the position closest to the duplicating destination in which an
assignment area can be secured. Duplication can be performed between stick
feeders of the same type.
5) Stick changer component duplication
When there is no stick changer in the duplicating destination, a stick changer of
the same type is newly assigned. Components are assigned to lane 1. The
stick changer is mounted at the position closest to the duplicating destination in
which an assignment area can be secured.
When the rear feeder option in the “EPU setup” menu is disabled, the movement from
the front to the rear and copy cannot be performed.
