EPU Instruction Manual Chapter 3 EPU setup
3-8
3.6 EPU Profile
This command allows you to set the EPU environment: that is, specify the unit system to be
used for displaying/entering data, the directory for a production program and a database file.
◊
Select the [EPU Profile] command from the “Setup” menu provided with the EPU Setup
module.
* If you have edited the EPU profile, that EPU profile data is loaded, then displayed on
the screen.
◊
When you select the [EPU Profile] command, the following dialog box appears on the
screen.
Set the unit system, directory for a production program, and directory for a database file.
Each setting item and its description are as follows:
There are options which set the related information on a dialog box. After setting all of
the required information, select the <OK> button for executing the command.
EPU Instruction Manual Chapter 3 EPU setup
3-9

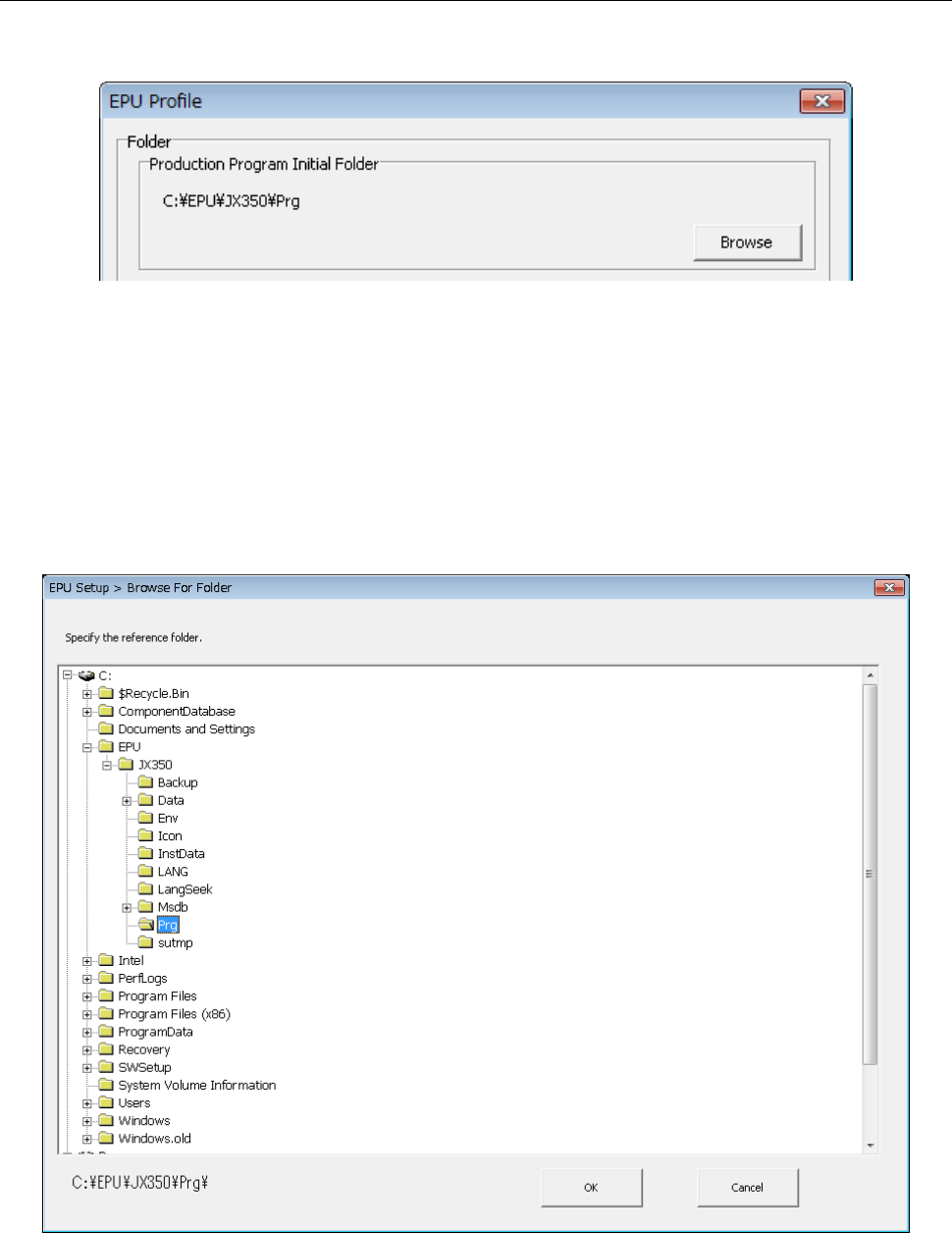

3.6.1 Specifying a production program folder
Specify a folder in which a production program used with EPU is stored.
Up to 64 characters of path name can be specified.
This specifies a folder in which a production program is saved.
When you press the < Browse > button on the folder specification screen, the reference
dialog of the folder is displayed.
When a production program is loaded with the Program Editor, the folder you set here is
searched with the Program Editor.
The default initial folder is set at installation of EPU. However, this is not fixed, and you
can specify a production program in another folder with the [Open] command provided
with the Program Editor.
EPU Instruction Manual Chapter 3 EPU setup
3-10

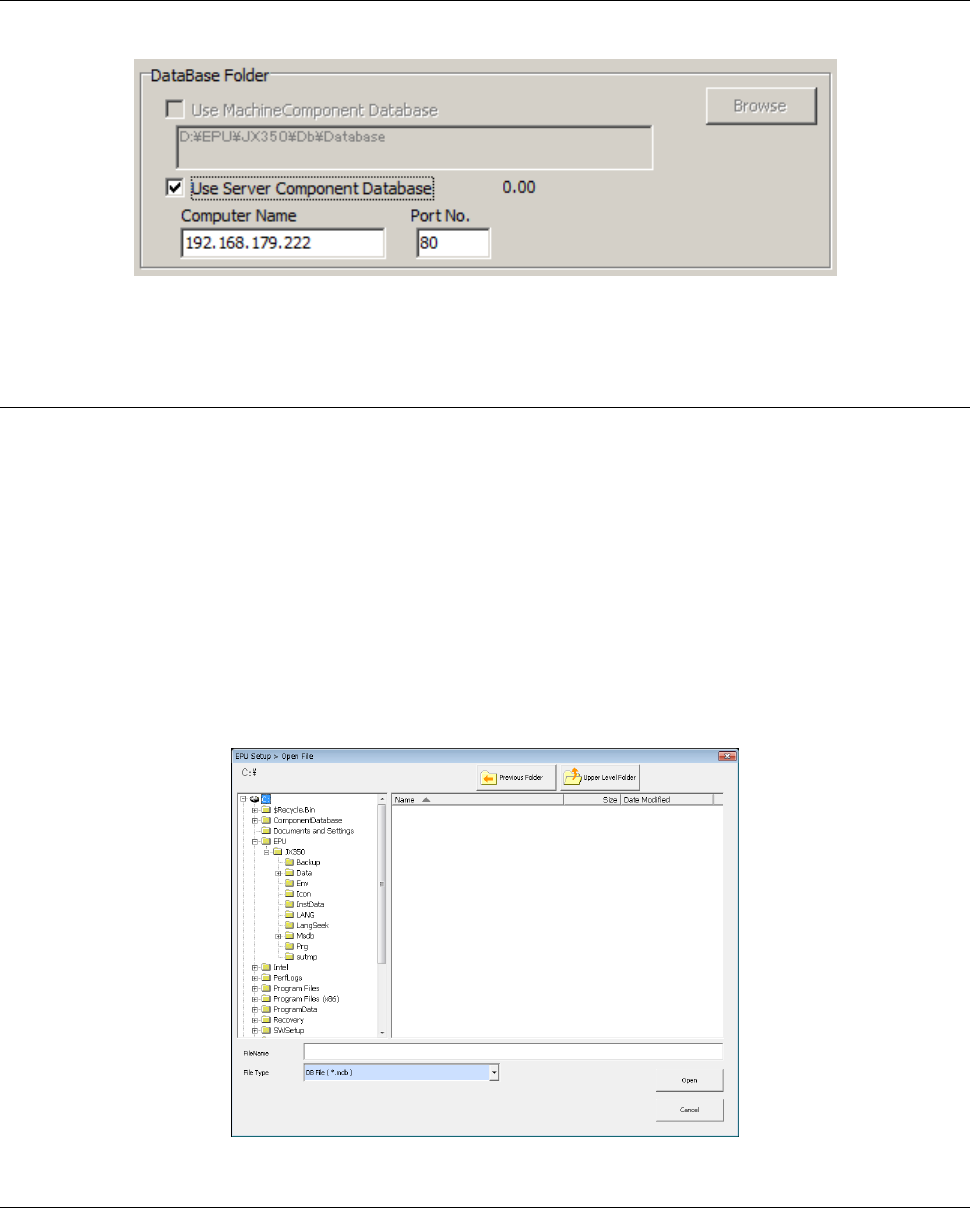

3.6.2 Specifying a database
Select a database you want to use it for the program edit.
Note that you cannot select [Use Server Component Database] unless the component
database is installed.
3.6.2.1 Component DB
Check on [Use Component Database] when you use Flexline database.
When you check on [Use Flexline Database], you can select a database file you want to
use.
The database folder is a folder created by Flexline database.
Specify the full path including a drive name as the name of a database folder.
Its extension should be “mdb”, and you cannot specify another extension:
if you specify another extension, it is replaced with “MDB” automatically.
♦ Check on a radio button in the “DataBase Folder” area and click [Browse].
The following dialog box will appear.
In this dialog box, specify a folder and a file.
When the EPU Profile screen appears, click the <OK> button.
3.6.2.2 Server Component DB
It is set when using server Component DB.
It can be used by setting the IP address or PC name and port number of the server on
which the Component DB of the production support system is installed.
