Chapter 5 Database
A “database” is used to register and collect component data.
After you register the created component data in the “database,” the system manages the
data by component names.
Once you register component data in the database, you can easily create component data
only by specifying the component name registered in the database when creating a
production program with the Program Editor.
This chapter describes how to use a database mainly.
・ For details on how to operate more information, please refer to Chapter 5,
"Database" of the machine "Instruction Manual CD".
・In the case of using the server parts DB, the part database is managed on the server
side of the production support system.There are places where specific items are
displayed.
5.1 Component Database
5.1.1 How to Use a Database
After starting up the Program Editor, use a database to create component data.
(1) If you know a component name
If the name of a component whose data you want to create is registered in the database,
enter the component name on the “Placement” data screen.
The system will register the data created for the component in the production program
that is being created.

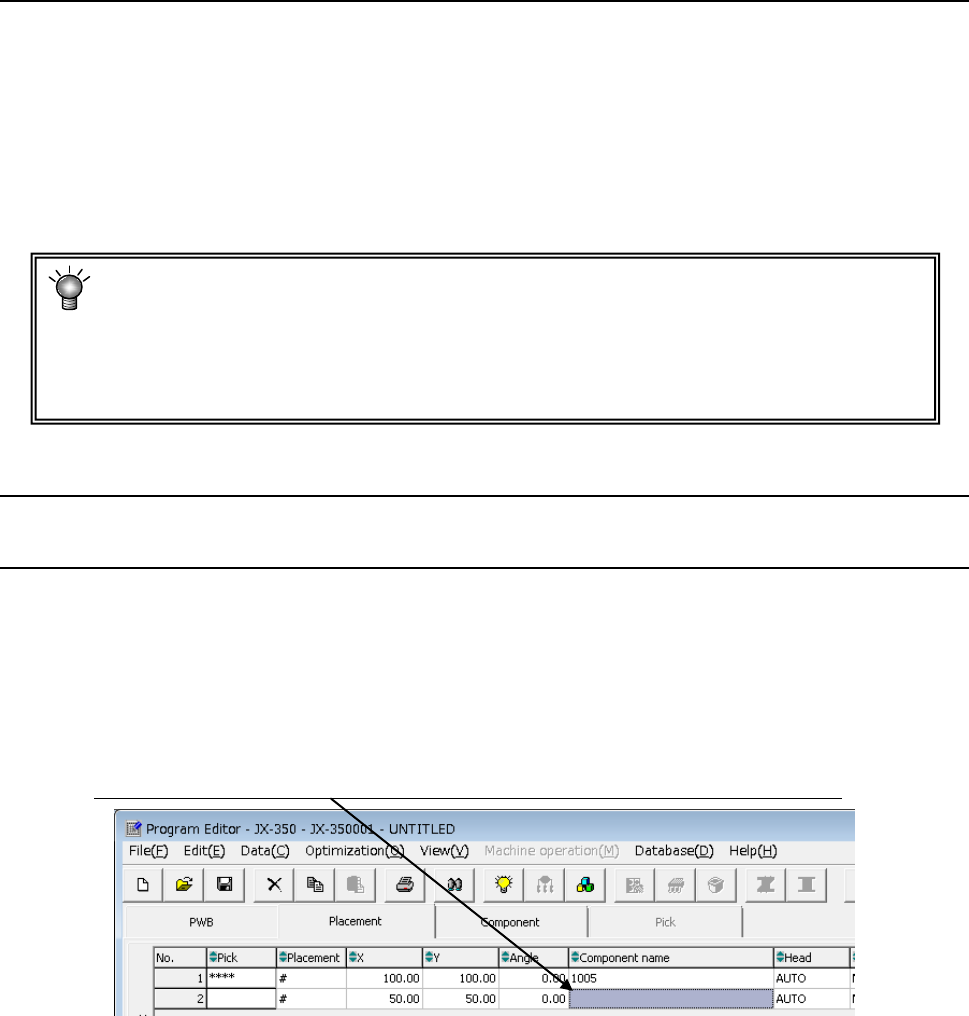

Enter the component name here. The corresponding component data is created completely.
EPU Instruction Manual Chapter 5 Database
5-2
(2) If you do not know a component name
Display the database list, and select a component name you are to register from the list
(this is the “CallList” function).
<Procedure>
① Click a blank “Component name” field. ② Click the [Database]/[CallList] commands.
EPU Instruction Manual Chapter 5 Database
5-3
③ The “Database List” appears on the screen. Select the desired component name,
and click the <OK> button.
(3) If the component name has already been registered in the placement data (such as
data converted from CAD data)
If component name(s) registered in the placement data is (are) registered in the
database also, register in the production program all the associated component data
registered in the database by one operation (by using the “ReSearch”* function).
Click the [Database]/[ReSearch] commands.
- ReSearch function:
This function compares a component name registered in a database with that in the
placement data, and invokes the associated component data from the database if it
finds the same component name in both the database and placement data to
register the data in a production program. Once you execute this [ReSearch]
command, the system compares all component names registered in the placement
data with those in the database, and registers (overwrites) the associated
component data of a production program.
