Chapter 6 Supplementary Information for Creating a
Production Program
6.1 Examples of component dimensions
•

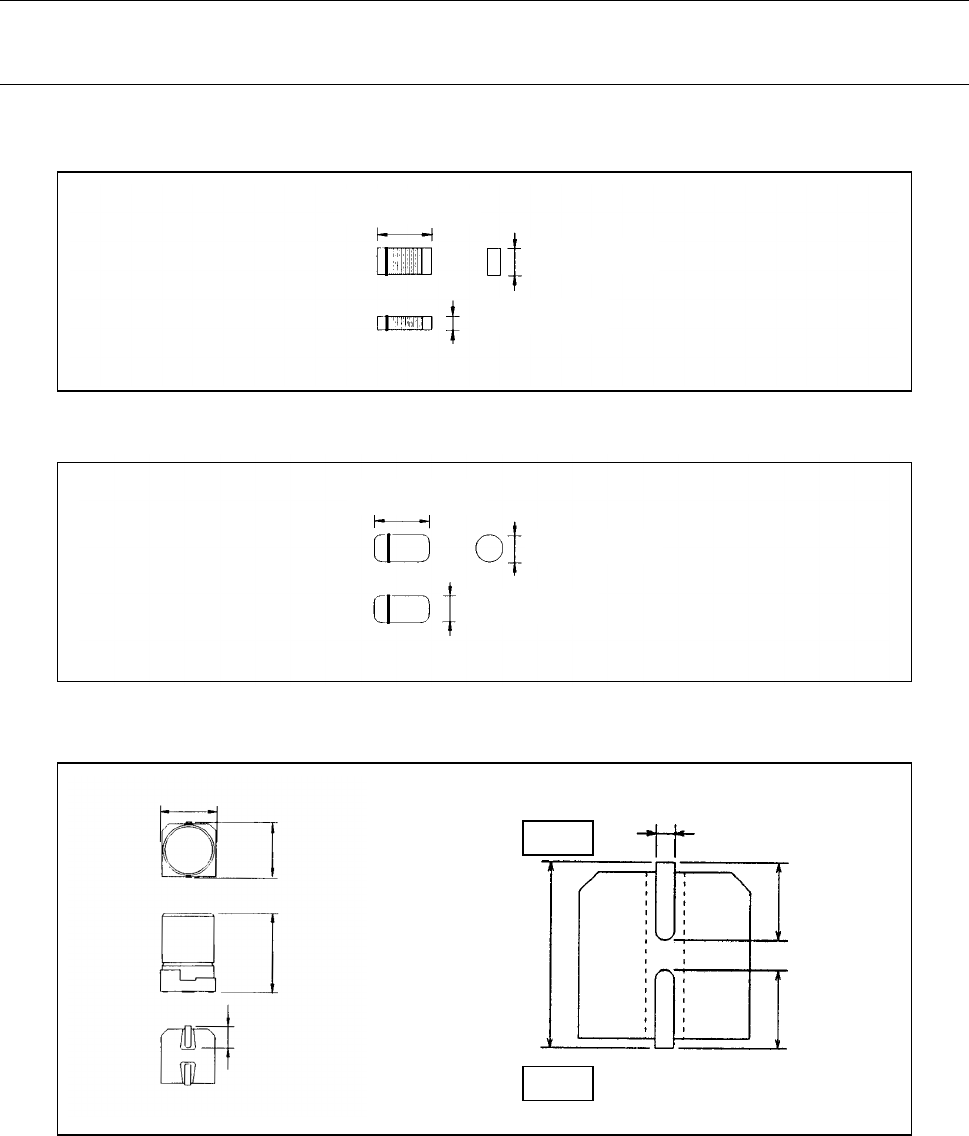

Square chip
•
MELF
•
Aluminum electrolytic capacitor
Dimensions (horizontal)
Dimensions (Vertical)
Component height
Dimensions (horizontal)
Dimensions (Vertical)
Component height
+ side
– side
Lead width
Component height
Dimensions (horizontal)
Dimensions (Vertical)
Lead length
Lead length
Lead length
Dimensions
EPU Instruction Manual Chapter 6 Supplementary Information for Creating a Production Program
6-2
•

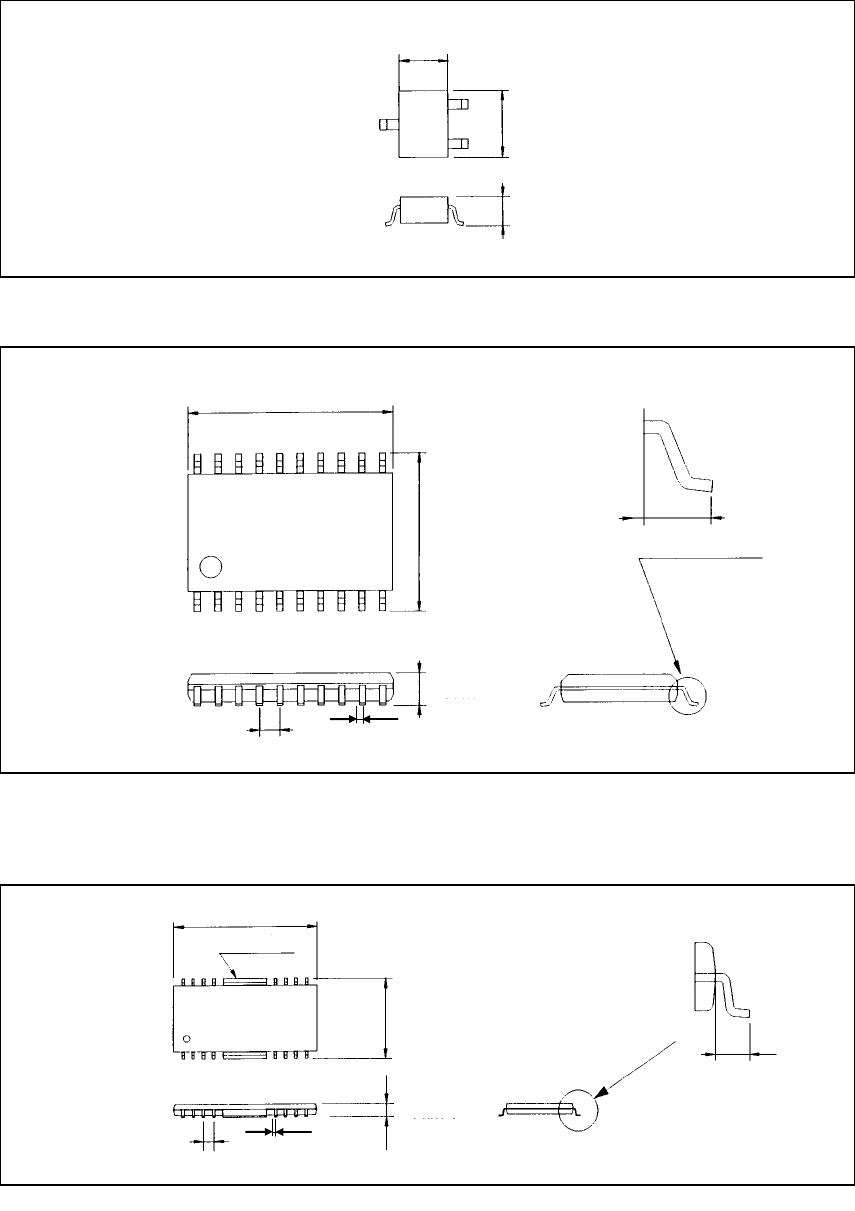

SOT
•
SOP
•
SOP (with a heat sink)
Dimensions (horizontal)
Dimensions
(vertical)
Component height
Lead length
Detail
Lead pitch
Lead width
Dimensions (horizontal)
Dimensions
(vertical)
Component
height
Lead length
Lead pitch
Dimensions (horizontal)
Dimensions
(vertical)
Component
height
Heat sink
Lead width
EPU Instruction Manual Chapter 6 Supplementary Information for Creating a Production Program
6-3
•

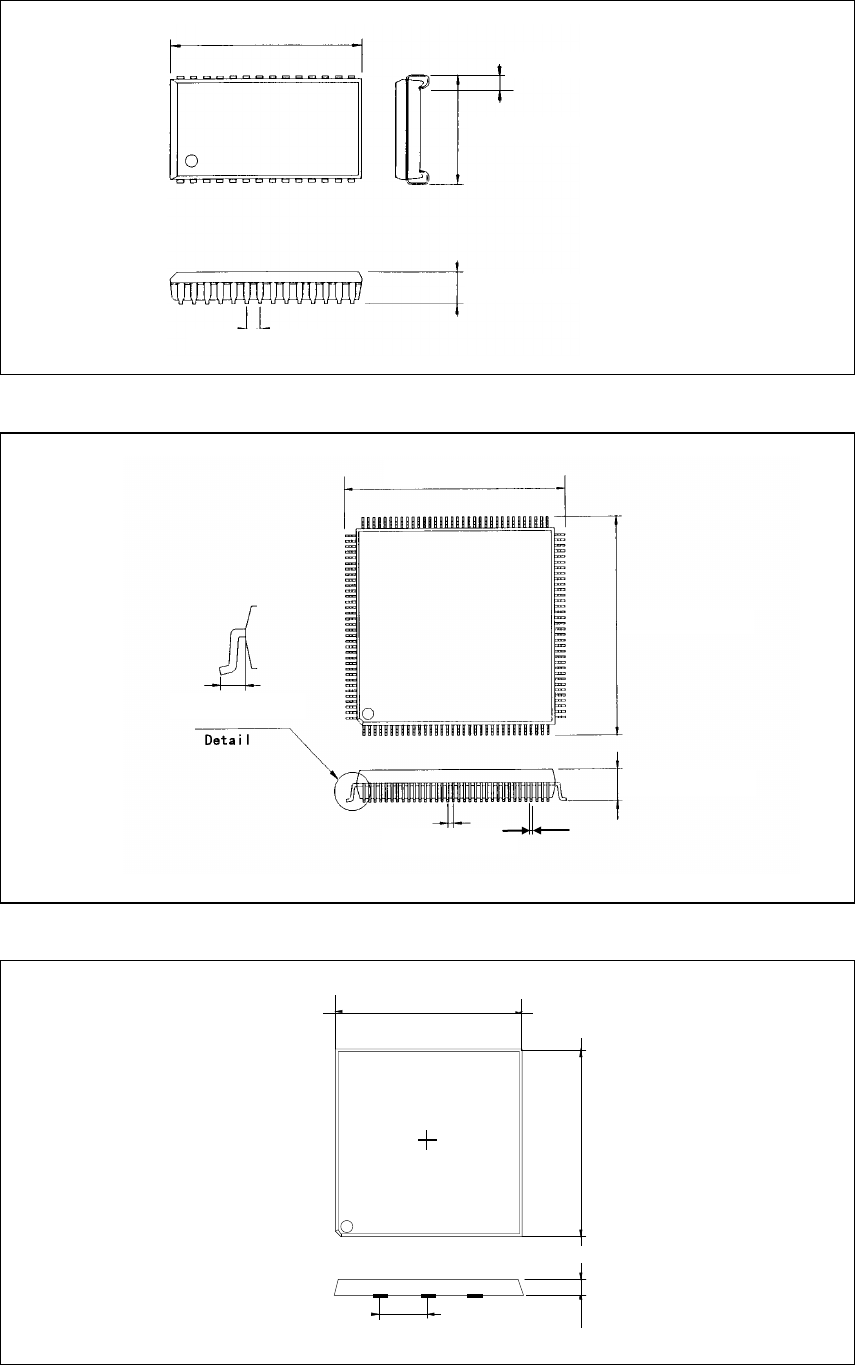

SOJ
•
QFP
•
QFN
Dimensions (horizontal)
Component height
Dimensions (Vertical)
Dimensions (Vertical)
Lead pitch
Lead length
Dimensions (horizontal)
Component height
Lead pitch
Lead length
Dimensions (Vertical)
Component height
Lead pitch
Dimensions (horizontal)
Lead width
