EPU Instruction Manual Chapter 6 Supplementary Information for Creating a Production Program
6-7
•

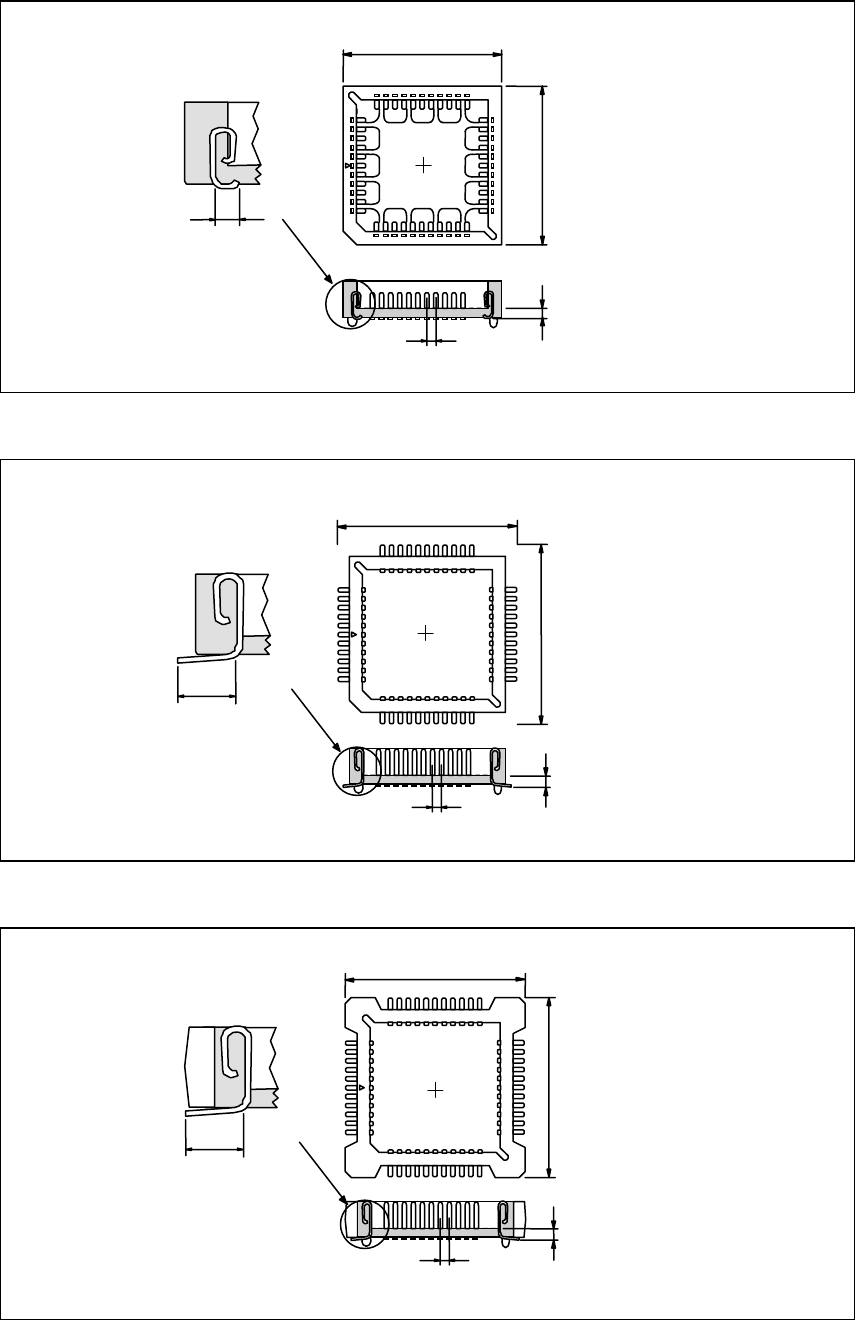

J lead socket
•
Gall wing socket
•
Socket with bumper
Dimensions (horizontal)
Dimensions (Vertical)
Component height
Lead pitch
Lead length
Dimensions (horizontal)
Dimensions (Vertical)
Component height
Lead pitch
Lead length
Dimensions (horizontal)
Dimensions (Vertical)
Component height
Lead pitch
Lead length
EPU Instruction Manual Chapter 6 Supplementary Information for Creating a Production Program
6-8
•

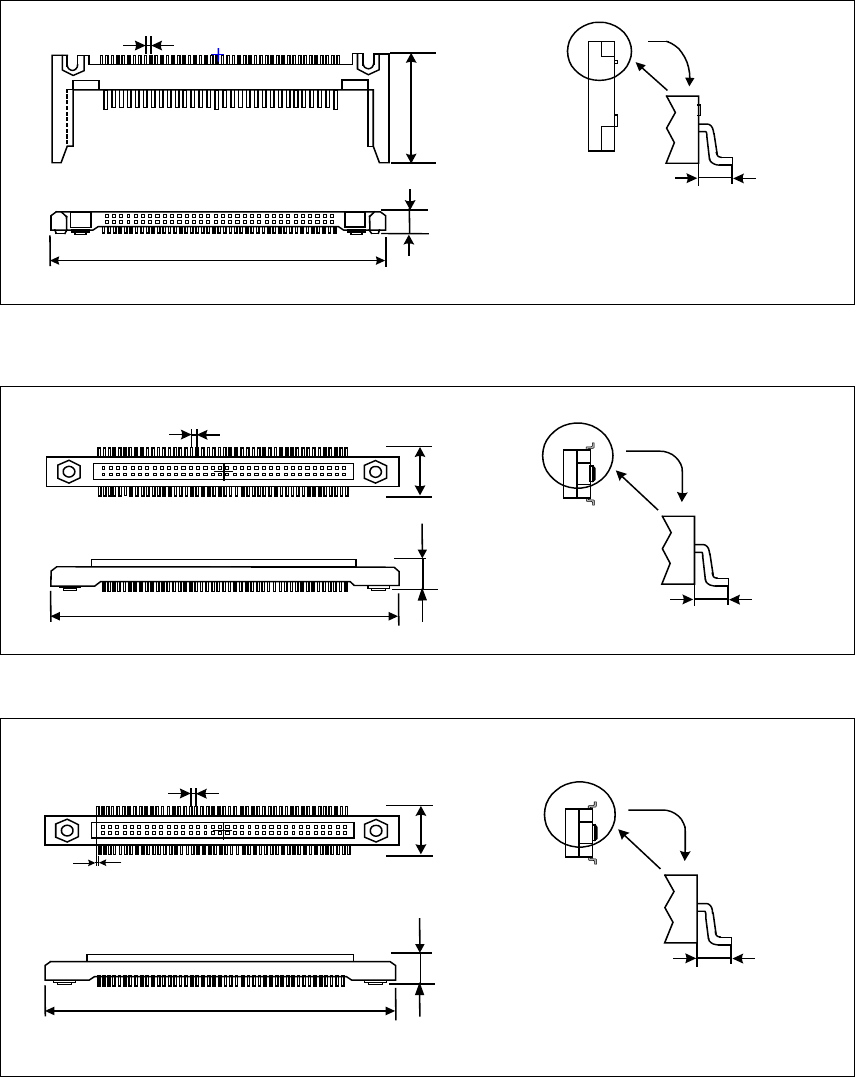

One-way lead connector
•
Tw o - Way lead connector
•
Z Lead connector
外形寸法 縦
リードピッチ
リード長 縦
外形寸法 横
部品高さ
Lead pitch
Dimensions
(Vertical)
Lead length
Component height
Dimensions (horizontal)
外形寸法 縦
リードピッチ
下辺リードが右側に半リードピッチシフトしています。
リード長 縦
外形寸法 横
部品高さ
Lead pitch
Dimensions
(Vertical)
Lead length
Component height
Dimensions (horizontal)
Leads located at the bottom side shift toward
the right side in a half of lead.
外形寸法 縦
リードピッチ
リード長 縦
外形寸法 横
部品高さ
Dimensions (horizontal)
Dimensions
(Vertical)
Component height
Lead pitch
Lead length
EPU Instruction Manual Chapter 6 Supplementary Information for Creating a Production Program
6-9
6.2 File type of Production Programs
6.2.1 Read enable file type table
Type name (extension) Explanation of program file
HLC file (h7h)
File created by HLC Ver. 9.0 or later
HLC file (h6h)
File created by HLC Ver. 8.0 or later
HLC file (h5h)
File created by HLC Ver. 7.0 or later
HLC file (h4h)
File created by HLC Ver. 5.0 to 6.0
HLC file (g4h)
File created by HLC Ver. 4.5
HLC file (g3h)
File created by HLC Ver. 4.0 to 4.4X
HLC file (g2h)
File created by HLC Ver. 3 or earlier
2010 type file (e41)
File created by 2010 main unit or EPU for 2010
2020 type file (e42)
File created by 2020 main unit or EPU for 2020
2030 type file (e43)
File created by 2030 main unit or EPU for 2030
2040 type file (e44)
File created by 2040 main unit or EPU for 2040
2050 type file (e45)
File created by 2050 main unit or EPU for 2050
2050/2050R type file (e45)
File created by 2050/2050R main unit or EPU for 2050/2050R
2060 type file (e46)
File created by 2060 main unit or EPU for 2060
2060/2050R /2060R type file (e46) File created by 2060/2055R/2060R main unit or EPU for
2060/2055R/2060R
1070/2070 type file (e47)
File created by 1070/2070 main unit or EPU for 1070/2070
1080/2080 type file (e48)
File created by 1080/2080 main unit or EPU for 1080/2080
3010/3010A/3010AC type file (x11)
File created by 3010/3010A/3010AC main unit or EPU for
3010/3010A/3010AC
3020/3020R/3020V/3020VR/
3020VA/3020VRA type file (x21)
File created by 3020/3020R/3020V/3020VR/3020VA/3020VRA main
unit or EPU for 3020/3020R/3020V/3020VR/3020VA/3020VRA
JX-350 type file (x11)
File created by JX-350 main unit or EPU for JX-350
FX-1/FX-1R type file (e51)
File created by FX-1/FX-1R main unit or EPU for FX-1/FX-1R
FX-2 type file (e52)
File created by FX-2 main unit or EPU for FX-2
FX-3/FX-3R type file (x01)
File created by FX-3/FX-3R main unit or EPU for FX-3/FX-3R
CX-1 type file (e56)
File created by CX-1 main unit or EPU for CX-1
710 type file (g2c)
File created by 710 main unit or EPU for 710
720 type file (g2g)
File created by 720 main unit or EPU for 720
730/750 type file (g3c) File created by 730/730 plus/750 main unit or EPU for 730/730
plus/750
740/760 type file (g3g)
File created by 740/760 main unit or EPU for 740/760
KD-770 type file (g2d)
File created by KD-770 main unit or EPU for KD-770
KD-775 type file (g3d)
File created by KD-775 main unit or EPU for KD-775
KD-2077 type file (x4d)
File created by KD-2077 main unit or EPU for KD-2077
HLCOptimization-divided file #1 (h71)
File divided for machine #1 of MSL line of HLC Ver. 9.0 or later
HLCOptimization-divided file #2 (h72)
File divided for machine #2 of MSL line of HLC Ver. 9.0 or later
HLCOptimization-divided file #3 (h73)
File divided for machine #3 of MSL line of HLC Ver. 9.0 or later
HLCOptimization-divided file #4 (h74)
File divided for machine #4 of MSL line of HLC Ver. 9.0 or later
HLCOptimization-divided file #5 (h75)
File divided for machine #5 of MSL line of HLC Ver. 9.0 or later
HLCOptimization-divided file #6 (h76)
File divided for machine #6 of MSL line of HLC Ver. 9.0 or later
HLCOptimization-divided file #7 (h77)
File divided for machine #7 of MSL line of HLC Ver. 9.0 or later
HLCOptimization-divided file #1 (h61)
File divided for machine #1 of MSL line of HLC Ver. 8.0 or later
HLCOptimization-divided file #2 (h62)
File divided for machine #2 of MSL line of HLC Ver. 8.0 or later
HLCOptimization-divided file #3 (h63)
File divided for machine #3 of MSL line of HLC Ver. 8.0 or later
HLCOptimization-divided file #4 (h64)
File divided for machine #4 of MSL line of HLC Ver. 8.0 or later
HLCOptimization-divided file #5 (h65)
File divided for machine #5 of MSL line of HLC Ver. 8.0 or later
HLCOptimization-divided file #6 (h66)
File divided for machine #6 of MSL line of HLC Ver. 8.0 or later
HLCOptimization-divided file #7 (h67)
File divided for machine #7 of MSL line of HLC Ver. 8.0 or later
HLCOptimization-divided file #1 (h51)
File divided for machine #1 of MSL line of HLC Ver. 7.x
HLCOptimization-divided file #2 (h52)
File divided for machine #2 of MSL line of HLC Ver. 7.x
