SENSORS CAPACITIVE PROXIMITY SENSOR Chapter Issue 6, May 19 Technical Reference Manual 40.9 CAP ACITIVE PROXIMITY SENSOR Description A capacitive proximity sensor consists of an RC oscillator which emits a frequency fiel…
SENSORS
INDUCTIVE SENSORS
40.8 Technical Reference Manual Chapter Issue 6, May 19
INDUCTIVE SENSORS
Description An inductive sensor consists of an induction loop which generates a magnetic
field. When a metal object is moved close (typically 3 - 4mm) to the sensing area
of the sensor, the inductance of the loop changes, increasing the current flow
through the loop. This change is detected by internal circuitry and switches the
sensor.
Figure 40-11 Inductive Sensor
Testing/
Adjustment
The Squeegee/ProFlow home sensor can be tested using Diagnostics. The
sensor incorporates an LED indicating the status of the sensor. There is no
adjustment for this sensor as it is in a fixed position.
For testing and adjustment of the rail lifted sensor, refer to the relevant transport
rail chapter.
Squeegee/ProFlow Home Sensor
Rail Lifted Sensor
Sensing Area
(Range 3mm)
Sensing Area
(Range 4mm)
Sensor Bracket
+V
Opto-isolator
1K8
0V
12V Brown
0V Blue
Signal Black
Control
Circuit
Digital Input
LED
LED
SENSORS
CAPACITIVE PROXIMITY SENSOR
Chapter Issue 6, May 19 Technical Reference Manual 40.9
CAPACITIVE PROXIMITY SENSOR
Description A capacitive proximity sensor consists of an RC oscillator which emits a
frequency field. When the target, in this case the solder paste, moves away
from the sensing range (ie paste low), the capacitance increase effectively
changes the internal current which is detected by an adjustable trigger. The
control circuit switches the output transistor on.
Figure 40-12 Capacitive Proximity Sensor
Capacitive Proximity Switch
Sensor Bracket
LED
Paste Level Sensor
LED Adjuster
and Indicator
Sensor Bracket
Sensor
PastePaste Cartridge
Paste Level
Sensor
+V
Opto-isolator
1K8
0V
0V
12V
RC Frequency Field
Solder Paste
12V
0V
Pin 1
Control
Circuit
Pin 2
Pin 3
Digital Input
SENSORS
CAPACITIVE PROXIMITY SENSOR
40.10 Technical Reference Manual Chapter Issue 6, May 19
Testing/
Adjustment

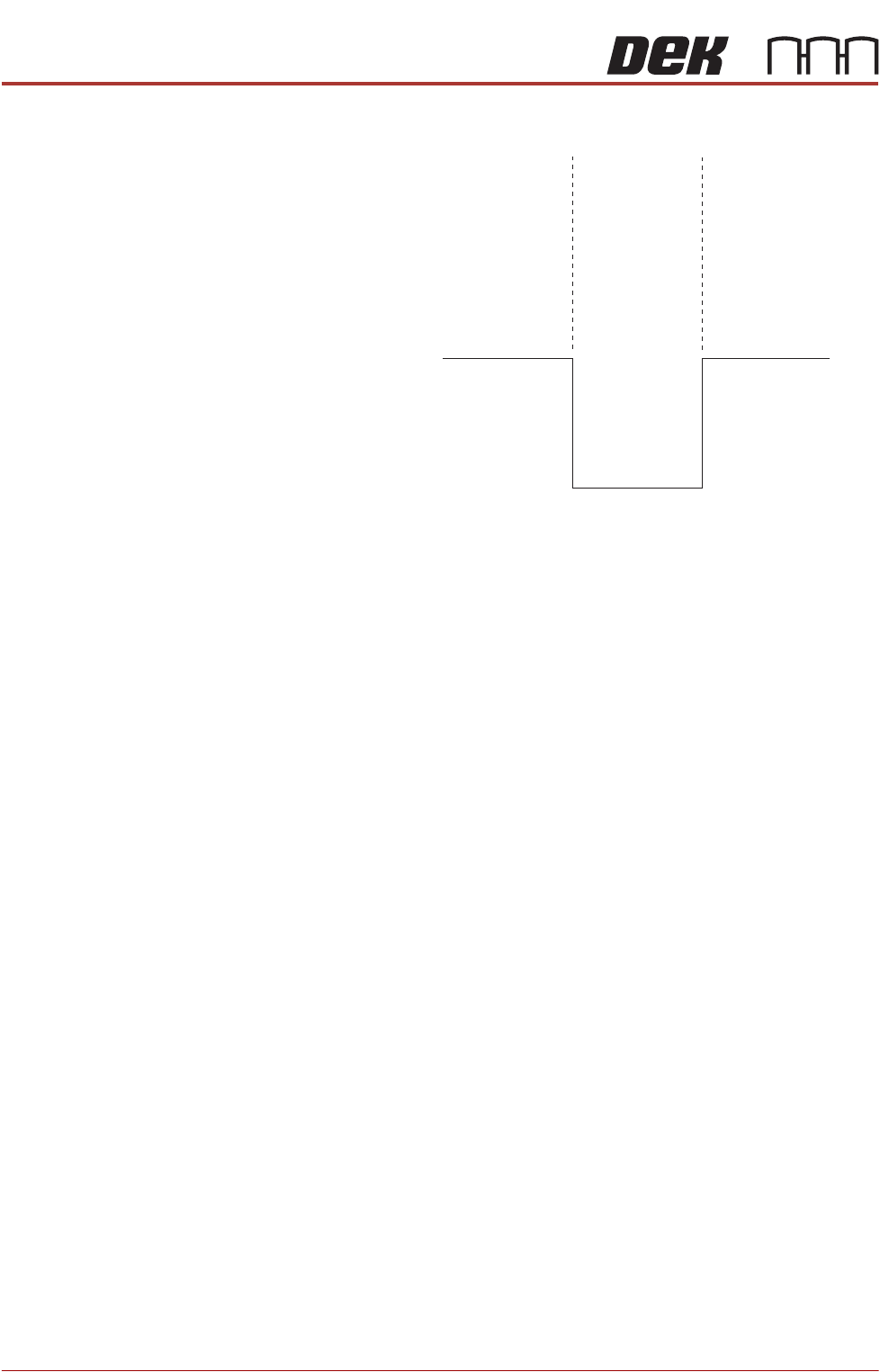

Figure 40-13 Voltage Diagram
Setting Up
Procedure
The procedure for setting up the capacitive proximity sensor is fully detailed in
the Paste Dispenser System chapter of this manual, (Adjustments and Settings
section).
Node Absent Present Absent
12V
0V
Off OffOn
Operation Indicator
Signal
