STINGER
OVERVIEW
Chapter Issue 4, Nov 19 Technical Reference Manual 38.1
CHAPTER 38 STINGER
OVERVIEW
Stinger is a glue dot dispenser module attached to the camera carriage. The
dispensed adhesive is used to hold larger mass components, which may as a
result of transportation, or where under components are used, move after
placement.
After a product has been printed, Stinger dispenses adhesive in a pre-pro-
grammed pattern onto the product’s surface. A laser can be programmed to
take a measurement at various locations on the product; these measurements
are used to check that the dispense gap is maintained, even where product
warpage exists.
Operation Regulated air is supplied to the rear of the syringe, forcing an internal plunger
to compress the adhesive. The auger body fills with adhesive and the auger
valve screw (Archimedes screw) is rotated, providing a stirring motion that
‘works’ the adhesive; this action disperses any air bubbles that may be present.

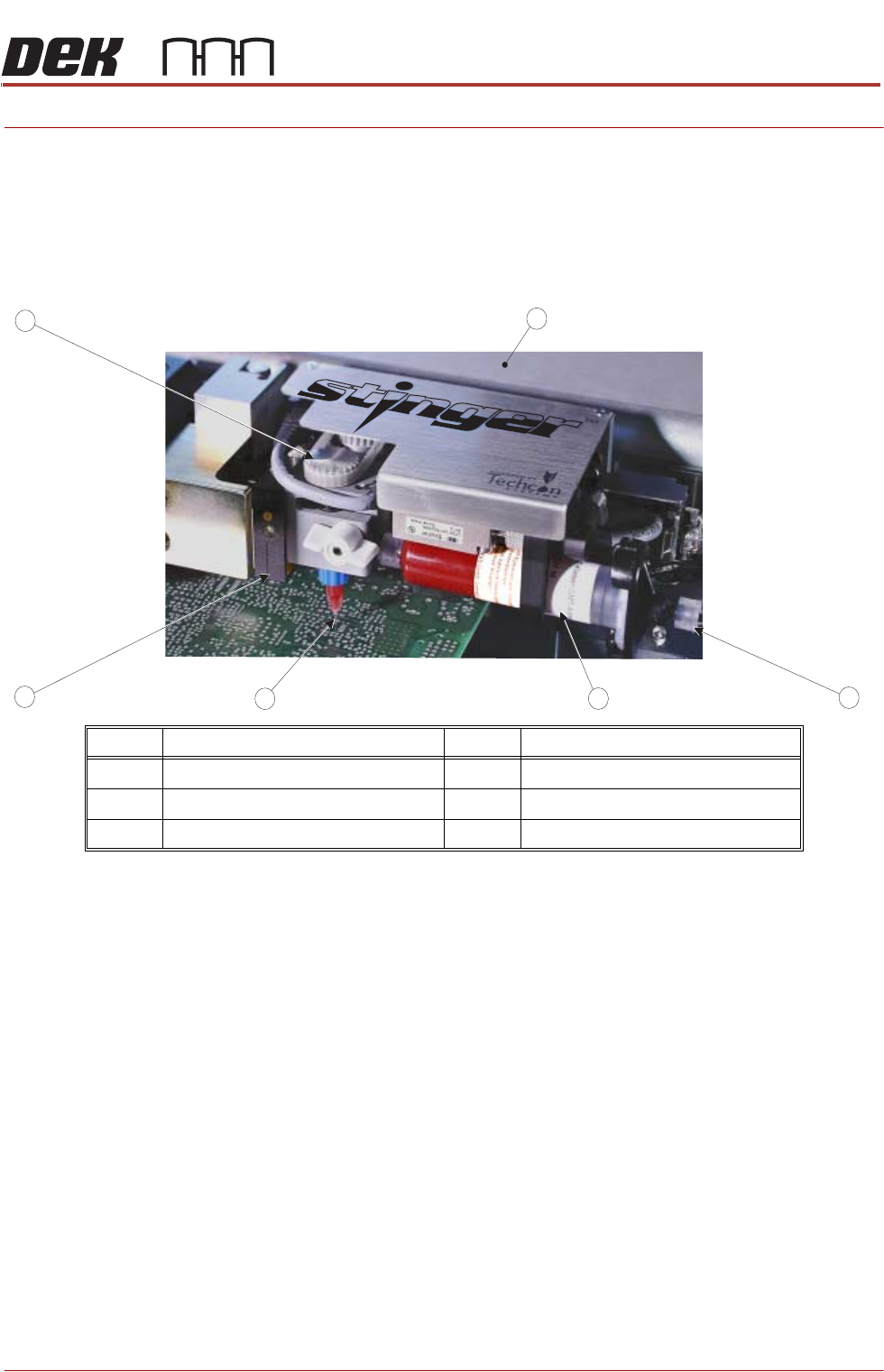

N0. Description No. Description
1 Camera Carriage 4 Nozzle and Auger Valve Assembly
2 Air Input Connector 5 Laser Unit
3 10cc Syringe 6 Auger Pulley
5
2
6
1
4
3
38.2 Technical Reference Manual Chapter Issue 4, Nov 19
STINGER
OVERVIEW

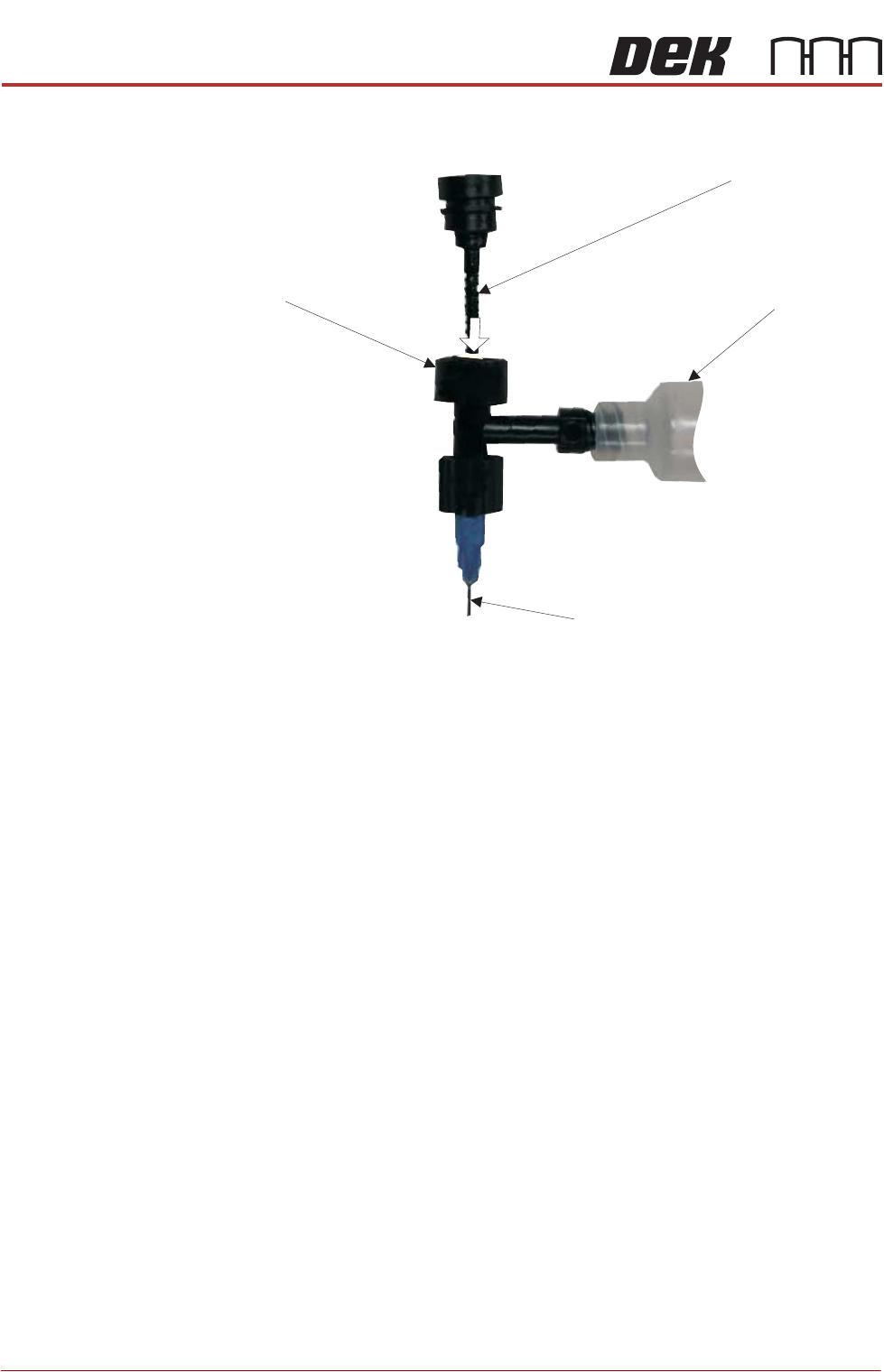

Figure 38-1 Exploded View of the Dispense Mechanism
The unit can be programmed to purge the contents of the syringe, ensuring
consistency, prior to a production run. Externally, a consumable level sensor
detects the level of the adhesive in the syringe and warns the operator when
the level is low. A laser can be programmed to take height readings across the
top surface of the product; the information gained, is used to adjust the dispense
height, thereby increasing the consistency during the dispense cycle.
For detailed set up and operation procedures refer to manual, Stinger, a guide
to adhesive dot dispensing - Part Number 88198825-01.
Auger Valve Screw
Auger Body
Syringe Head
Tip
STINGER
EQUIPMENT LABELS AND NOTICES
Chapter Issue 4, Nov 19 Technical Reference Manual 38.3
EQUIPMENT LABELS AND NOTICES
Equipment
Specific Safety
Notices
Where an option could represent a potential hazard, labels are attached in
appropriate places on the equipment.
Compliance Labels Compliance labels may also be fitted to indicate the company, country and date
of manufacture.
Equipment Label
Locations
