TRANSPORTATION - MAJOR RELOCATION TRANSIT BRACKET AND SCREW INS TALLATION 42.4 Technical Reference Manual Chapter Issue 5, Nov 19 TRANSIT BRACKET AND SCREW INST ALLA TION NOTE T ransit brackets and screws are red in colo…
TRANSPORTATION - MAJOR RELOCATION
PREPARATION
Chapter Issue 5, Nov 19 Technical Reference Manual 42.3

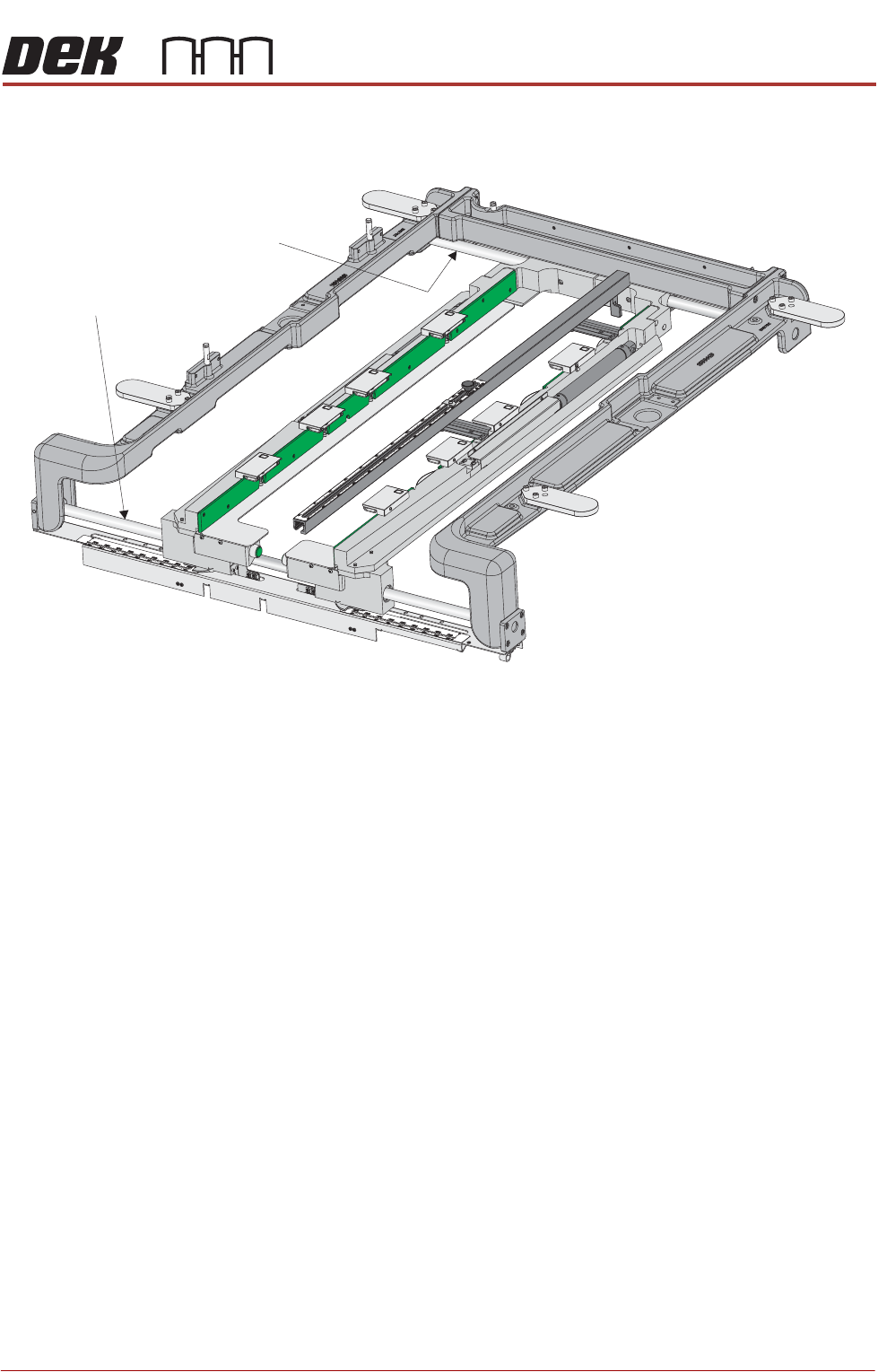

ASM Chase Coat the front and rear guide bars of the ASM with multi purpose oil.
Figure 42-2 Grease Protection - ASM
Front Guide Bar
Rear Guide Bar
TRANSPORTATION - MAJOR RELOCATION
TRANSIT BRACKET AND SCREW INSTALLATION
42.4 Technical Reference Manual Chapter Issue 5, Nov 19
TRANSIT BRACKET AND SCREW INSTALLATION
NOTE
Transit brackets and screws are red in colour for easy identification.
Under Stencil
Cleaner
1. Place a piece of card (300mm by 180mm approximately) onto the top of the
stencil cleaner.
2. Join three large red cable ties together and secure the card and the cleaner
to the carriage by fitting them around the whole cleaner assembly.

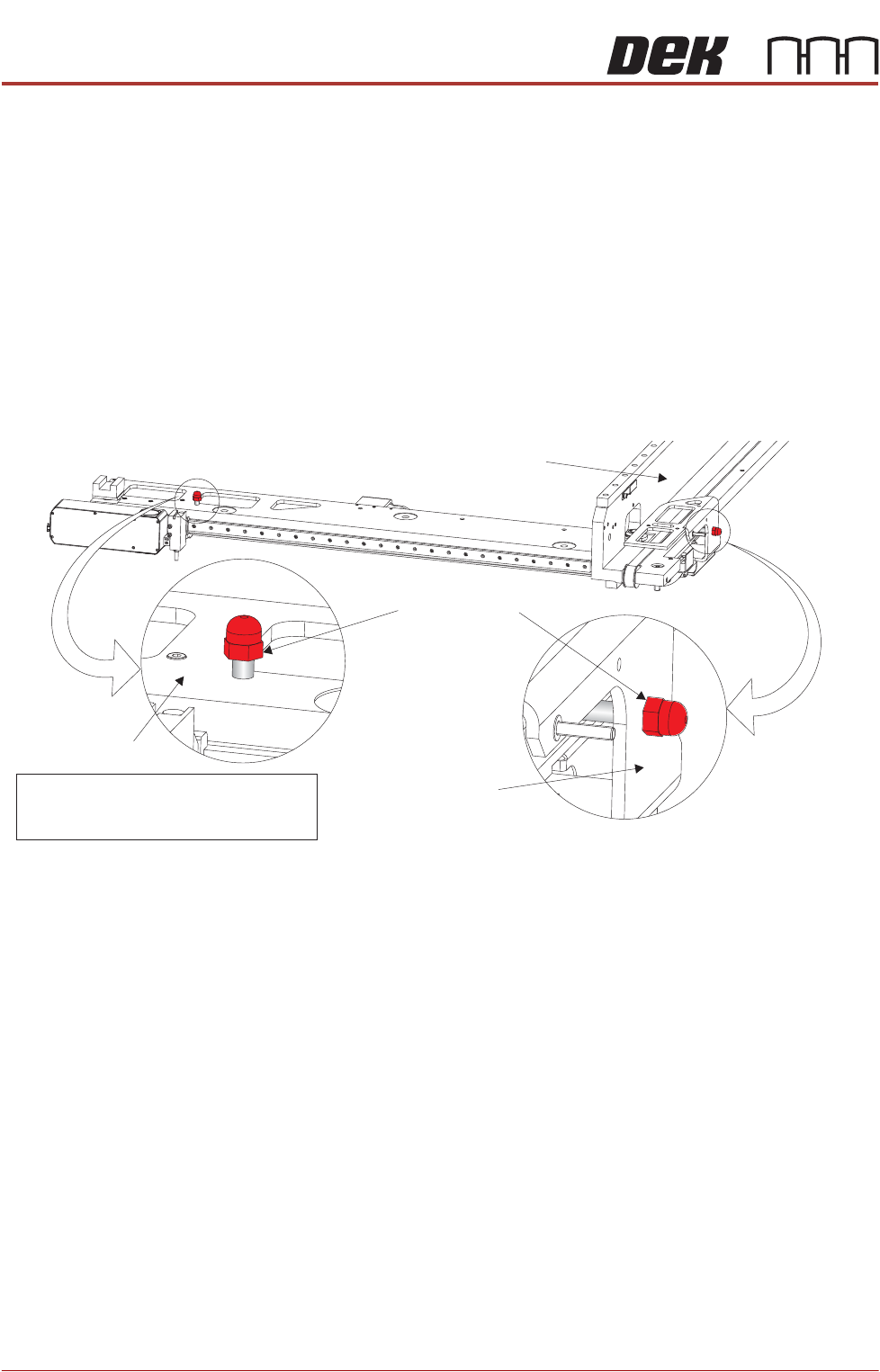

Camera Transit
Screws (Rotary
Drive)
1. Manually pull the camera beam to the front of the machine.
2. Align the threaded hole in the camera Y drag chain bracket with the hole in
the right hand printhead and fit the M8 transit screw.
3. Align the threaded hole in the camera beam with the hole in the camera X
drag chain bracket (below the camera beam) and fit the M8 transit screw
downwards through the camera beam.
Note
Camera X Drag Chain Bracket is hidden
from view by the Camera Beam
Transit Screws
Camera Beam
Right Hand Printhead
Camera Y Drag
Chain Bracket
TRANSPORTATION - MAJOR RELOCATION
TRANSIT BRACKET AND SCREW INSTALLATION
Chapter Issue 5, Nov 19 Technical Reference Manual 42.5

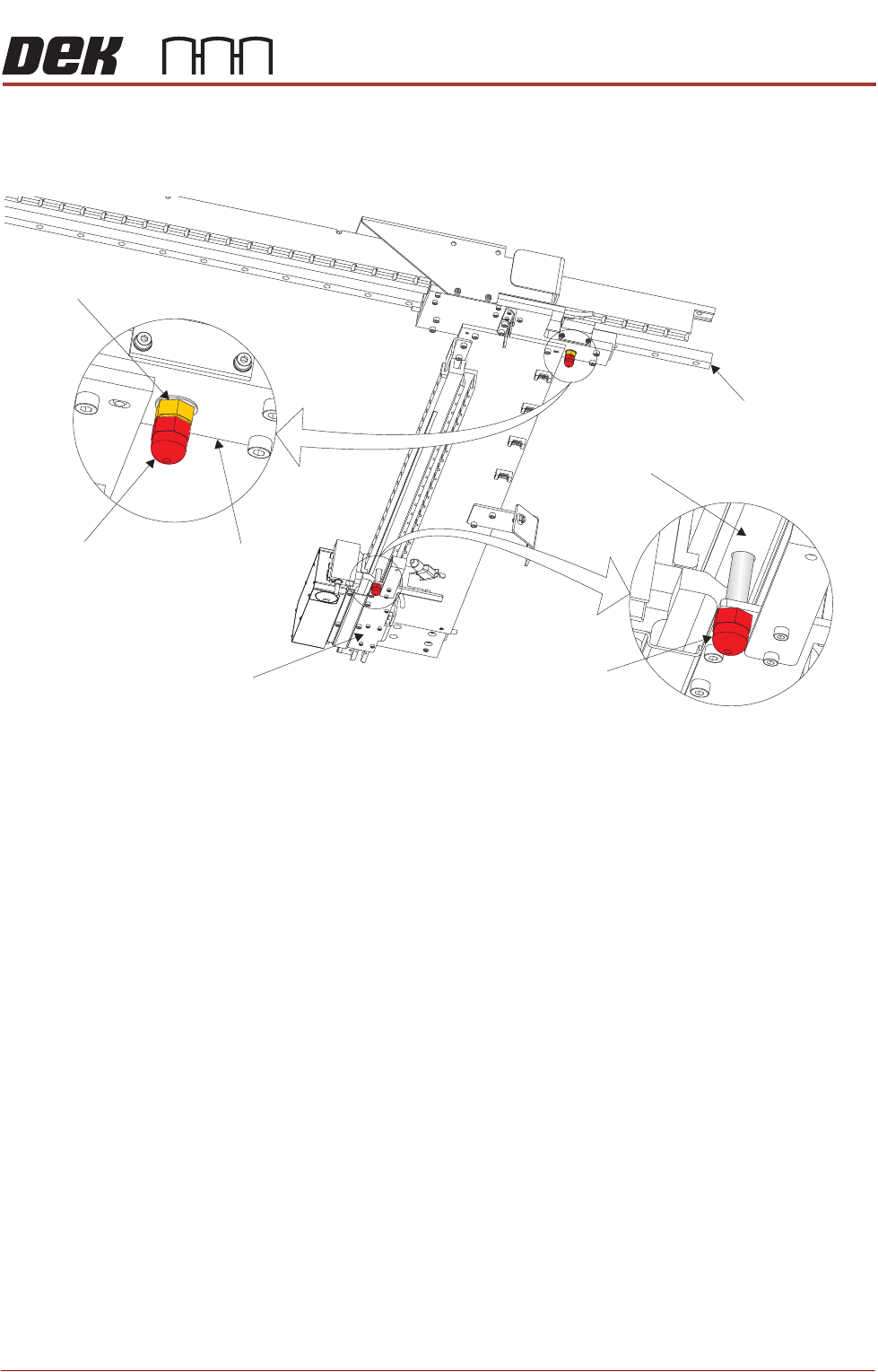

Camera Transit
Screws (Linear
Drive)
1. Align the threaded hole in the camera X drag chain bracket with the hole in
the camera beam extrusion and fit the M8 transit screw.
2. Align the threaded hole in the camera Y plate with a spare hole in the camera
Y linear bearing at the rear of the machine and fit the M8 transit screw
ensuring that the transit screw is fitted with a lock nut and crinkle washer.
3. Tighten the locking nut on to the camera Y plate to prevent the transit screw
vibrating loose during transportation.
View on Right Hand Underside of Camera Beam
Transit Screw
Transit Screw
Camera Y Plate
Camera Y Linear Bearing
Camera X Drag Chain Bracket
Camera Beam Extrusion
Lock Nut and
Crinkle Washer
