TRANSPORTATION - MAJOR RELOCATION MACHINE ASSEMBLY 42.96 Technical Reference Manual Chapter Issue 5, Nov 19 • Piston Down Air Feed 8. Using a crosshead screwdriver , connect the drag chain carrying the right hand side co…
TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
Chapter Issue 5, Nov 19 Technical Reference Manual 42.95
4. Fit the ProFlow ATx system mount mechanism to the print carriage, ensuring
that both locating dowels fit into the locator dowel holes.
NOTE
Ensure the cables and air feed lines are free from moving parts that may
prevent the ProFlow ATx mount from being secured to the print carriage.
5. Secure the ProFlow ATx system mount to the print carriage; tighten the four
captive screws on the mount plate, using the 4mm T-bar Allen key supplied
(205973).
6. Using a crosshead screwdriver, attach the drag chain carrying the left hand
side cable and air feed connectors to the left hand side of the print carriage.
7. Connect the following to the ProFlow ATx connections on the left hand side
of the print carriage:
• Conditioning Grid Motor Power (9PL96)
• Head Empty Sensor (9PL77)
• Print Medium Cartridge Air Feed
• ProFlow Home (9PL08)
• Z-axis Stepper Motor Power (9PL17)
• Print Medium Low Sensor and ProFlow Fitted Link (9PL61)
• Conditioning Grid Motor CAN (9PL98)

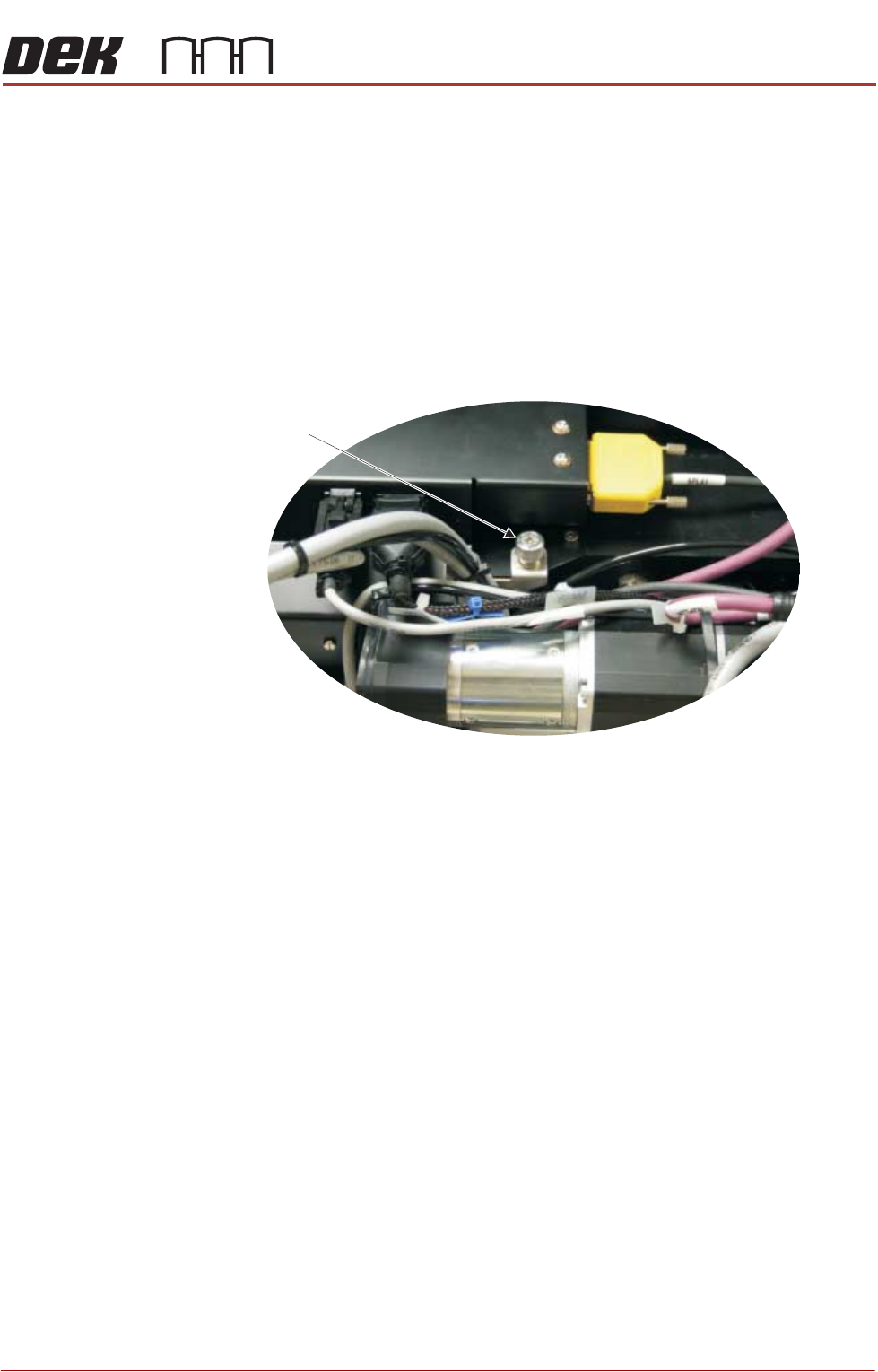

View on Print Carriage Top Face
Left Side Drag
Chain Screw
TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
42.96 Technical Reference Manual Chapter Issue 5, Nov 19
• Piston Down Air Feed
8. Using a crosshead screwdriver, connect the drag chain carrying the right
hand side connectors to the right hand side of the print carriage.
9. Connect the following to the ProFlow ATx connectors on the right hand side
of the print carriage
• Archimedes Screw Power (9PL100)
• Paste Load Feedback (9PL108)
View on Print Carriage Top Face
Right Side Drag
Chain Screw
TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
Chapter Issue 5, Nov 19 Technical Reference Manual 42.97
• Piston Up Air Feed
Fit Transfer Head
MANDATORY
TOXIC CHEMICALS MAY BE PRESENT. SAFETY GLOVES MUST BE WORN.
MANDATORY
TOXIC CHEMICALS MAY BE PRESENT. EYE PROTECTION MUST BE WORN.
To adjust the mount brackets and fit a transfer head to the ProFlow ATx mount,
carry out the following:
1. Determine the size of the transfer head to be fitted. If the size of the transfer
head is not known, measure the distance between the inside edges of the
skis.
View on Print Carriage Right Side
Archimedes Screw
Power (9SK100)
Paste Load
Feedback (9SK108)
Piston Up
Air Feed
Transfer Head Underside View
XXXmm
Ski
Ski
