TRANSPORTATION - MAJOR RELOCATION MACHINE ASSEMBLY 42.74 Technical Reference Manual Chapter Issue 5, Nov 19 cover with any surplus cable. 4. Connect the tricolour beaco n connection 14PL07 to 14SK07. 5. Fit the beacon br…
TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
Chapter Issue 5, Nov 19 Technical Reference Manual 42.73
3. Connect the tricolour beacon connection 14PL07 to 14SK07 and feed down
through the hole in the cover with any surplus cable.
4. Before fitting the beacon, locate the two MMI cables secured in the machine
and feed them out through the hole, ready for the monitor.
5. Fit the beacon bracket to the machine cover using the four beacon bracket
securing screws ensuring that any cables are not trapped between the
beacon bracket and the cover.
Type 4 Covers 1. Using a 3mm Allen key, remove the beacon bracket securing screws from
the machine cover.
2. Remove the Rear Corner Panel to reveal socket 14SK07.
3. Feed the tricolour beacon connection 14PL07 down through the hole in the
Beacon Bracket

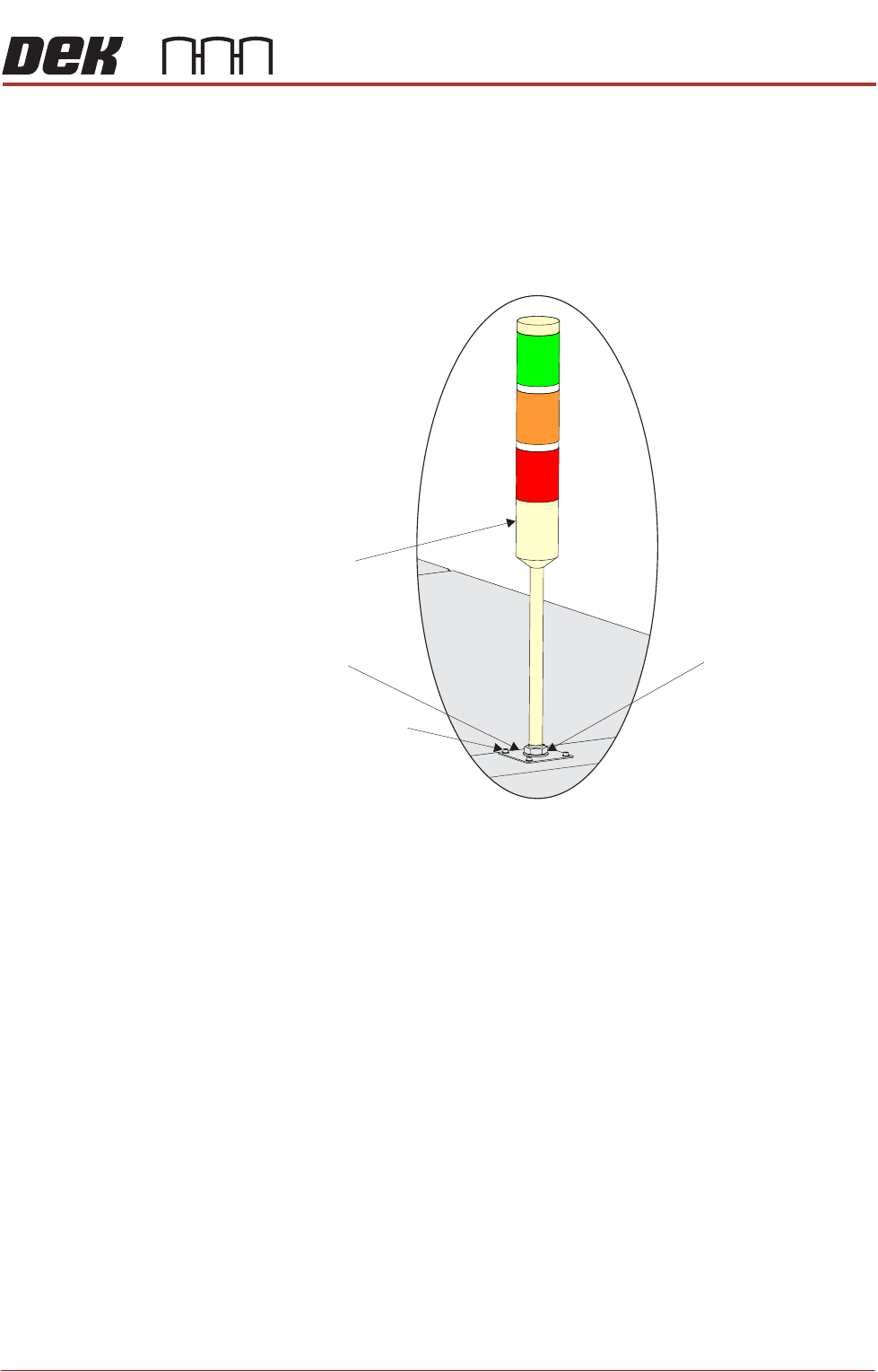

Tricolour Beacon
Beacon Securing Nut
Beacon Bracket Cut-Out
Beacon Bracket Securing
Screws (in 4 positions)
Beacon Bracket
Securing Screws
(in 4 positions)
View on Underside of Beacon Bracket
Beacon Connector
()14SK07
View on Right Hand Side of the Machine
TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
42.74 Technical Reference Manual Chapter Issue 5, Nov 19
cover with any surplus cable.
4. Connect the tricolour beacon connection 14PL07 to 14SK07.
5. Fit the beacon bracket to the machine cover using the four beacon bracket
securing screws ensuring that any cables are not trapped between the
beacon bracket and the cover.
6. Secure the Rear Corner Panel into position.
Type 5 Covers 1. Using a 3mm Allen key, remove the beacon bracket securing screws from
the machine cover.
2. Remove the Rear Upper Panel to reveal socket 14SK07.
Tricolour Beacon
Beacon Securing Nut
Beacon Bracket Securing
Screws (in 4 positions)
Beacon Bracket
Beacon Bracket
Securing Screws
(in 4 positions)
View on Underside of Beacon Bracket
Beacon Connector
()14SK07
View on Right Hand Side of the Machine
TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
Chapter Issue 5, Nov 19 Technical Reference Manual 42.75
3. Feed the tricolour beacon connection 14PL07 down through the hole in the
cover with any surplus cable.
4. Connect the tricolour beacon connection 14PL07 to 14SK07.
5. Fit the beacon bracket to the machine cover using the four beacon bracket
securing screws ensuring that any cables are not trapped between the
beacon bracket and the cover.
6. Secure the Rear Upper Panel into position.
Man Machine Interface (MMI)
Type 1 Covers The monitor may have been removed for transportation, use the following
procedure to fit the monitor:
1. Remove the front panel.
2. Locate the following cables stowed within the machine:
• Monitor Power Cable
•VGA Cable
• Touchscreen Cable (USB)
• USB Cable - Rear Monitor USB Connector
3. Feed the cables out of the machine and downwards through the hole of the
monitor arm support bracket
4. From the monitor arm, feed the keyboard/IR Receiver cable upwards
through the hole of the monitor arm support bracket and into the machine.
5. Fit the monitor arm to the monitor bracket ensuring that no cables are
Tricolour Beacon
Beacon Securing Nut
Beacon Bracket Securing
Screws (in 4 positions)
Beacon Bracket
