STINGER
ADJUSTMENTS AND SETTINGS
Chapter Issue 4, Nov 19 Technical Reference Manual 38.11
ADJUSTMENTS AND SETTINGS
WARNING
BOARD CLAMPS. EXTREME CARE MUST BE EXERCISED WHEN WORKING IN
THE TOOLING AREA OF THE MACHINE TO AVOID INJURY. THE FOILS ON THE
FRONT AND REAR BOARD CLAMPS ARE VERY SHARP.
WARNING
COMPRESSED AIR. COMPRESSED AIR SHOULD NEVER IMPINGE UPON THE
BODY. PORTS, PIPES, ETC MUST NEVER BE BLOCKED BY HAND. BEFORE
CONNECTING OR DISCONNECTING ANY PNEUMATIC COMPONENTS, ENSURE
THE COMPRESSED AIR SUPPLY HAS BEEN DISSIPATED AND DISCONNECTED
FROM THE MACHINE.
CAUTION
EQUIPMENT SERVICING. THE LASER DOES NOT CONTAIN USER
SERVICEABLE PARTS. OPENING THE UNIT COULD CAUSE MIS-ALIGNMENT OF
THE LASER, THIS MAY MAKE THE EQUIPMENT DANGEROUS TO OPERATE.
CAUTION
RADIATION. RISK OF INJURY TO THE EYES DUE TO LASER LIGHT BEING
PRESENT IN THE VICINITY OF THE LABEL. DO NOT LOOK AT THE LIGHT
SOURCE OR REFLECTIONS FROM A SURFACE.
WARNING
HARMFUL SUBSTANCES. CLEANING WIPES AND CLEANING SOLUTIONS MAY
CONTAIN SUBSTANCES HAZARDOUS TO HEALTH. WHEN USING CLEANING
WIPES AND CLEANING SOLUTIONS THE MANUFACTURERS’ SAFETY DATA
SHEETS MUST BE STRICTLY ADHERED TO.
MANDATORY
TOXIC CHEMICALS MAY BE PRESENT. SAFETY GLOVES MUST BE WORN.
MANDATORY
TOXIC CHEMICALS MAY BE PRESENT. EYE PROTECTION MUST BE WORN.
Idle height is the position to which the needle tip is set, between dispensing
actions. The dispenser moves to its dispense site, after dispensing it is moved
to the idle position, before moving on to the next location.
Setting the
Regulator
Pressure
The pneumatic regulator should be set to 0.8 Bar (0.08 MPa).
1. Remove the printer’s rear cover.
2. Check the dial indicator setting; if it is as shown above the unit does not
38.12 Technical Reference Manual Chapter Issue 4, Nov 19
STINGER
ADJUSTMENTS AND SETTINGS
require adjustment.
3. If adjustment is required, using a 8mm open-ended spanner release the lock
nut.
4. Turn the adjuster on the bottom of the regulator to increase or to decrease
the pressure until the reading is set to 0.8 Bar (0.08MPa).
5. Tighten the lock nut.
6. Refit the printer’s rear cover.

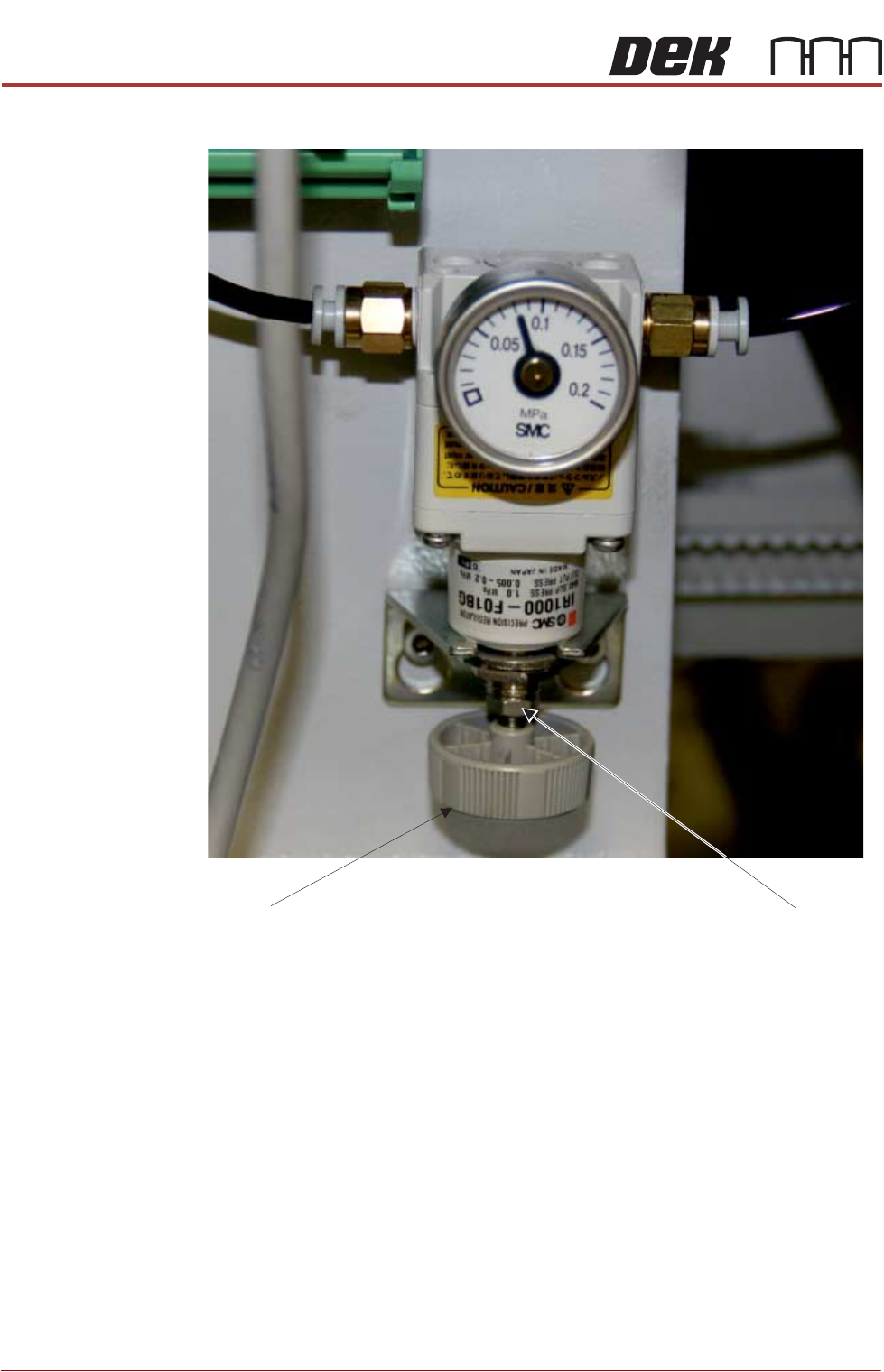

Lock nut
Adjuster
