TRANSPORTATION - MAJOR RELOCATION

MACHINE ASSEMBLY

42.92 Technical Reference Manual Chapter Issue 5, Nov 19

3. Fit the pressure mechanism part of the ProFlow unit to the ProFlow print-

head mechanism bearing block by means of the two securing bolts. Tighten

using a 5mm Allen key.

NOTE

Unit shown in unlatched position to identify bolts.

4. Ensure that the locking clip on the pressure mechanism is pressed over to

the right and clicks into place, as shown in the figure below. This ensures

that the locking clip is in the correct position to secure the transfer head.

5. Locate and fit the ProFlow transfer head unit to the pressure mechanism by

means of the two locating dowels. Slide the unit onto the pressure mecha-

Securing Bolts

Locking Clip

TRANSPORTATION - MAJOR RELOCATION

MACHINE ASSEMBLY

Chapter Issue 5, Nov 19 Technical Reference Manual 42.93

nism. Once the unit is slid fully home, it is secured by closing the locking clip.

6. Connect both curly air lines to the self-seal pneumatic connectors situated

either side of the ProFlow printhead mechanism, figure in Step 7 refers.

7. Fit the electrical connection 9SK61 ProFlow Paste Level Sensor from the

ProFlow unit into the connector (9PL61) located on the left hand side of the

ProFlow, on the print carriage, figure in Step 2 refers.

NOTE

a. If Time to Go is an option, an amplifier is connected to 9PL61 and the

connection is made to 9PL62 on the amplifier.

b. This electrical connection informs the machine of ProFlow fitment and

must always be connected whilst the ProFlow unit is fitted otherwise

damage may occur if machine is run.

ProFlow ATx

Fitting To fit ProFlow ATx to the machine, carry out the following procedures:

• Fit ProFlow ATx System Mount

• Fit Transfer Head

• Level Transfer Head

• Fit Print Medium Cartridge

Mount Plate

TRANSPORTATION - MAJOR RELOCATION

MACHINE ASSEMBLY

42.94 Technical Reference Manual Chapter Issue 5, Nov 19

Fit ProFlow ATx

System Mount

To fit the ProFlow ATx system mount to the machine, carry out the following

procedure:

1. Locate the four captive mount screws and two locator dowels on the rear of

the mount plate of the ProFlow ATx system mount assembly.

2. Lower the ProFlow ATx system mount beam by manually turning the Z-axis

motor pulley counter-clockwise. This action reveals the four captive screw

heads located on the front face of the mount plate.

NOTE

The captive screws may be hidden behind the components on the front of

the mount assembly. Move the beam down until they are fully revealed.

3. Locate the two locator dowel holes on the front face of the print carriage.

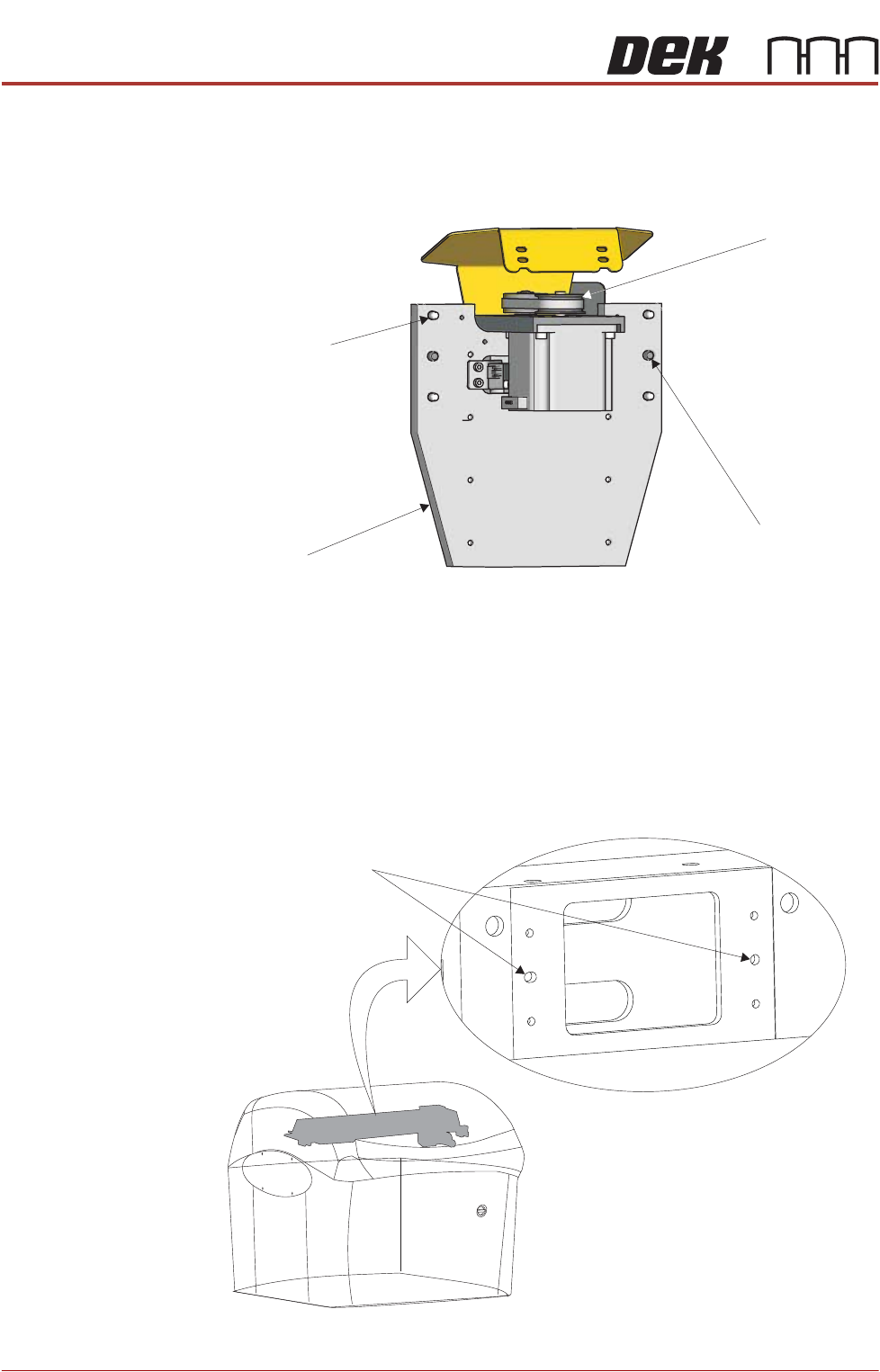

View on Rear of ProFlow Mount

Mount Plate

Captive Mount

Screw (4 Positions)

Locator Dowel

(2 Positions)

Z-Axis Motor

Pulley

Locator Dowel Holes

View on Front Left Corner
