TRANSPORTATION - MAJOR RELOCATION MACHINE ASSEMBLY 42.78 Technical Reference Manual Chapter Issue 5, Nov 19 14. Locate the free floating USB connector in side the right hand side of the machine, behind the front panel. 1…
TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
Chapter Issue 5, Nov 19 Technical Reference Manual 42.77
10. Fit the monitor to the monitor fixing bracket ensuring that all four studs are
located in the keyslots.
11. Secure the monitor using the monitor securing screw.
12. Connect the following cables to the monitor:
• Monitor Power Cable (DC)
•VGA Cable
• Touchscreen Cable (USB)
13. Connect the Rear Monitor USB Connector cable to the remaining USB cable
coming from the machine.
Monitor Fixing Bracket
Monitor Securing Screw
TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
42.78 Technical Reference Manual Chapter Issue 5, Nov 19
14. Locate the free floating USB connector inside the right hand side of the
machine, behind the front panel.
15. Connect the keyboard.
16. Refit the front panel.
Type 2 Covers The monitor may have been removed for transportation, use the following
procedure to fit the monitor:
1. Remove the front panel.
2. Using a 13mm spanner, fit the monitor arm to the machine frame.
3. Locate the following cables stowed within the machine:
• Monitor Power Cable
•VGA Cable
• Touchscreen Cable (USB)
• USB Cable - Rear Monitor USB Connector
4. Feed the cables outside the machine
Securing Bolts
TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
Chapter Issue 5, Nov 19 Technical Reference Manual 42.79

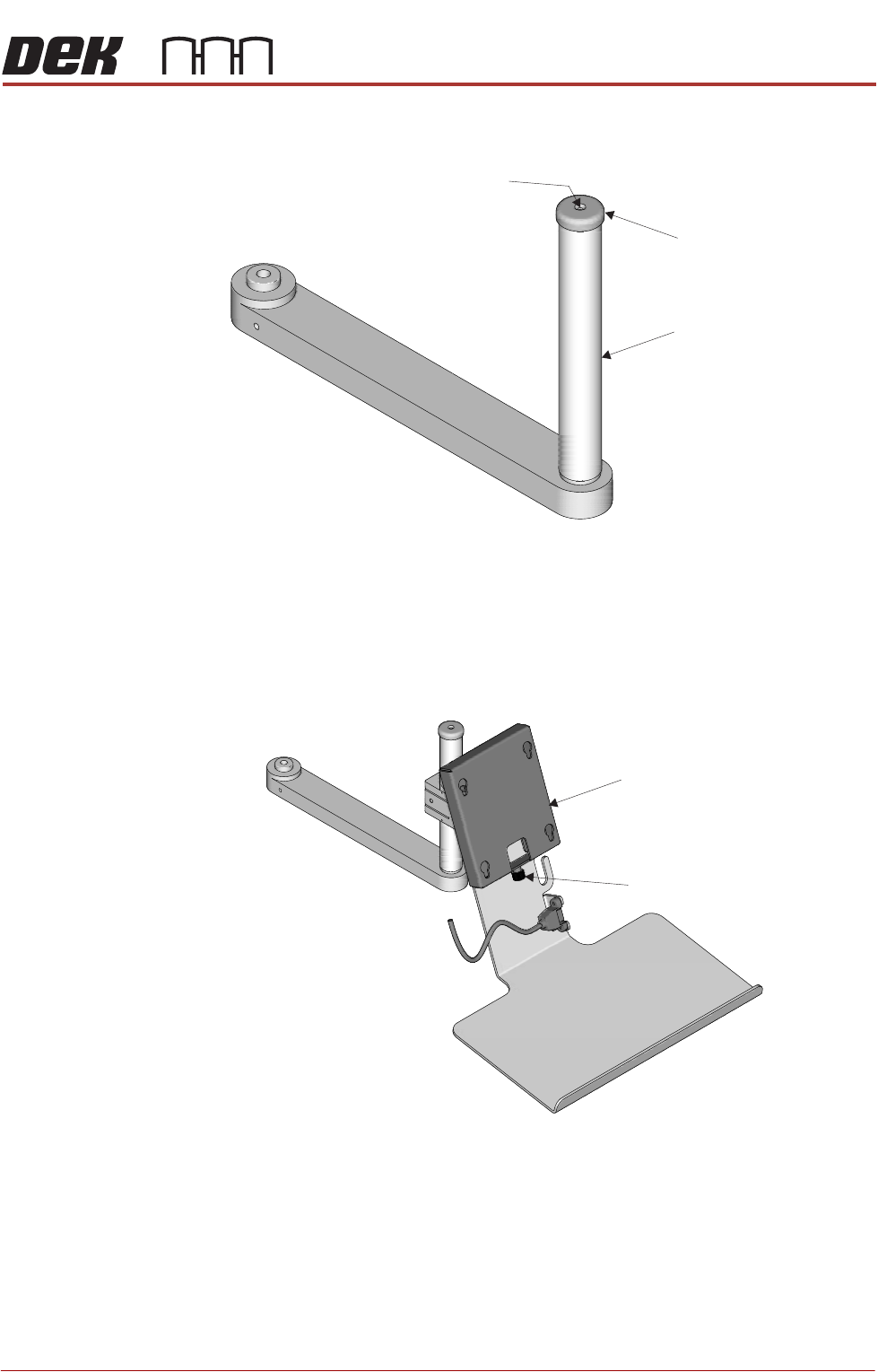

5. Remove the monitor bracket shaft cap using a 2mm Allen key.
6. Fit the monitor bracket on to the monitor bracket shaft and lock the release
catch.
7. Refit the cap.
8. Fit the monitor to the monitor fixing bracket ensuring that all four studs are
located in the keyslots.
9. Secure the monitor using the monitor securing screw.
Securing Screw
Monitor Bracket Shaft
Cap
Monitor Fixing Bracket
Monitor Securing Screw
