TRANSPORTATION - MAJOR RELOCATION TRANSPORTING THE MACHINE Chapter Issue 5, Nov 19 Technical Reference Manual 42.35 ensuring the bracket fits between the two n uts. 8. T ighten the M24 half nut and f ull nut against the …
TRANSPORTATION - MAJOR RELOCATION
TRANSPORTING THE MACHINE
42.34 Technical Reference Manual Chapter Issue 5, Nov 19
2. Loosen (all the way) the M24 half nut and full nut on all four machine legs.

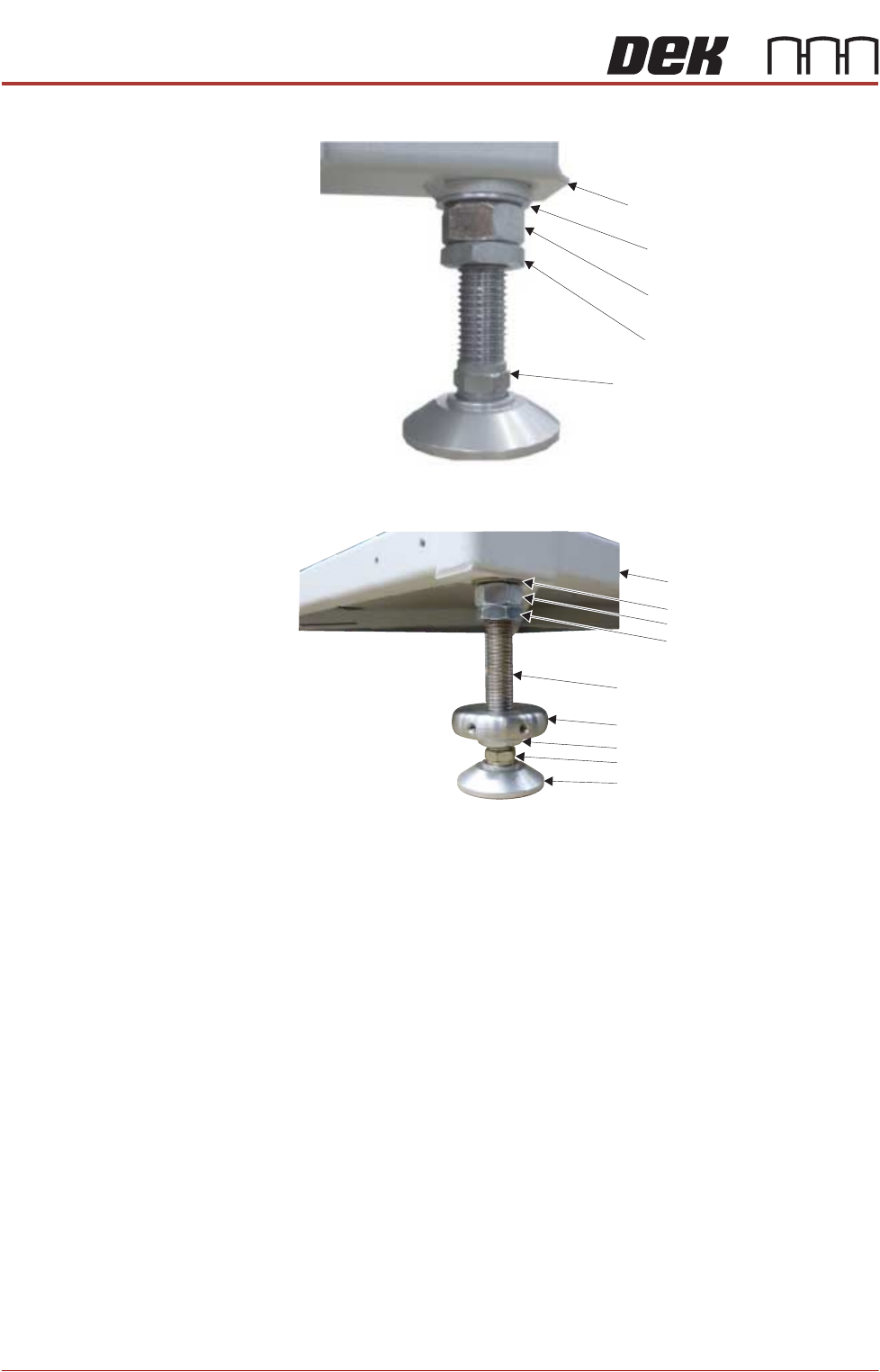

Figure 42-6 Type 1, 2, 3 & 5 machines
Figure 42-7 Type 4 machine
3. Screw the legs into the machine, leaving room for a bracket to fit between
the two nuts.
4. Place the machine on the base of the transportation box.
5. Remove the forklift.
6. Wrap the machine to prevent damage to the panels.
7. The printer is secured to the base of the transportation box with four brackets
each held in place using two M8 hex head woodscrews. Fit all four brackets
M24 Washer
Machine Frame
M24 Full Nut
M24 Half Nut
Leg Adjusting Nut
Washer
Machine Frame
M24 Full Nut
Half Nut
Locating Collar
Leg Bolt
Foot
Half Nut
Leg Adjusting Nut
TRANSPORTATION - MAJOR RELOCATION
TRANSPORTING THE MACHINE
Chapter Issue 5, Nov 19 Technical Reference Manual 42.35

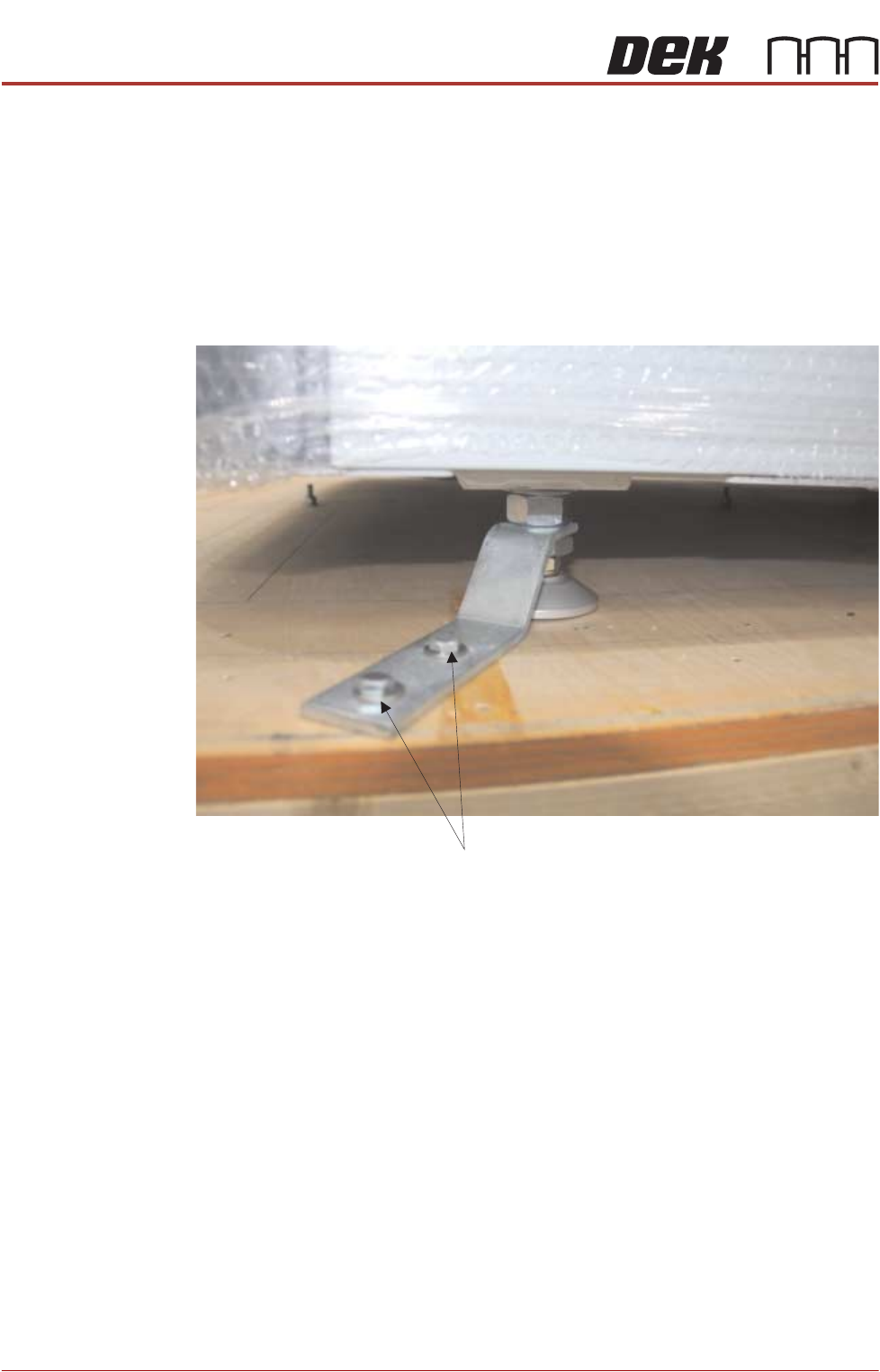

ensuring the bracket fits between the two nuts.
8. Tighten the M24 half nut and full nut against the bracket.
9. Secure three sides of the transportation box with screws.
10. Wrap the loose items and pack securely inside the box.
11. Fit the fourth side panel and lid of the transportation box with screws.
12. The machine is now ready for transportation to its new location.
M 8 x 60 Woodscrews
TRANSPORTATION - MAJOR RELOCATION
RELOCATION
42.36 Technical Reference Manual Chapter Issue 5, Nov 19
RELOCATION
Once the machine has been relocated, the machine can be unpacked and
reassembled using the following procedures.
Unpacking 1. Unscrew the transportation box securing screws and remove the lid and
sides.

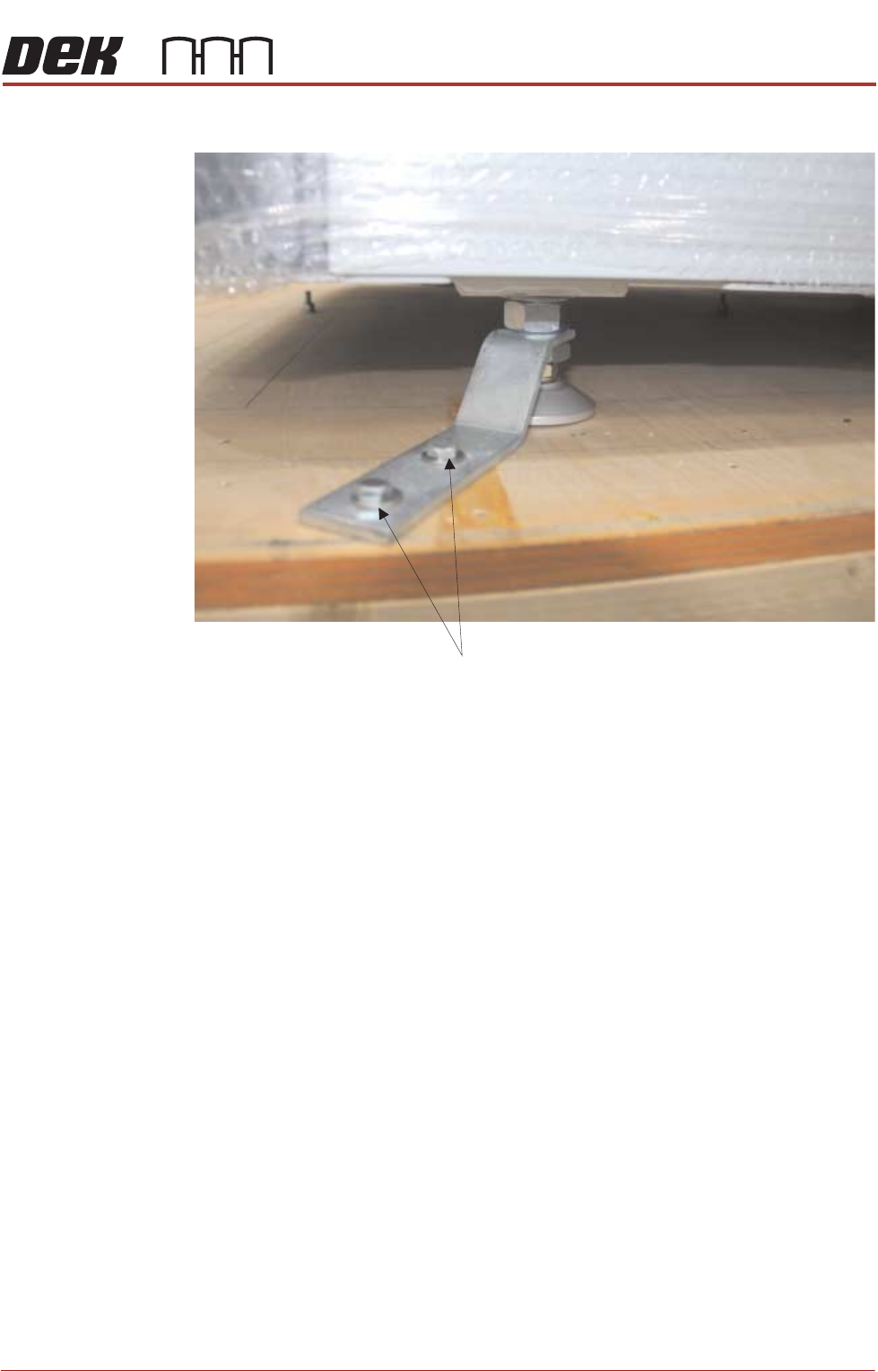

2. The printer is secured to the base of the transportation box with four brackets
each held in place using two M8 hex head woodscrews. Loosen the machine
leg M24 nuts and remove the M8 screws to remove the brackets.
3. Carefully insert the forklift forks to the rear of the machine. See the detail in
previous section, about the lifting capabilities of the machine used to perform
the lift and correct lift locations.
4. Raise the forks, separating the machine from the base of the transportation
box.
5. Between (and slightly forward of) the two rear mounting feet, locate the fifth
mounting foot.
6. For machines with the anti-vibration mounting option, eight leg spacers and
one standard foot are supplied. Ensure the correct number of leg spacers
are fitted to the four corners of the machine when it is located into the
production line.
M 8 x 60 Woodscrews
