TRANSPORTATION - MINOR RELOCATION

TRANSIT BRACKET INSTALLATION

41.4 Technical Reference Manual Chapter Issue 4, May 19

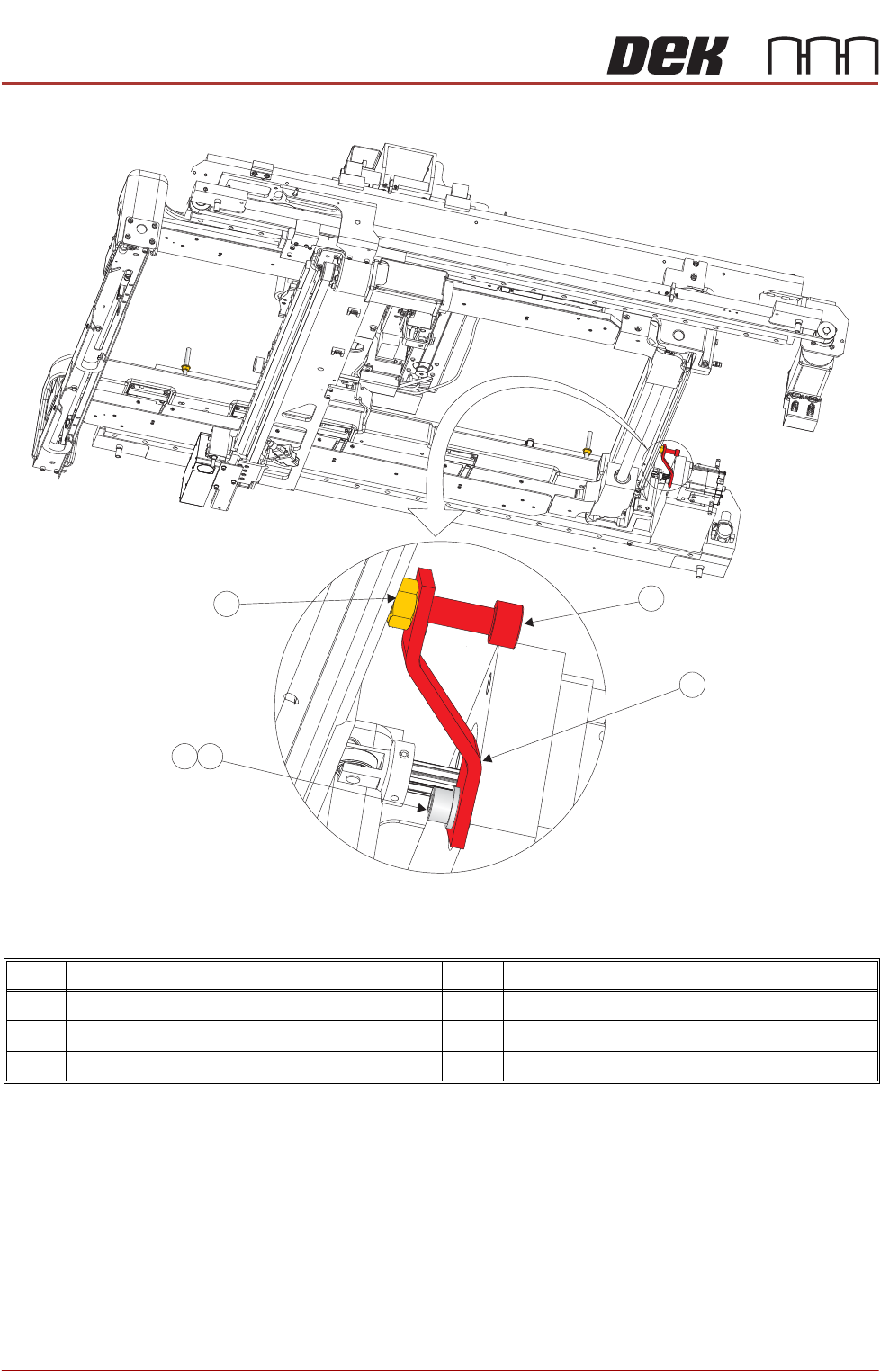

Figure 41-2 Rear Chase Transit Bracket

8. Adjust the angle of the rear chase transit bracket (12) to align the transit

adjustment screw (11) to the centre of the chase/ASM. Tighten the M6 cap

head screw (13).

9. Adjust the transit adjust screw (7), on both the left chase transit brackets (5),

and the transit adjustment screw (11) on the rear chase transit bracket (12),

so that the chase is moved approximately 5mm away from all three actuator

shafts.

10. Lock the transit adjustment screws in position with the transit adjustment

screw lock nuts (6) and (15).

11. Place the front and rear transit brackets (2) over the M8 chase studs (1).

Item Description Item Description

11 Transit Adjustment Screw 14 M6 Washer

12 Rear Chase Transit Bracket 15 Transit Adjustment Screw Lock Nut

13 M6 Cap Head Screw

View on Right Hand Underside

TRANSPORTATION - MINOR RELOCATION

TRANSIT BRACKET INSTALLATION

Chapter Issue 4, May 19 Technical Reference Manual 41.5

12. Loosely attach the adaptor bracket (8) at each end of the front and rear

transit bracket (2) to the left and right printheads using an M5 cap head

screw (9) and M5 washer (10).

13. Screw an M8 nut (3) and M8 washer (4) onto each of the four M8 chase

studs (1) and adjust so that the front and rear transit brackets are nipped

between the nuts and washers, ensuring that the chase is not lifted at this

time.

14. Fully tighten the M5 cap head screws (9) left loose in Step 12.

15. Slacken the M8 nuts (3) directly below the front and rear transit brackets (2).

16. Adjust the M8 nuts (3) above the front and rear transit brackets (2) to lift the

chase off the roller bearings (in all four positions), ensuring that the roller

counter plates are not touching the chase clamps.

17. Tighten the M8 nuts (3) directly below the front and rear transit brackets (2).

18. Refit/close any disturbed covers.

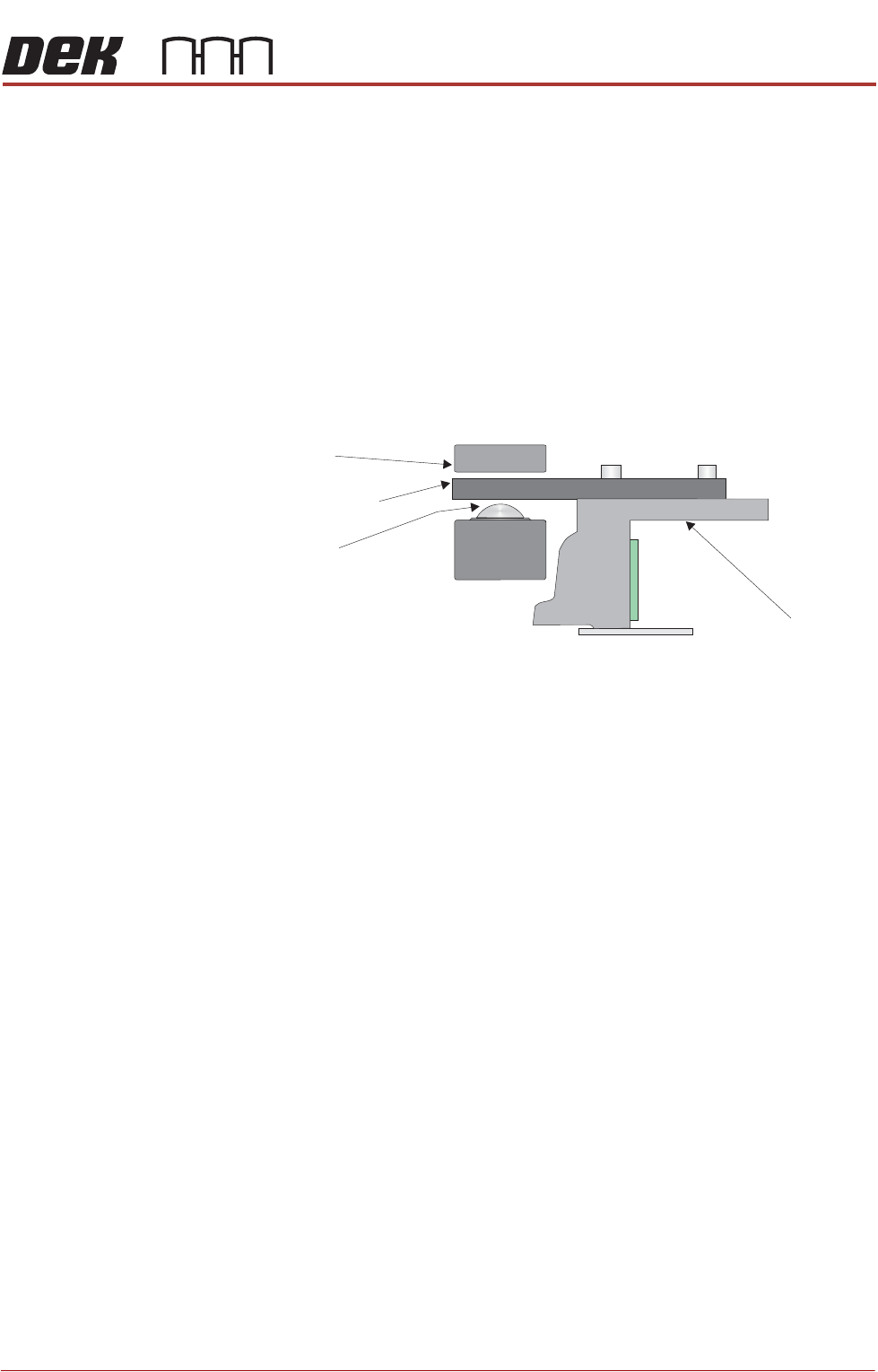

Chase

Chase Clamp

Roller Bearing

Roller Counter Plate

TRANSPORTATION - MINOR RELOCATION

TRANSIT BRACKET INSTALLATION

41.6 Technical Reference Manual Chapter Issue 4, May 19

Cover Frame

Transit Bracket

This bracket is to be fitted to printers with Anti Vibration (AV) mounts fitted to the

cover frame. It is located between the frame (adjacent to the print illumination

lights) and the carriage rail. There are neoprene washers stuck to the frame in

the position the transit bracket is to be fitted (See vignette in graphic below).

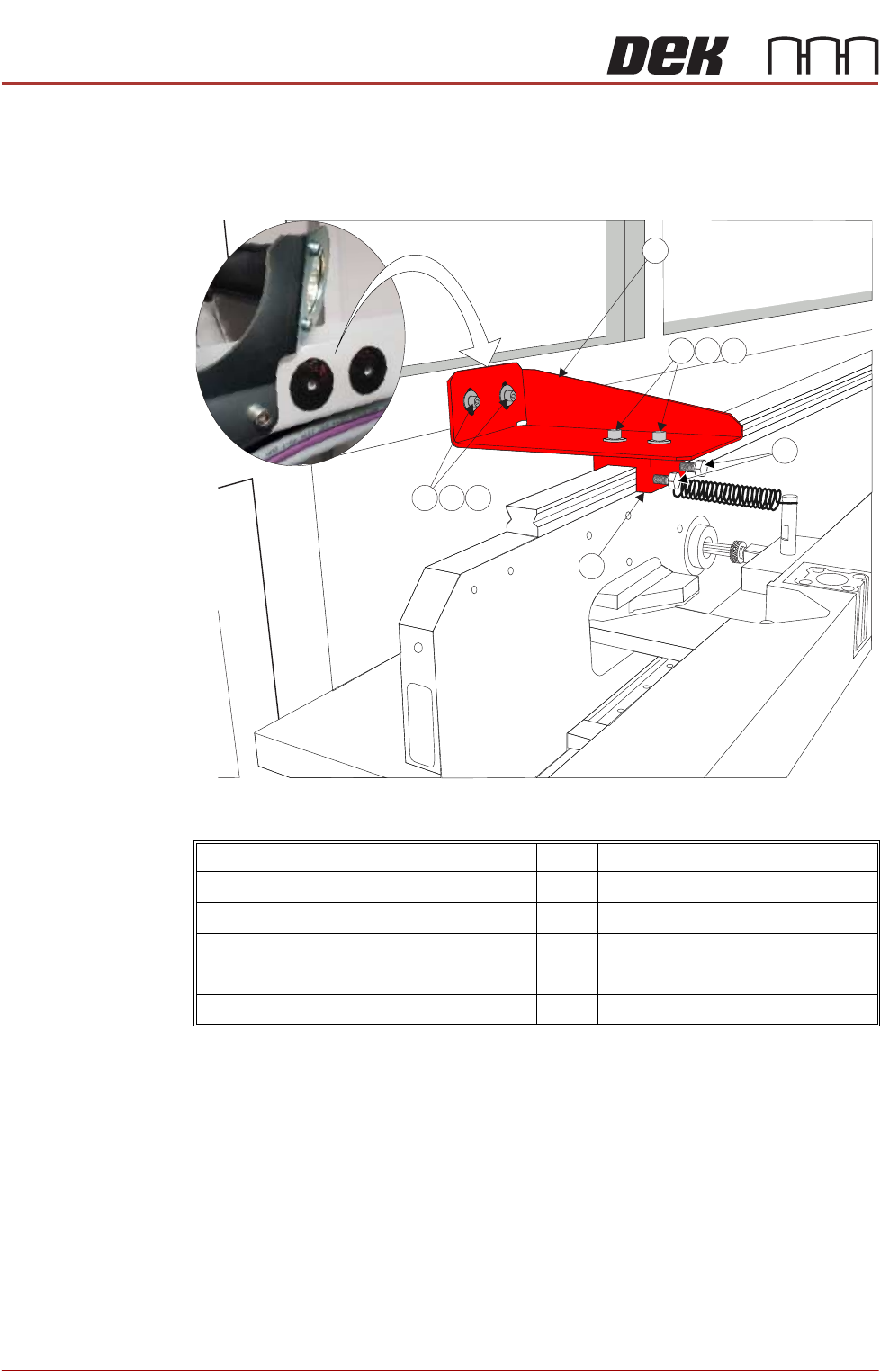

Figure 41-3 Cover Frame Transit Bracket

1. Ensure mating surfaces are clean and free of debris.

2. Place the cover frame transit bracket (1) and the block (6) (as an assembly)

over the carriage rail. The M5 screws (7) along with the crinkle washers (8)

and washers (9) should be sufficiently loose to allow adjustment.

3. Locate the M5 cap head screws (2) along with the crinkle washers (3) and

washers (4) through the bracket and into the frame and leave sufficiently

loose to allow movement.

4. Raise or lower the bracket (1) so it abuts the frame to achieve best fit and

the block is level on the carriage rail.

5. Tighten the M5 cap head screws (2).

6. Tighten the M5 cap head screws (7)

Item Description Item Description

1 Cover Frame Transit Bracket 6 Block

2 M5 Cap Head Screw 7 M5 Cap Head Screw

3 M5 Crinkle Washer 8 M5 Crinkle Washer

4 M5 Washer 9 M5 Washer

5 M6 Nylon Screw
