TRANSPORTATION - MAJOR RELOCATION MACHINE ASSEMBLY Chapter Issue 5, Nov 19 Technical Reference Manual 42.77 10. Fit the monitor to the monitor fixing bracket ensuring that all four studs are located in the keyslots. 1 1.…
TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
42.76 Technical Reference Manual Chapter Issue 5, Nov 19
trapped between the arm and bracket.
6. Secure the monitor arm to the bracket with three screws from below.
7. Using a 2.5mm Allen key, remove the end block from the top of the
adjustment bars.
8. Slide the monitor bracket on to the adjustment bars and tighten the locking
thumbscrew.
9. Refit the end block.

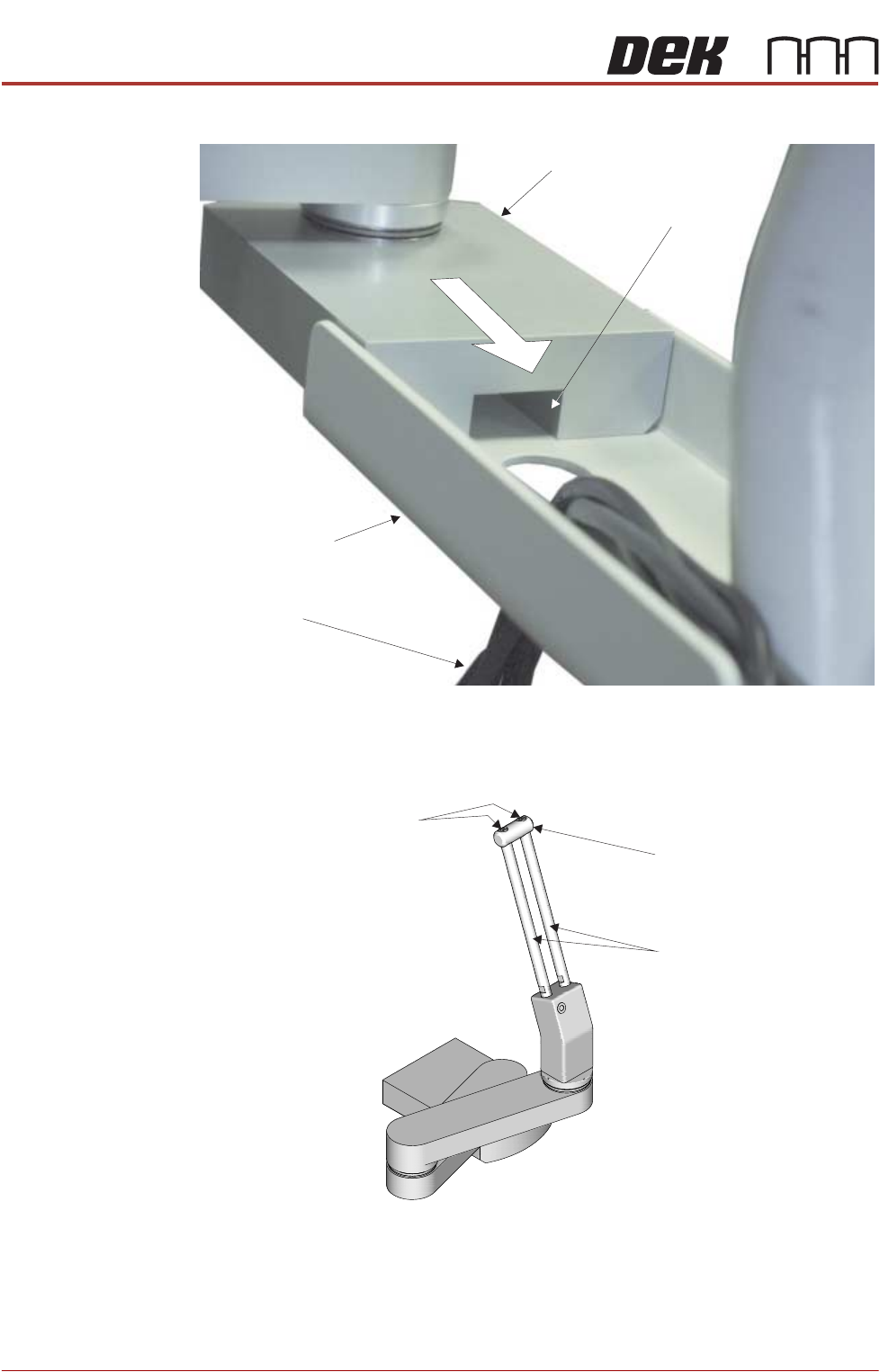

Monitor Support Arm
MMI Cable Channel
MMI Cables
Monitor Support
Arm Bracket
Securing Screws
End Block
Adjustment Bars
TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
Chapter Issue 5, Nov 19 Technical Reference Manual 42.77

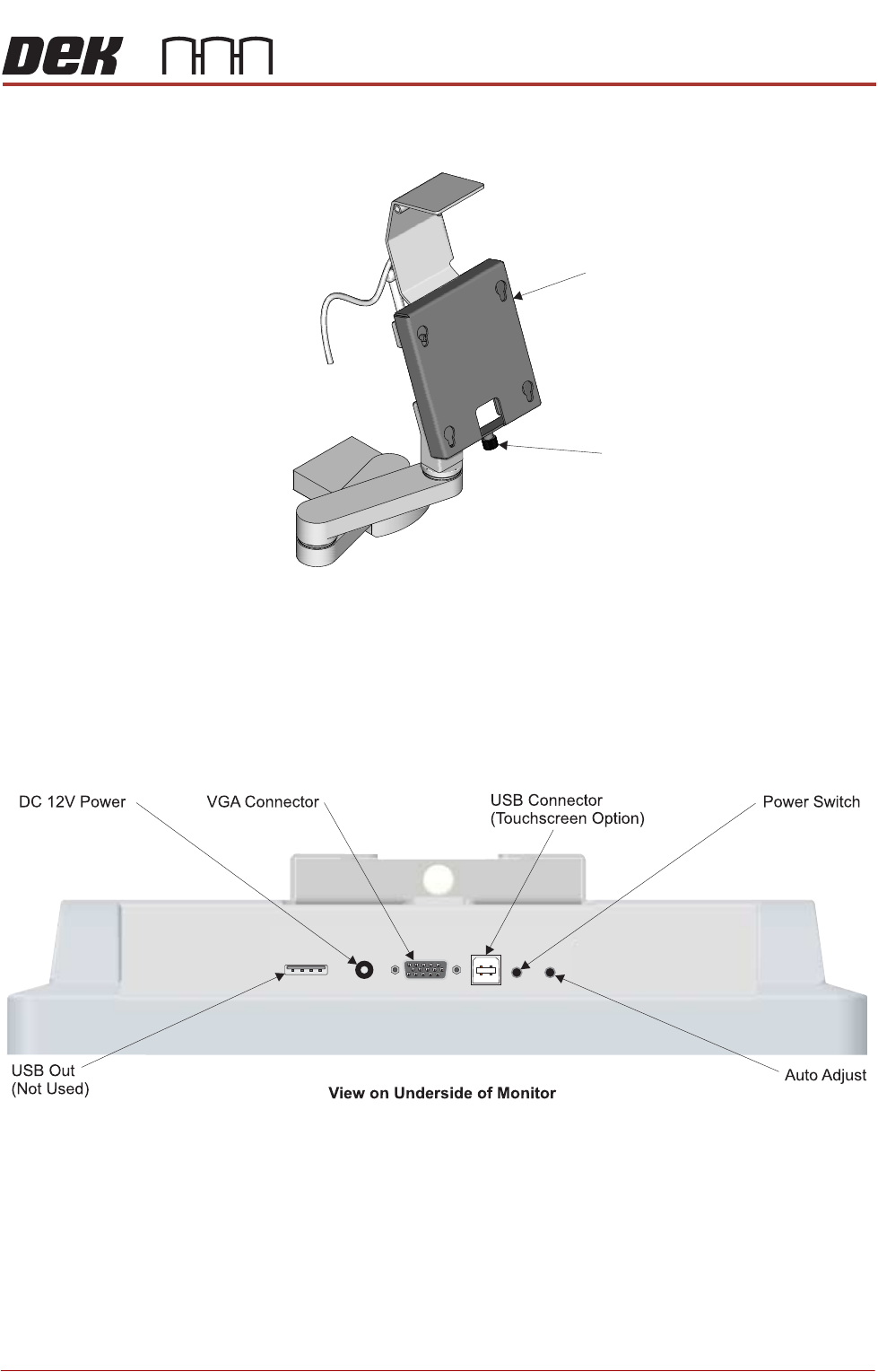

10. Fit the monitor to the monitor fixing bracket ensuring that all four studs are
located in the keyslots.
11. Secure the monitor using the monitor securing screw.
12. Connect the following cables to the monitor:
• Monitor Power Cable (DC)
•VGA Cable
• Touchscreen Cable (USB)
13. Connect the Rear Monitor USB Connector cable to the remaining USB cable
coming from the machine.
Monitor Fixing Bracket
Monitor Securing Screw
TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
42.78 Technical Reference Manual Chapter Issue 5, Nov 19
14. Locate the free floating USB connector inside the right hand side of the
machine, behind the front panel.
15. Connect the keyboard.
16. Refit the front panel.
Type 2 Covers The monitor may have been removed for transportation, use the following
procedure to fit the monitor:
1. Remove the front panel.

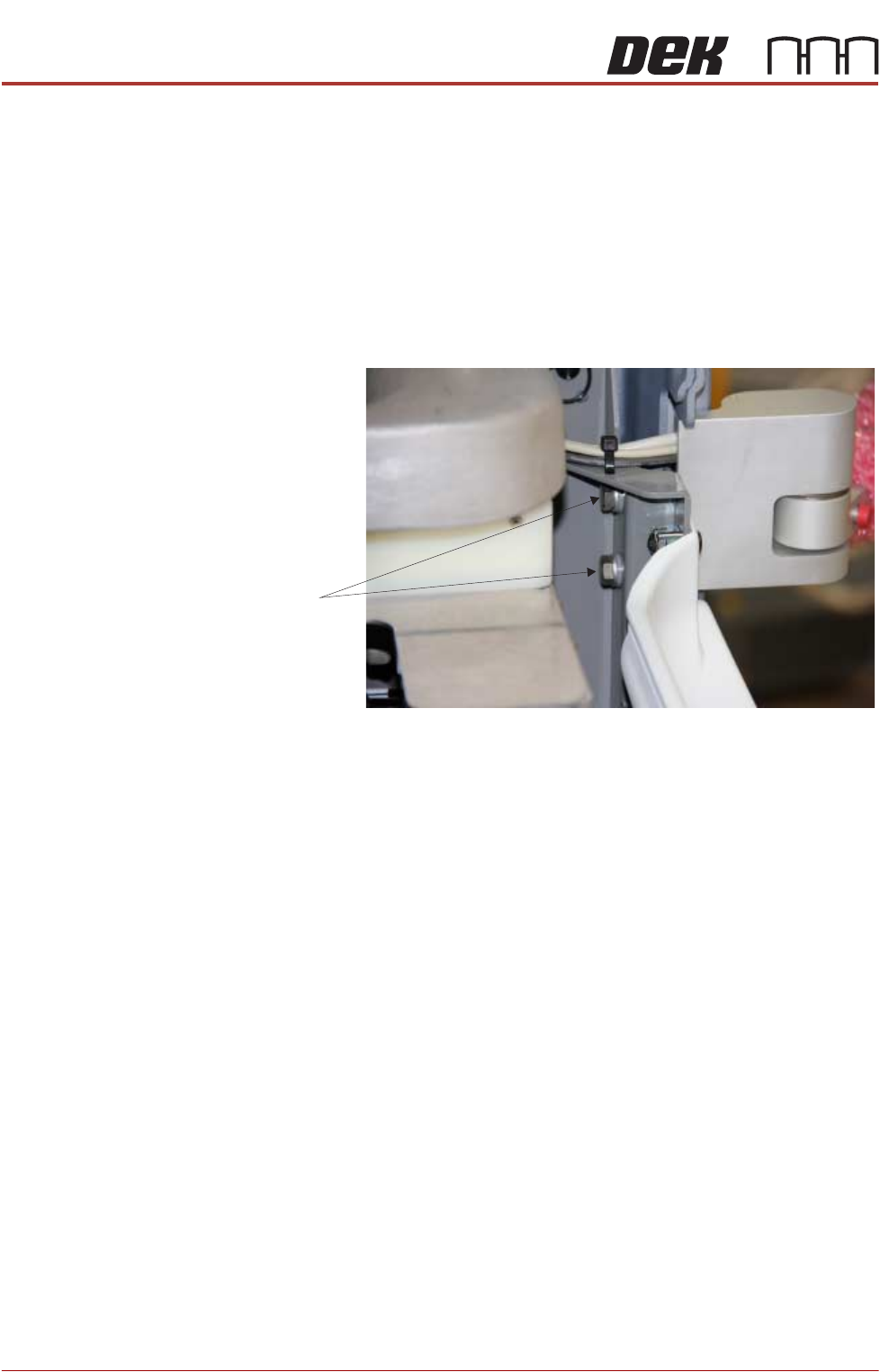

2. Using a 13mm spanner, fit the monitor arm to the machine frame.
3. Locate the following cables stowed within the machine:
• Monitor Power Cable
•VGA Cable
• Touchscreen Cable (USB)
• USB Cable - Rear Monitor USB Connector
4. Feed the cables outside the machine
Securing Bolts
