TRANSPORTATION - POWER UP HIGH THROUGHPUT CONVEYOR (HTC) Chapter Issue 3, Nov 19 Technical Reference Manual 43.19 The LCD screen on the PLC displays ‘ 1 Stage’ on the top line. Fast/Normal Mode For a conveyor to operate …
TRANSPORTATION - POWER UP
HIGH THROUGHPUT CONVEYOR (HTC)
43.18 Technical Reference Manual Chapter Issue 3, Nov 19
HIGH THROUGHPUT CONVEYOR (HTC)
Introduction

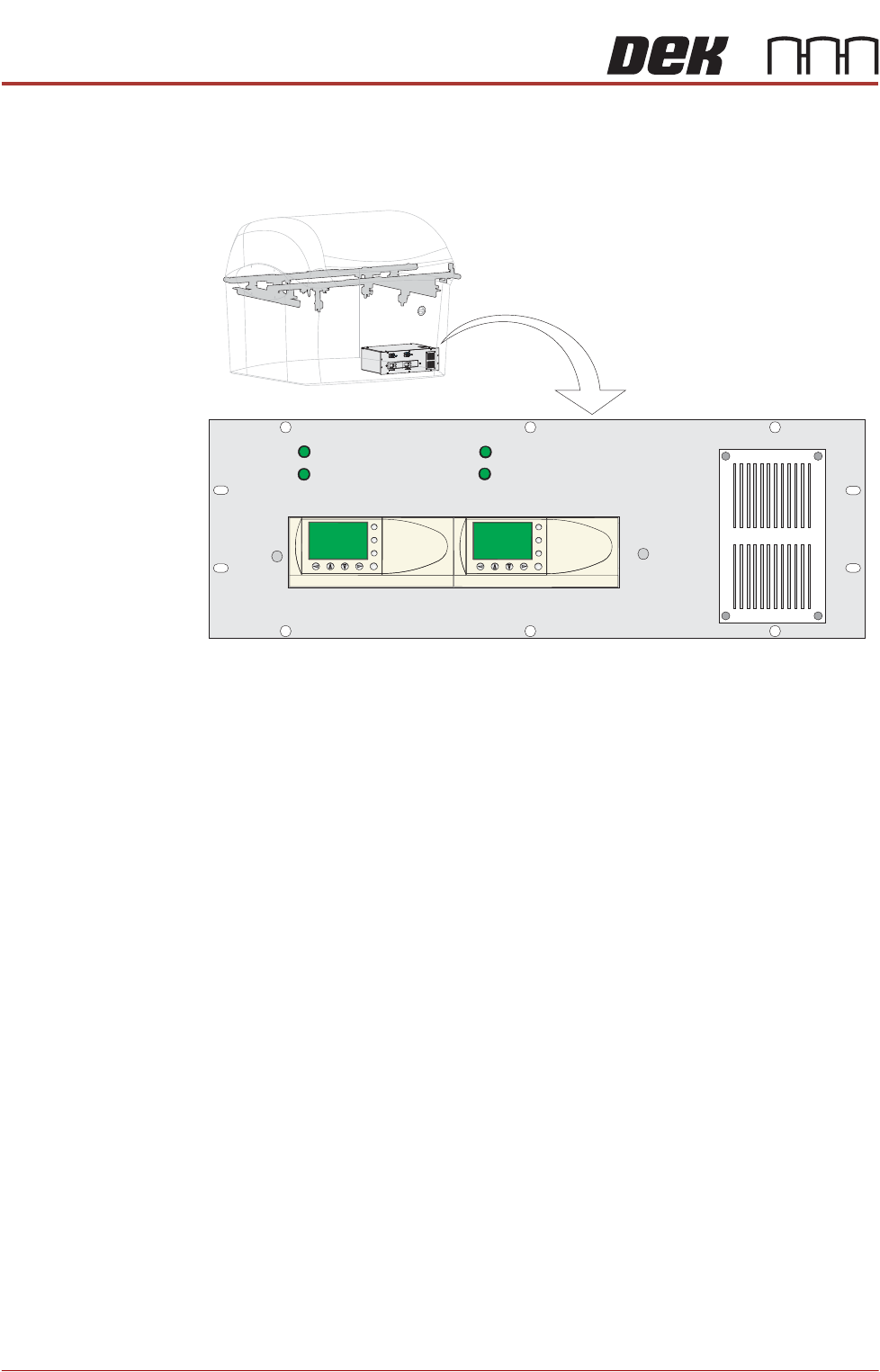

Figure 43-4 HTC Controller Location
The HTC controller (M27) enclosure is located behind the front maintenance
cover just below the mains isolator switch.
The M27 consists of a Programmable Logic Controller (PLC) for each auxiliary
conveyor. Above each PLC are the switches for selecting between 3-stage/
single stage and fast/normal mode.
On machine initialisation, each auxiliary conveyor PLC needs to detect the
machine ‘System Power’ and a ‘Downline Available’ signal before the system
starts operating. If the machine is being run in a stand-alone environment, the
‘Downline Available’ signal from the downline machine can be mimicked by
shorting pins 1 & 2 of loom Part No. 160645 to the downline machine.

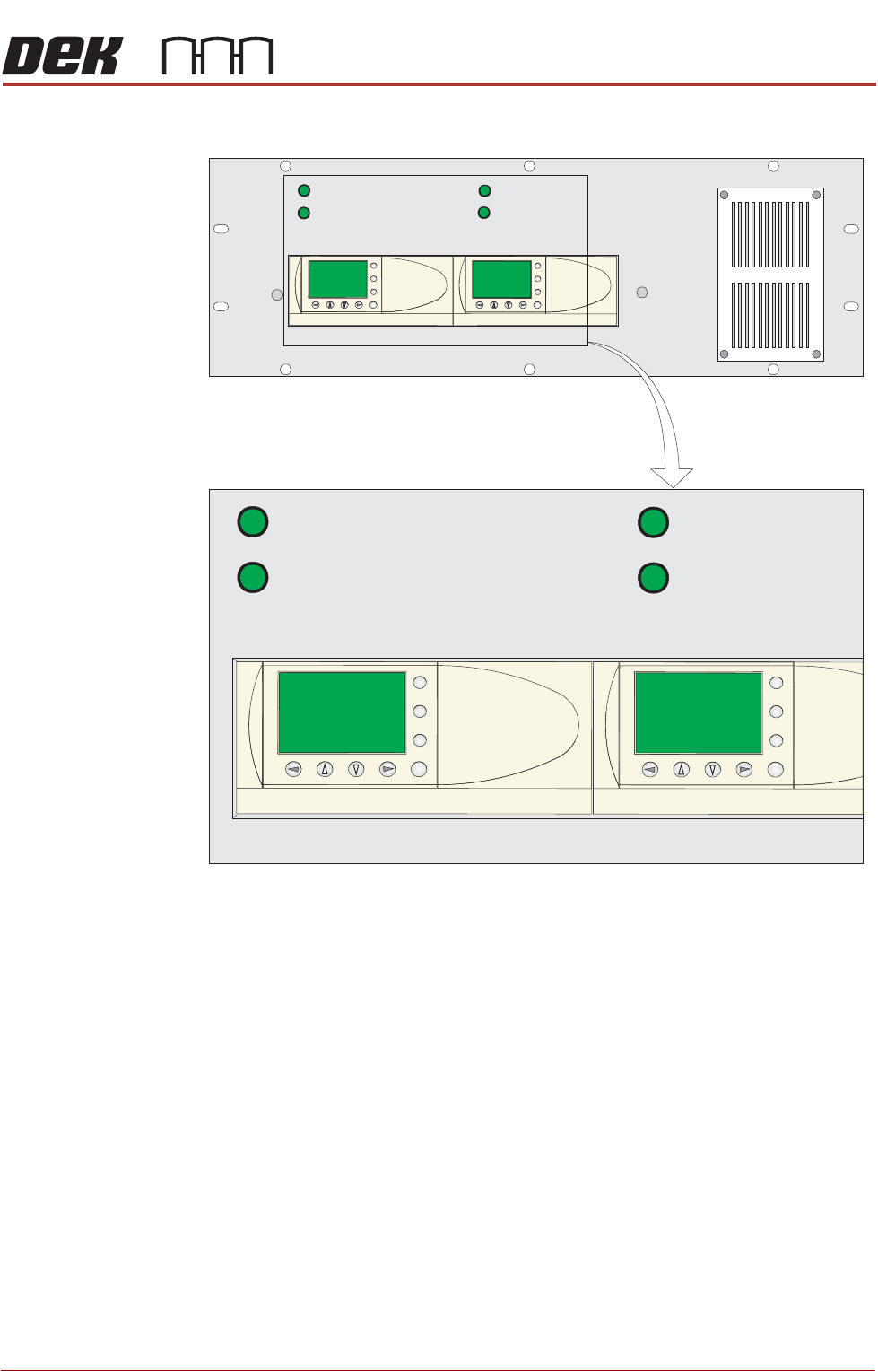

Operation The 1/3 Stage Operation and Fast Transfers Disabled buttons are LED illumi-
nated push buttons and are configured as follows:
3-Stage/Single
Stage Mode
For 3-stage mode, both 1/3 Stage Operation buttons must be OFF (LED
extinguished). The LCD screen on the PLC displays ‘3 Stage’ on the top line.
For single stage mode, both 1/3 Stage Operation buttons must be ON (LED lit).
1/3 STAGE
OPERATION
1/3 STAGE
OPERATION
FAST TRANSFERS
DISABLED
FAST TRANSFERS
DISABLED
R/H CONVEYOR L/H CONVEYOR
ESC
OK
+
-
ESC
OK
+
-
TRANSPORTATION - POWER UP
HIGH THROUGHPUT CONVEYOR (HTC)
Chapter Issue 3, Nov 19 Technical Reference Manual 43.19
The LCD screen on the PLC displays ‘1 Stage’ on the top line.
Fast/Normal Mode For a conveyor to operate in fast transfer mode, both Fast Transfer Disabled
buttons must be OFF (LED extinguished). The LCD screen on the PLC displays
‘Fst.Trans.’ on the bottom line for 5 seconds on power-up or when the button
is switched to OFF.
For a conveyor to operate in normal transfer mode, both Fast Transfer Disabled
buttons must be ON (LED lit). Normal transfer mode is not displayed on the
PLC.
Auxiliary
Conveyors
Use the following procedure to set the HTC auxiliary rails:
Height Setting To check and if required adjust the height of the auxiliary conveyor to the print
station rails carry out the following:
1. Using a Board Clamp Setting Plate Part No. 88140403-01, place the plate
on the auxiliary conveyor transport belts.
2. Place a second board clamp setting plate onto the transport belts of the print
station.
3. Ensure the plates abut and are fully supported by the transport belts.
1/3 STAGE
OPERATION
1/3 STAGE
OPERATION
FAST TRANSFERS
DISABLED
FAST TRANSFERS
DISABLED
R/H CONVEYOR L/H CONVEYOR
1/3 STAGE
OPERATION
1/3 STAGE
OPERATION
FAST TRANSFERS
DISABLED
FAST TRANSFERS
DISABLED
R/H CONVEYOR L/H CONVEYOR
ESC
OK
+
-
ESC
OK
+
-
ESC
OK
+
-
ESC
OK
+
-
TRANSPORTATION - POWER UP
HIGH THROUGHPUT CONVEYOR (HTC)
43.20 Technical Reference Manual Chapter Issue 3, Nov 19

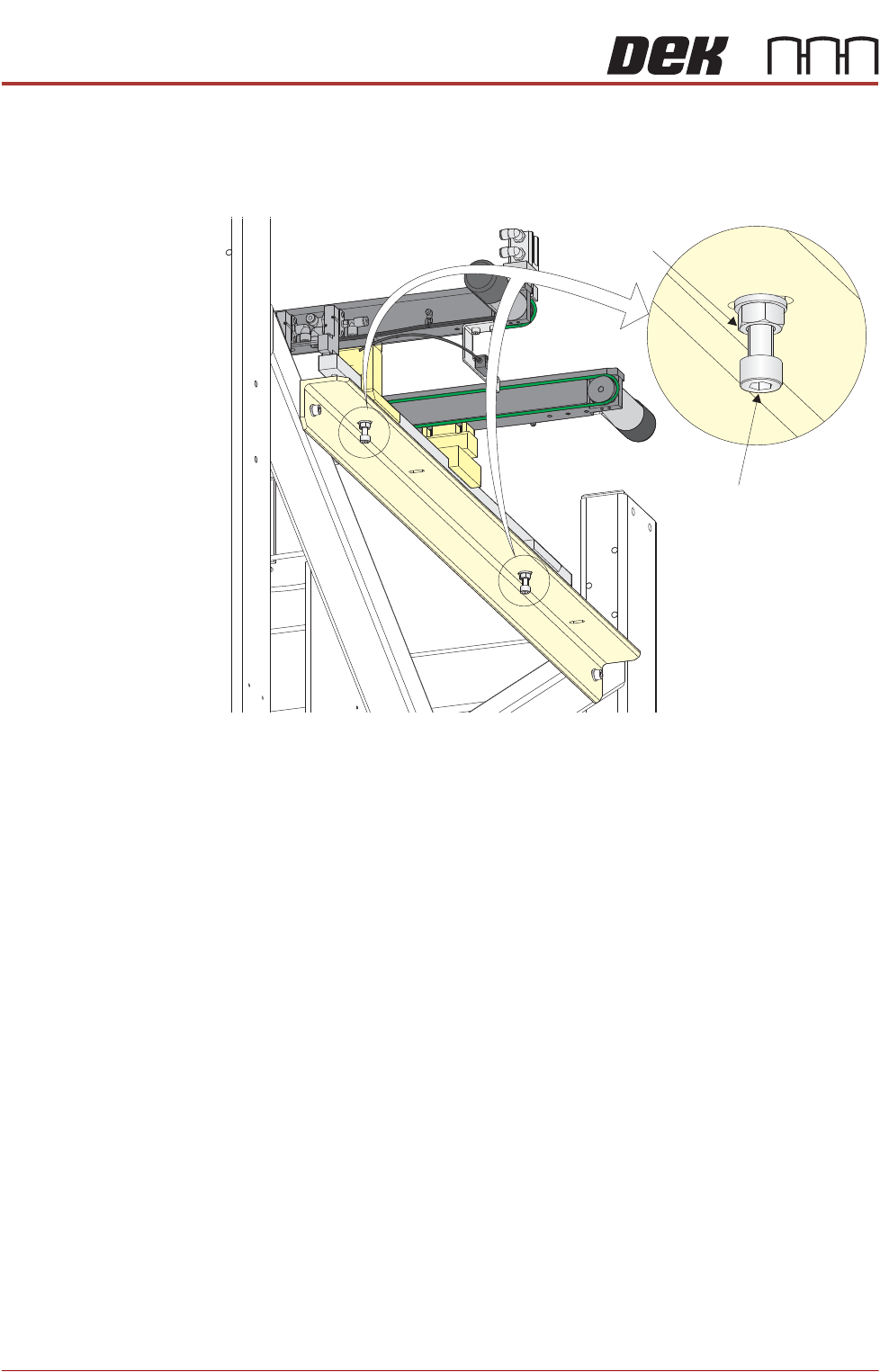

4. Using a spirit level placed across both setting plates, check the plates are
level.
5. If adjustment is required, loosen the two locknuts on the auxiliary conveyor
height adjustment bolts.
6. To alter the height of the conveyor carefully adjust both height adjustment
bolts.
7. Carefully adjust the height of the conveyor rails until they match the print
station rails.
8. Re-tighten the locknuts loosened in Step 5 and repeat the check.
9. If adjustment has occurred, carry out Auxiliary Conveyor Levelling check.
10. Fit the side covers and panels that were previously removed.
Auxiliary Conveyor
Height Adjustment
Bolt
Locking Nut
