TRANSPORTATION - MAJOR RELOCATION MACHINE ASSEMBLY Chapter Issue 5, Nov 19 Technical Reference Manual 42.107 10. Fit the combined cap and 4mm tubing to the solvent container . 1 1. C onnect the cable from the extern al s…
TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
42.106 Technical Reference Manual Chapter Issue 5, Nov 19
2. Move the angle brackets away from the support plate.
3. Remove the rear cover of the machine (front cover on type 4 machines).
4. Place the external solvent tank on the floor beneath its intended location.
5. Supporting its weight, lift the external solvent tank and locate the support
plate on the machine base frame, as shown in the graphic below:
6. Place a full solvent container into the external solvent tank.
7. Remove the cap from the solvent container.
8. Locate the combined solvent container cap and 4mm tubing, inside the
machine.
9. Pass the cap through the hole in the external solvent tank base plate, from
underneath.
Support Plate
Angle Brackets
Support Plate Machine Base Frame (Cross Section)
NOTE
Baffles removed for clarity
TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
Chapter Issue 5, Nov 19 Technical Reference Manual 42.107

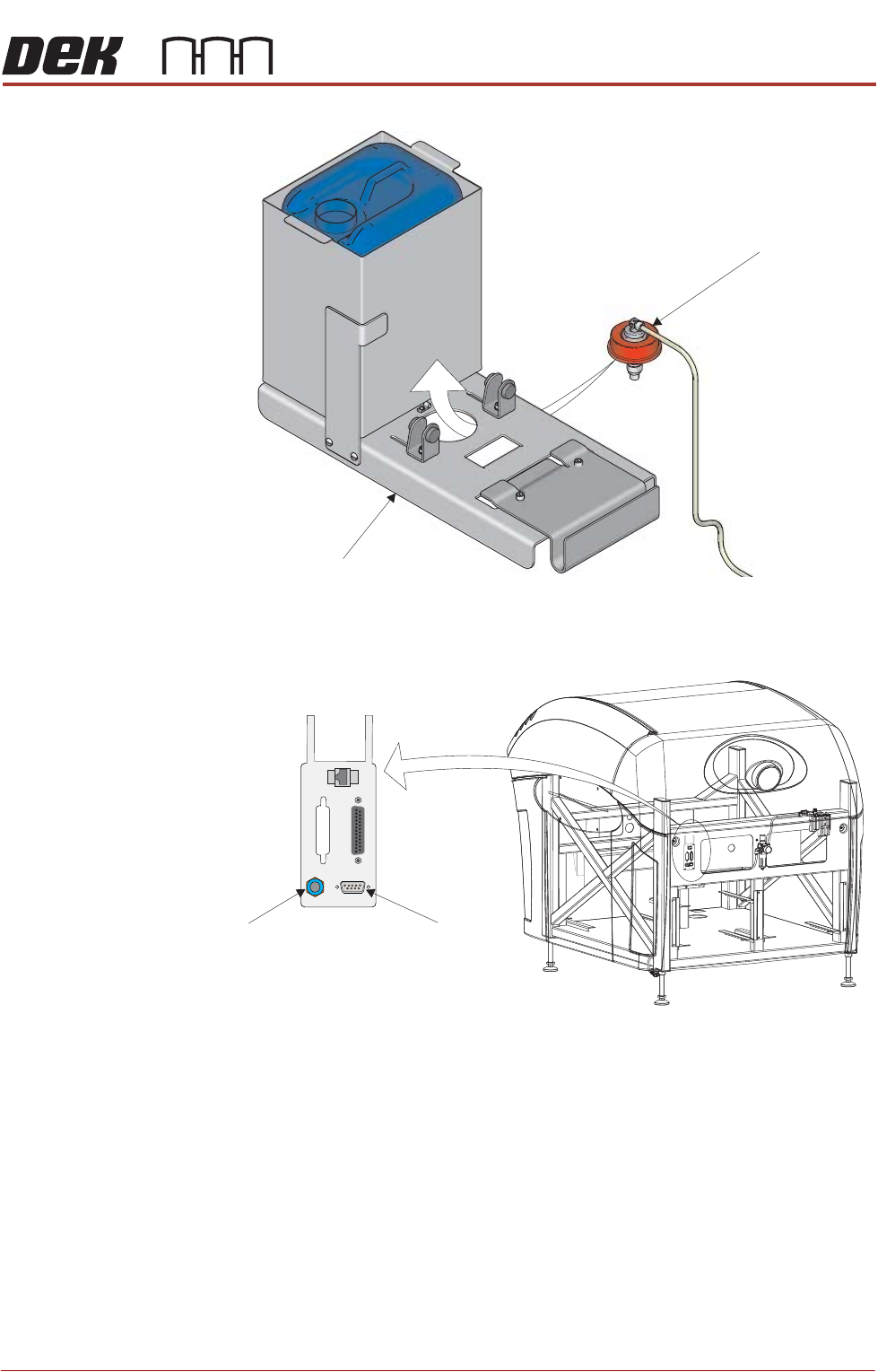

10. Fit the combined cap and 4mm tubing to the solvent container.
11. Connect the cable from the external solvent tank to 9SK69 on the external
services panel.
12. Fit the rear cover (front cover on type 4 machines).
Solvent Container Cap
Base Plate
View on Rear of Machine
POWER ON
PART No. 160740
M/C AVAILABLE
BOARD AVAILABLE
BOARD PASS
D
O
W
N
L
IN
E
BOARD AVAILABLE
BOARD PASS
M/C AVAILABLE
U
P
L
IN
E
FMI POD
Solvent Fluid
Connector
Solvent Sensor
9SK69
TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
42.108 Technical Reference Manual Chapter Issue 5, Nov 19

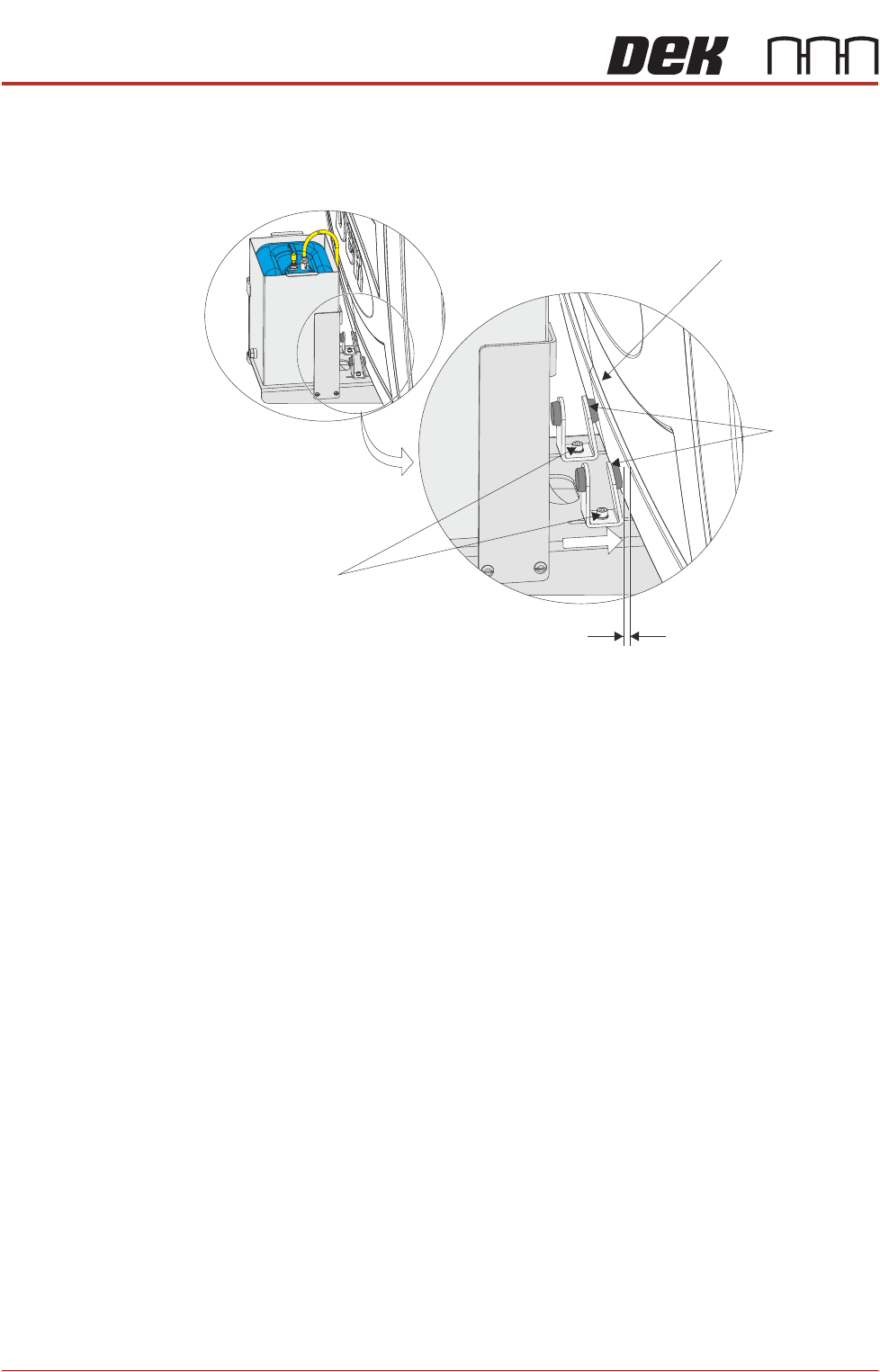

13. Slide the angle brackets towards the machine cover, ensuring that either the
vertical or sloping side (as appropriate), is 1.5 to 2.5mm from the machine
cover.
14. Tighten the two M5 cap head securing screws.
Tooling and Print
Medium
Applicators
Any material applicator or tooling removed from the machine prior to it’s move
should be refitted. Refer to the individual item chapter or the tutorial set supplied
with the machine.
Power Up On completion of relocation, carry out the procedure in the Transportation -
Power Up chapter.
0DFKLQH&RYHU
6HFXULQJ6FUHZV
$QJOH
%UDFNHWV
PP*DS
