STINGER
EQUIPMENT LABELS AND NOTICES
Chapter Issue 4, Nov 19 Technical Reference Manual 38.3
EQUIPMENT LABELS AND NOTICES
Equipment
Specific Safety
Notices
Where an option could represent a potential hazard, labels are attached in
appropriate places on the equipment.
Compliance Labels Compliance labels may also be fitted to indicate the company, country and date
of manufacture.

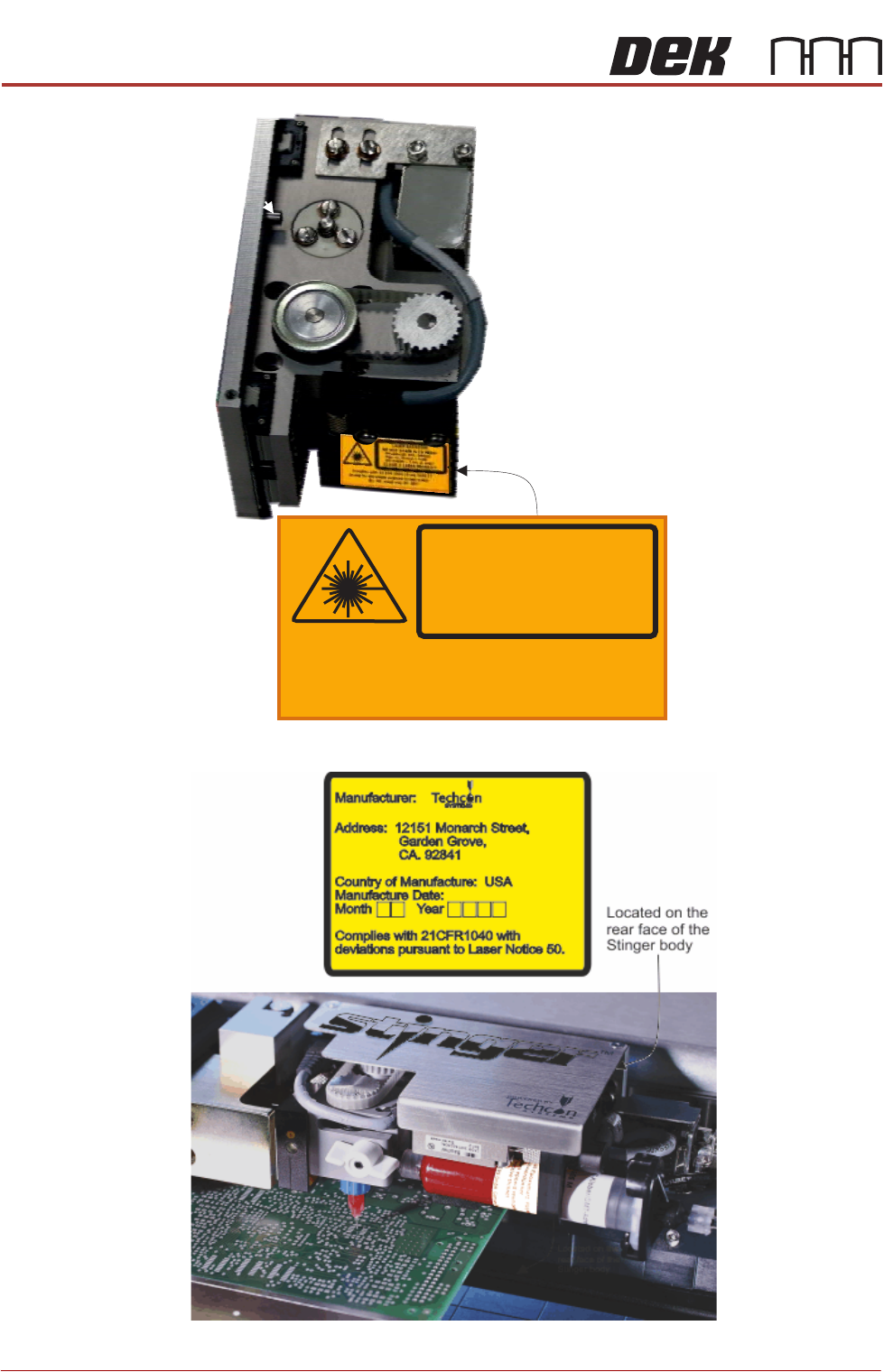

Equipment Label
Locations
38.4 Technical Reference Manual Chapter Issue 4, Nov 19
STINGER
EQUIPMENT LABELS AND NOTICES
LASER RADIATION
DO NOT STARE IN TO BEAM
Wavelength: 620 . . . . 680nm
Max. av. Output: <1mW
IEC 60825 - 1, Ed, 2, 2007
CLASS 2 LASER PRODUCT
DO NOT STARE IN TO BEAM
Wavelength: 620 . . . . 680nm
Max. av. Output: <1mW
IEC 60825 - 1, Ed, 2, 2007
CLASS 2 LASER PRODUCT
Complies with 21CFR 1040.10 and 1040.11
except for deviations pursuant to laser notice
No. 50. dated June 24. 2007
Complies with 21CFR 1040.10 and 1040.11
except for deviations pursuant to laser notice
No. 50. dated June 24. 2007
Mounting Assembly (beneath the top cover)
STINGER
ELEMENTS
Chapter Issue 4, Nov 19 Technical Reference Manual 38.5

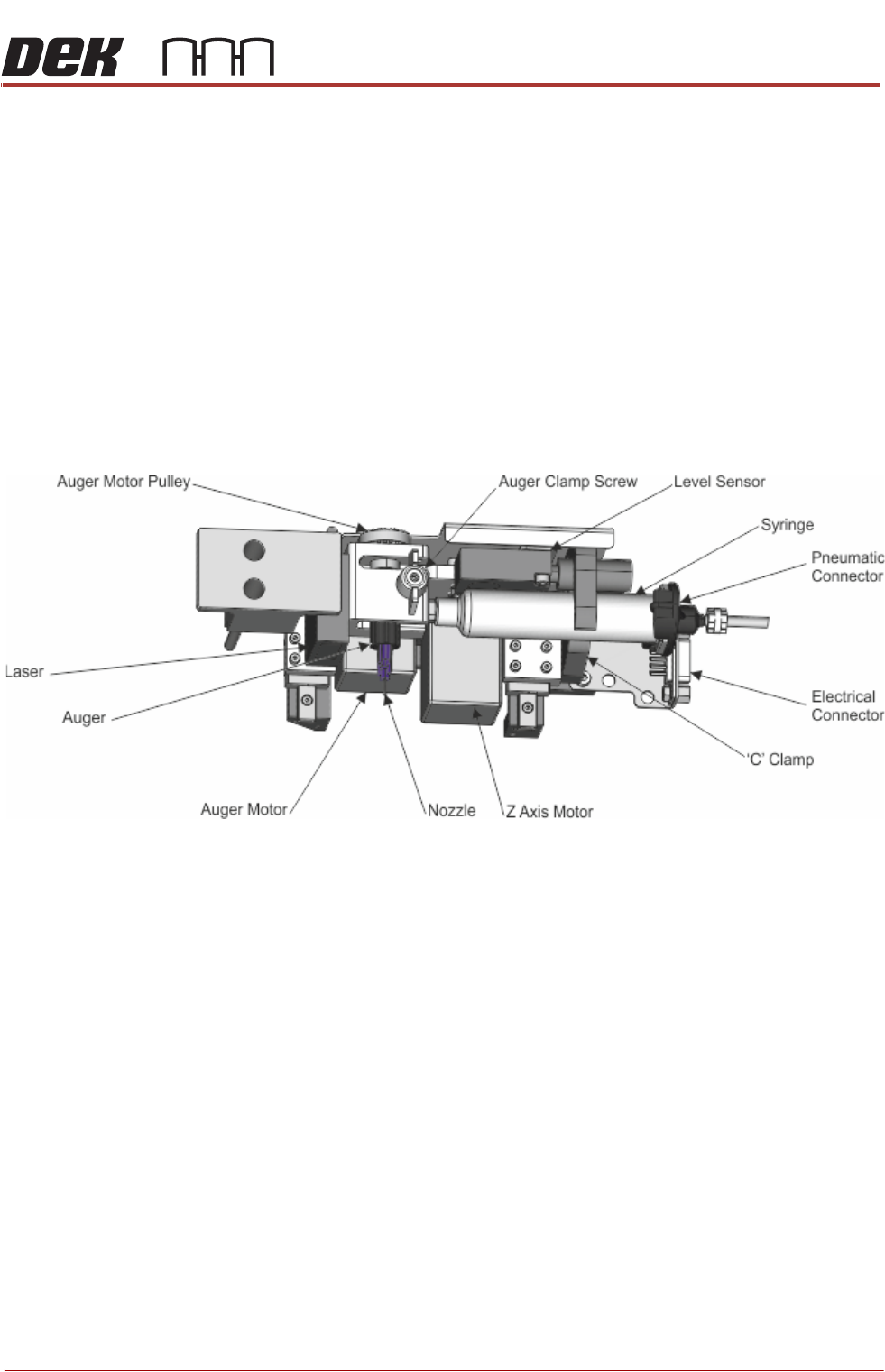

ELEMENTS
The assembly comprises:
• Auger and auger drive motor
• 10cc Syringe and dispense nozzle
• Z-axis motor
• Laser light sensor
• Consumable low level sensor
• Pneumatic regulator
• Electrical and pneumatic control interface
• Purge Station (optional)
The syringe attaches to an auger valve at the outlet end and to a pneumatic
supply at its input. A ‘C’ shaped clamp holds the unit in position at the rear and
it is fixed at the front with a plastic clamp screw.
A slightly positive air pressure is pulsed at the rear of the syringe to ensure the
auger valve is not starved of adhesive and a consistent supply is maintained.
The pulses are programmed in software to correspond with the auger feed
movement phases of the dispense cycle.
Adhesive Delivery
Mechanism
The delivery mechanism consists of an Archimedes screw fitted in the auger
valve. A stepper motor and pulley assembly (not shown) rotate the screw in the
auger valve. This action, combined with the positive air feed at the rear of the
syringe, ensure a consistent level of dispense when used in the correct operat-
ing conditions (temperature/humidity). The auger is purged with adhesive after
a syringe has been replaced.
The drive rotates for a pre-programmed number of steps in the feed direction.
The adhesive flows out of the nozzle onto the product surface, forming a dot. At
the end of each dispense, the motor can be reversed, this allows the auger to
draw adhesive back into the nozzle to avoid ‘stringing’. The number of motor
