TRANSPORTATION - MAJOR RELOCATION DISMANTLING THE MACHINE 42.26 Technical Reference Manual Chapter Issue 5, Nov 19 8. Remove the monitor bracket shaft cap using a 2mm Allen key (bracket shown removed for clarity). 9. Unl…
TRANSPORTATION - MAJOR RELOCATION
DISMANTLING THE MACHINE
Chapter Issue 5, Nov 19 Technical Reference Manual 42.25
2. Disconnect the Rear Monitor USB Connection (free floating connector
behind the monitor).
3. Remove the front cover.
4. Locate the free floating USB connector inside the machine that the keyboard
connects to.
5. Disconnect the keyboard from the USB connector and feed the cable
outside the machine.
6. Using a 2mm Allen key, remove the dowel pin to release the MMI cables.
7. Unscrew the monitor securing screw and lift the monitor upwards to remove
it from the monitor fixing bracket (monitor shown removed for clarity).
Dowel Pin
Monitor Fixing Bracket
Monitor Securing Screw
TRANSPORTATION - MAJOR RELOCATION
DISMANTLING THE MACHINE
42.26 Technical Reference Manual Chapter Issue 5, Nov 19
8. Remove the monitor bracket shaft cap using a 2mm Allen key (bracket
shown removed for clarity).
9. Unlock the release catch and slide the monitor bracket upwards and off the
monitor bracket shaft.
10. Refit the cap.
11. Feed the cables into the machine and tie up securely.
12. Refit the front cover.
Type 5 Covers 1. Remove the following connections on the rear of the monitor:
• Monitor Power Cable (DC)
•VGA Cable
2. Disconnect the Keyboard connector from the USB extension port and feed
the cable outside the machine.
3. Remove the keyboard.
Securing Screw
Monitor Bracket Shaft
Cap
TRANSPORTATION - MAJOR RELOCATION
DISMANTLING THE MACHINE
Chapter Issue 5, Nov 19 Technical Reference Manual 42.27

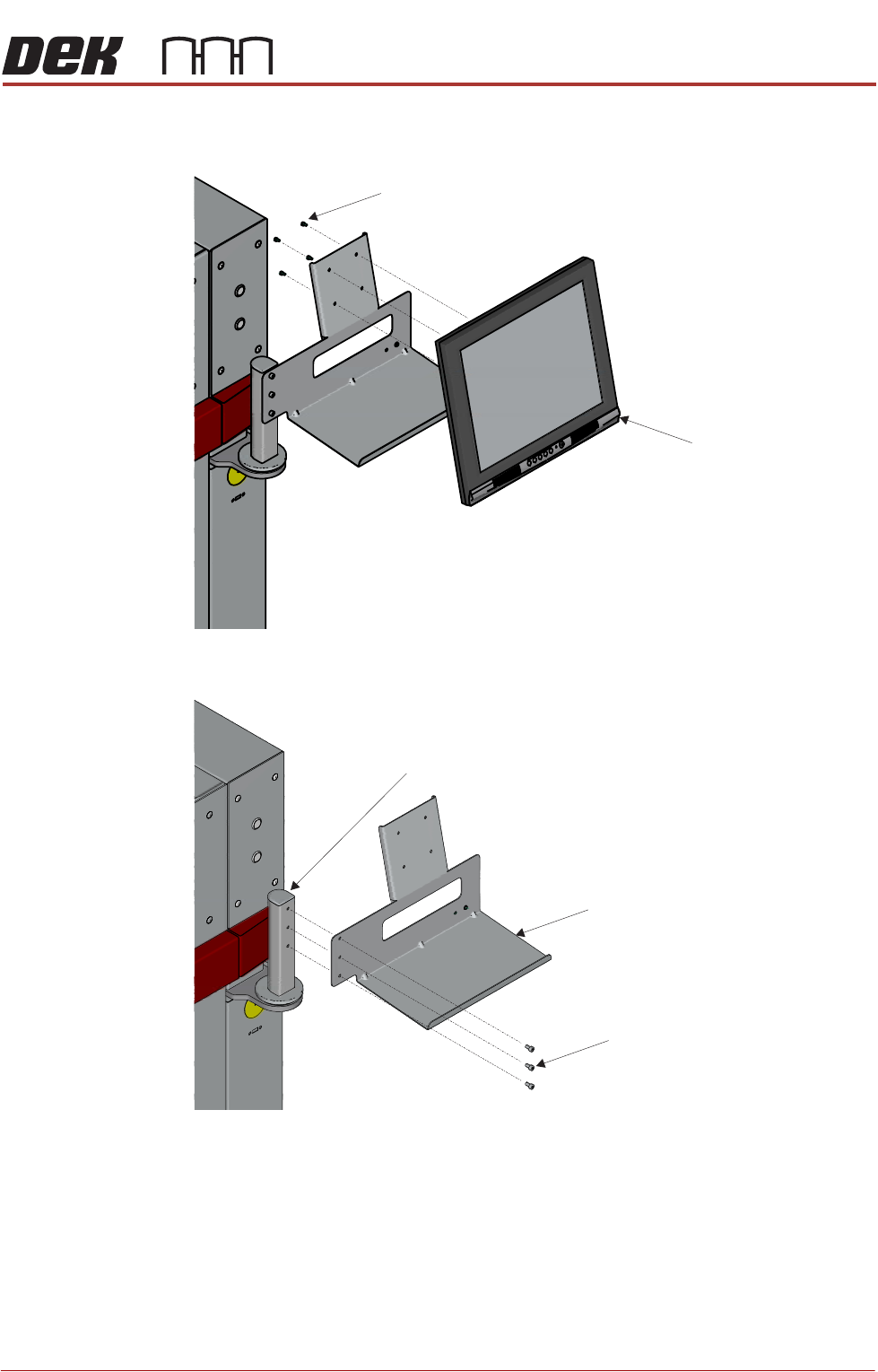

4. Unscrew the monitor securing screws and remove the monitor from the
monitor bracket.
5. Unscrew the Monitor Bracket securing screws and remove the monitor
bracket from the Monitor Bracket Shaft.
6. Feed the cables into the machine and tie up securely.
7. Refit the front cover.
Monitor
Securing screws
Monitor Bracket
Monitor Bracket Shaft
Securing screws
