TRANSPORTATION - MAJOR RELOCATION
DISMANTLING THE MACHINE
Chapter Issue 5, Nov 19 Technical Reference Manual 42.15
DISMANTLING THE MACHINE
To ensure the machine is not damaged during transportation, carry out the
following procedures:
Tricolour Beacon
Type 1 Covers 1. Disconnect the tricolour beacon connection 14PL07 from 14SK07.
2. Remove the tricolour beacon from the beacon bracket by undoing one of the
nuts and sliding the beacon out of the cut-out on the beacon bracket.
3. Cable tie the loose cable to the cover frame.
View on Right Hand Side of Machine (covers removed)
Beacon Connection
Tricolour Beacon
Beacon Bracket
Cover Frame
TRANSPORTATION - MAJOR RELOCATION
DISMANTLING THE MACHINE
42.16 Technical Reference Manual Chapter Issue 5, Nov 19
Type 2 Covers 1. Disconnect the tricolour beacon connection 14PL07 from 14SK07.
2. Loosen the beacon locking nut.
3. Remove the beacon from the beacon bracket.
View on Rear of Printer
Beacon Connection
Beacon Bracket
Beacon Locking Nut
TRANSPORTATION - MAJOR RELOCATION
DISMANTLING THE MACHINE
Chapter Issue 5, Nov 19 Technical Reference Manual 42.17

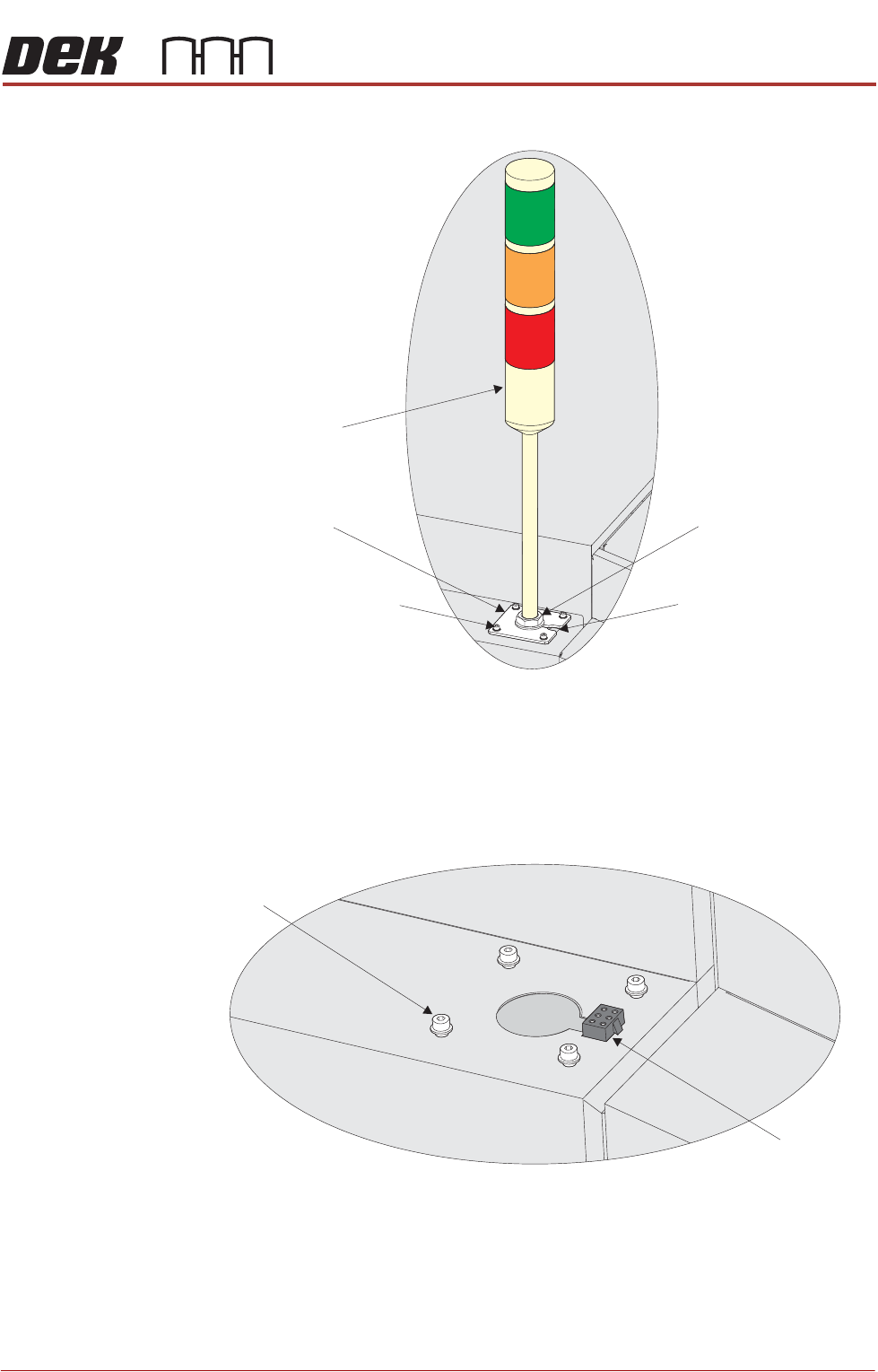

Type 3 Covers 1. Using a 3mm Allen key, remove the beacon bracket from the machine cover.
2. Pull the cable up through the hole to reveal the connector.
3. Maintaining hold of the socket 14SK07 (to prevent the socket from falling
into the machine through the hole), disconnect the tricolour beacon connec-
tion 14PL07 from 14SK07.
4. Place the socket 14SK07 in the cut-out on the cover.
5. Refit the four beacon bracket securing screws.
Beacon Bracket
Tricolour Beacon
Beacon Securing Nut
Beacon Bracket Cut-Out
Beacon Bracket Securing
Screws (in 4 positions)
Beacon Bracket
Securing Screws
(in 4 positions)
Beacon Connector
(14SK07)
View on Right Hand Side of the Machine
