TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
Chapter Issue 5, Nov 19 Technical Reference Manual 42.89
2. If adjustment is required, loosen the locking nuts on the two auxiliary
conveyor height adjustment bolts.
3. Adjust the position of the conveyor to obtain the 3.5mm ±0.5mm gap
between the front and rear rails of the auxiliary conveyor and the front and
rear rails of the print station.
4. Re-tighten the locking nuts disturbed in Step 2 and recheck the measure-
ment.

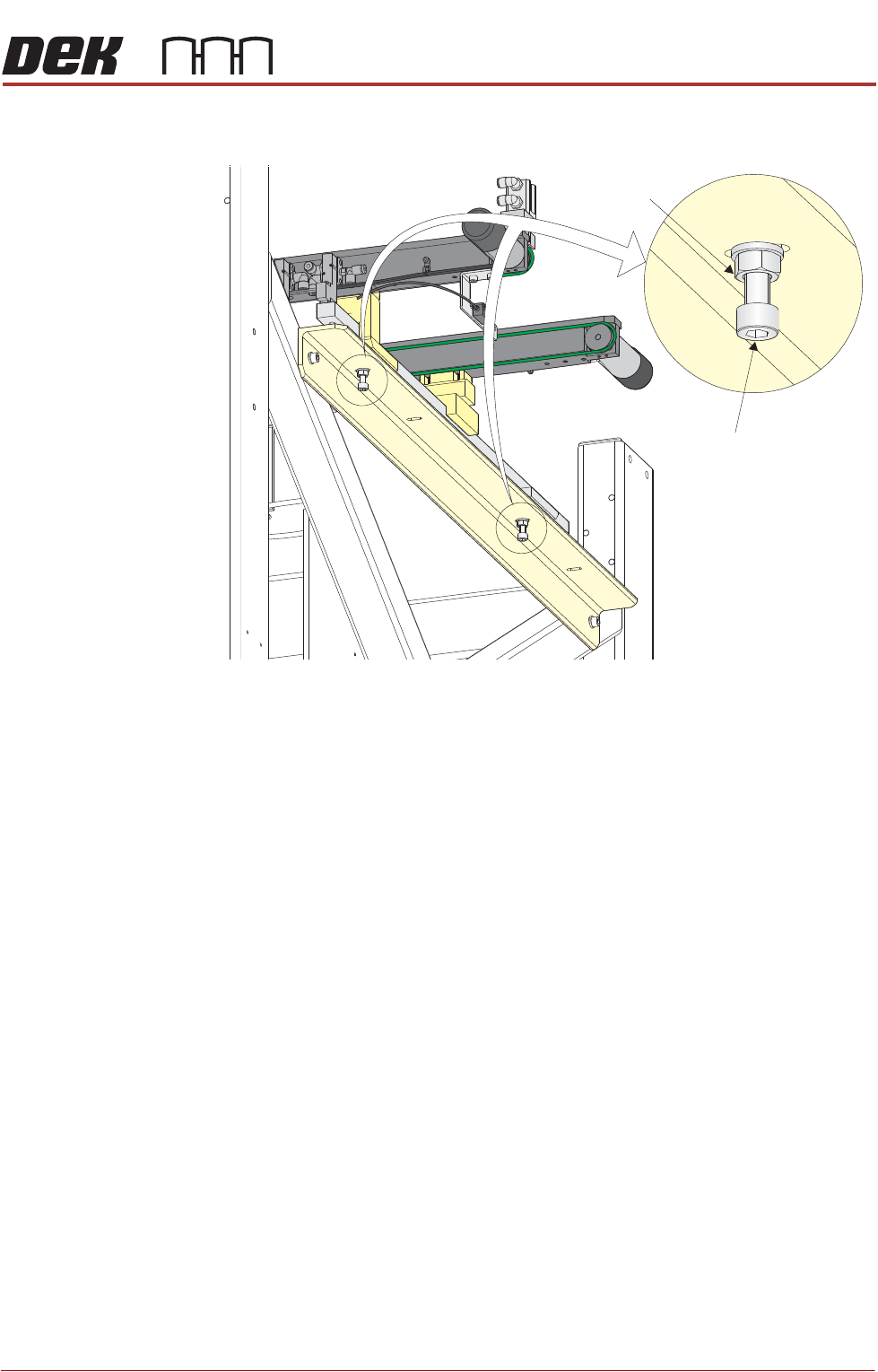

Auxiliary Conveyor
Levelling
To check and if required adjust the levelling of the auxiliary conveyors, carry out
the following procedure:
1. Manually adjust the auxiliary conveyor rail width to 250mm.
2. Place a Board Clamp Setting Plate Part No. 140403 onto the auxiliary
conveyor transport belts.
Auxiliary Conveyor
Height Adjustment
Bolt
Locking Nut
TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
42.90 Technical Reference Manual Chapter Issue 5, Nov 19
3. Place a spirit level on top of the setting plate and check the levelness of the
conveyor in the X and Y planes.
4. If adjustment is required, carry out the following:
a. By careful adjustment of the grub screws on the top face of the auxiliary
conveyor front and rear linear bearing holders, raise or lower the height
of the conveyor about the auxiliary conveyor height adjustment bolt, to
achieve conveyor levelness.
b. Carry out Steps 2 and 3 to recheck for conveyor levelness.

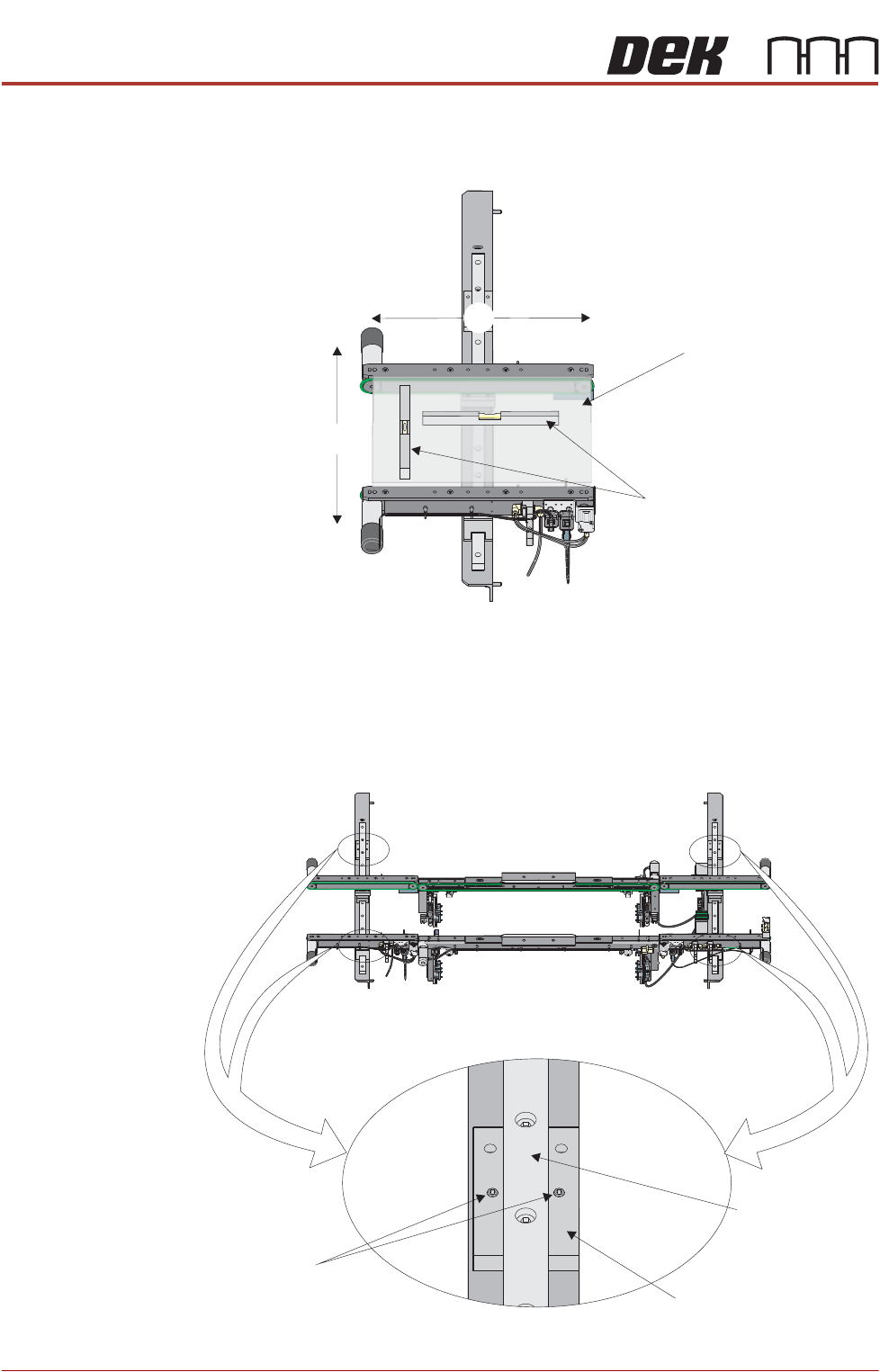

View on Auxiliary Conveyor
Y
Board Clamp
Setting Plate
Spirit Level
X
Front View of HTC Rails
Grub Screw
Linear Bearing
Linear Bearing Holder
TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
Chapter Issue 5, Nov 19 Technical Reference Manual 42.91
NOTE
Auxiliary conveyor height settings and parallelism is checked after Machine
Power Up Sequence.
ProFlow 1. Carefully position the ProFlow printhead mechanism so that both locating
dowels locate into the print carriage locating holes. Secure the unit to the
print carriage by means of the four captive screws.
2. Connect the following connectors to the print carriage, left hand side:
• ProFlow motor connector 9PL17 into 9 way socket 9SK17
• ProFlow home sensor connector 9PL08 into 6 way socket 9SK08
Captive Screw (in 4 positions)
Locating Dowel
(in 2 positions)
Print Carriage Locating
Hole (in 2 positions)
Pneumatic Connectors
ProFlow Motor
(9SK17)
Home Sensor
(9SK08)
ProFlow Paste Level
Sensor (9PL61)
ProFlow Printhead
Mechanism
