CHAPTER 39 DIAGNOSTICS

INTRODUCTION The diagnostic function is an aid to the user to allow individual access and

control of motors and modules. It allows the user to control the sequence of the

printer so that a particular module can be exercised.

To enter diagnostics:

Select Maintenance.

Select Diagnostics.

NOTE

If diagnostics is password protected, the correct password must be entered

before access is allowed.

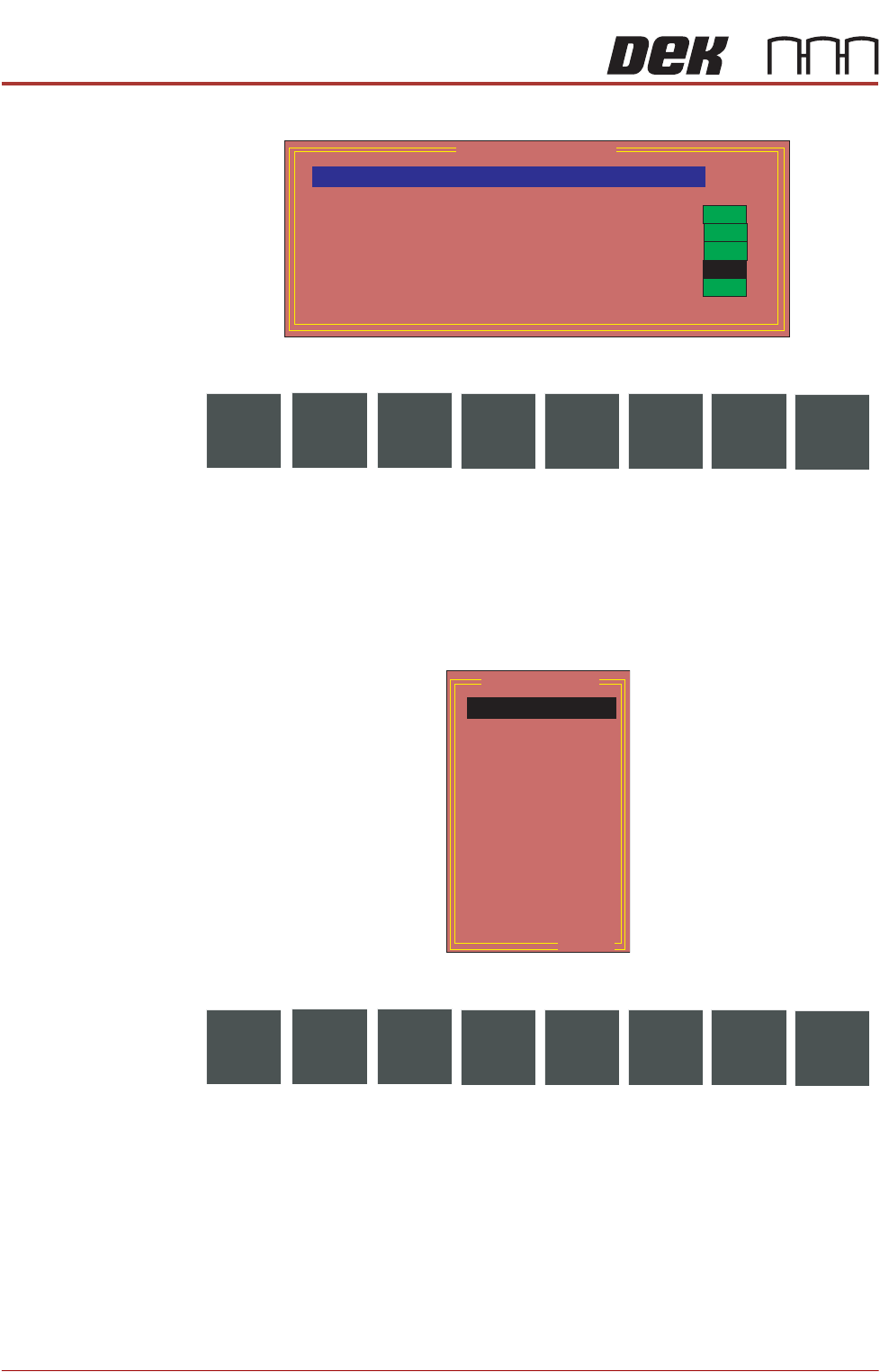

The following window is displayed:

The following icons are displayed:

Next/Previous moves the highlight bar up and down the list of diagnostic

modules.

Select Module opens a new window displaying the diagnostic functions avail-

able for the selected module.

Machine Setup is a password protected function for ASM engineers only.

Exit closes the diagnostics page, initialises the printer and returns the display

to the maintenance page.

Select Back to return to the Ready page.

NOTE

Before any diagnostic function is used in any of the modules they must be

homed first or they are not able to initiate a command.

Module Diagnostic Page

System

Print Carriage

ProFlow / Squeegee

Camera Axes

Rail System

Paste Dispense System

Screen Alignment

Screen Change

Screen Cleaner

Rising Table

MIU

Vacuum Tooling

Pass Through Rails

Select

Module

Machine

Setup

Exit

DIAGNOSTICS

SYSTEM

39.2 Technical Reference Manual Chapter Issue 4, Aug 14

SYSTEM Selecting this diagnostic module opens the following window:

The following icons are displayed:

Next/Previous moves the highlight bar up and down the list of selectable

diagnostic functions.

Run Diagnost activates the diagnostic function, as selected by the highlight

bar.

Exit returns operation to the module diagnostic page.

Display All Digital

Inputs

Selecting this diagnostic function opens the following window:

The following icons are displayed:

Next/Previous moves the highlight bar up and down the list of diagnostic

modules.

Select opens a new window displaying the diagnostic functions available for the

selected option.

Exit returns operation to the system diagnostics page.

NOTE

1. The signal listings, shown on the right hand side of the following diagnostic

windows, are not shown on the MMI screen, they are included here as an

aid to show the relationship between the I/O signal and the point description.

System Diagnostics

OFF

Display all Digital Inputs

Display all Analogue Inputs

Toggle Red Beacon

Toggle Amber Beacon

Toggle Green Beacon

Toggle Lid Bolt

Data Logging

Terminate Control Program

Run

Diagnost

Exit

Digital Group

Node 1 Group 0

Node 1 Group 1

Node 1 Group 2

Node 1 Group 3

Node 2 Group 0

Node 2 Group 1

Node 2 Group 2

Node 3 Group 0

Node 3 Group 1

Node 3 Group 2

Node 4 Group 0

Node 4 Group 1

Node 4 Group 2

..more

Select

Exit
