HERMES
SETUP
37.12 Technical Reference Manual Chapter Issue 2, Nov 19
1. Select Maintenance.
2. Select Machine Setup.
3. Select Barcodes.
4. Select Barcode Source.
5. Select Hermes.
6. Select Accept.
7. Select Exit.
8. Select Back.
9. Select Back.
HERMES
TESTING THE CONNECTION
Chapter Issue 2, Nov 19 Technical Reference Manual 37.13
TESTING THE CONNECTION
Pinging the
Network
To test if the DEK printer is connected to the network, you can ‘Ping’ the network
using the following procedure:
1. From the Windows desktop, select Start - Run and enter CMD in the box
labelled ‘Open:’.
2. Select OK.
3. Type Ping <Server IP Address or Computer Name>.
NOTE
The network administrator can supply an IP Address or computer name to
ping.
4. If the ping is successful the reply shall contain information of the form: Reply
from 195.213.112.69: bytes=32 time<10ms TTL=128.
The installation of the printer to the company network has been successful.
HERMES
TESTING THE CONNECTION
37.14 Technical Reference Manual Chapter Issue 2, Nov 19
Using a Laptop If ‘Pinging’ the network fails, a laptop computer can be attached to the printing
machine to test the network driver and card is working correctly.
NOTE
Before commencing testing, make a note of the original configurations of both
the laptop and the printer so that they can be reset on completion.
1. Connect the laptop to the DEK printer using a cross-over network cable.
2. On the laptop, change the IP Address to 195.100.100.2 with a subnet mask
of 255.255.255.0.
3. Select OK and reboot the laptop.
4. On the DEK printer, change the IP Address to 195.100.100.1 with a subnet
mask of 255.255.255.0.
5. Select OK and reboot the printer.
6. From the Windows desktop, select Start - Run and enter CMD in the box
labelled ‘Open:’.
7. Select OK.
8. Type Ping 195.100.100.2.
9. If the ping is successful, the reply displays the following information: Reply
from 195.100.100.2: bytes=32 time<10ms TTL=128.
10. Disconnect the cross-over network cable and reset the printer and laptop to
their original settings.

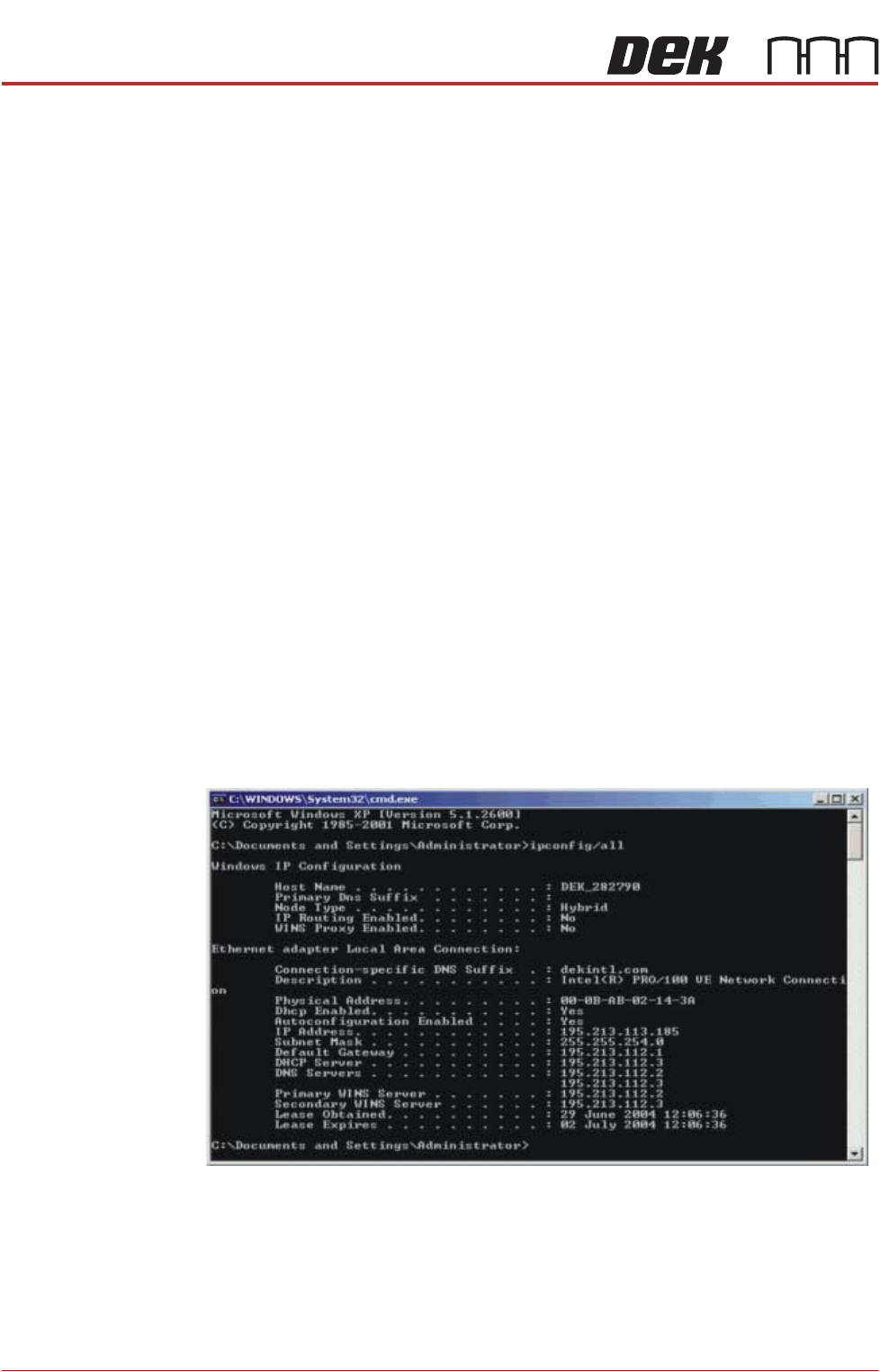

Finding an IP
Address
If the IP Address of a printer is not known (either PC or DEK Printer) these can
be obtained by opening the Command Prompt window. At the prompt type
IPCONFIG/ALL
All addresses are listed which the item is connected to including routers and
other servers.
Handshaking Whilst all inter station communication is carried out in the background, a Pre-
condition on the Print button alerts the user if the stations are not conjoined.
