TRANSPORTATION - MINOR RELOCATION INTRODUCTION Chapter Issue 4, May 19 Technical Reference Manual 41.1 CHAPTER 41 TRANSPOR T A TION - MINOR RELOCA TION INTRODUCTION The following three chapters describe the recommended p…

SENSORS

TEMPERATURE AND HUMIDITY SENSOR

40.20 Technical Reference Manual Chapter Issue 6, May 19

TRANSPORTATION - MINOR RELOCATION

INTRODUCTION

Chapter Issue 4, May 19 Technical Reference Manual 41.1

CHAPTER 41 TRANSPORTATION - MINOR RELOCATION

INTRODUCTION The following three chapters describe the recommended procedure for moving

or storing the machine:

• Minor Relocation - Moving the machine to another area within the factory

• Major Relocation - Moving the machine to another factory or storage

• Power Up - Must be performed after Minor or Major Relocation

The following procedure is utilized to minimize the risk of damage to the

machine when:

• The machine is brought out of line for servicing or fault rectification.

• The machine is being relocated a short distance from its original position,

ie within the confines of the factory on a pallet truck or similar manually

operated machine.

For major relocation, factory to factory moves, long term storage or where

excessive noise or vibration may affect the printer, refer to Transportation -

Major Relocation.

Machine

Preparation

1. With power applied to the machine, home the stencil actuators.

2. Switch OFF and disconnect the electrical power.

3. Disconnect the pneumatic supply.

4. Remove/open the rear printhead cover as detailed in the Covers chapter.

5. On Type 1 cover machines, remove the two upper side panels as detailed

in the Covers chapter.

TRANSPORTATION - MINOR RELOCATION

TRANSIT BRACKET INSTALLATION

41.2 Technical Reference Manual Chapter Issue 4, May 19

TRANSIT BRACKET INSTALLATION

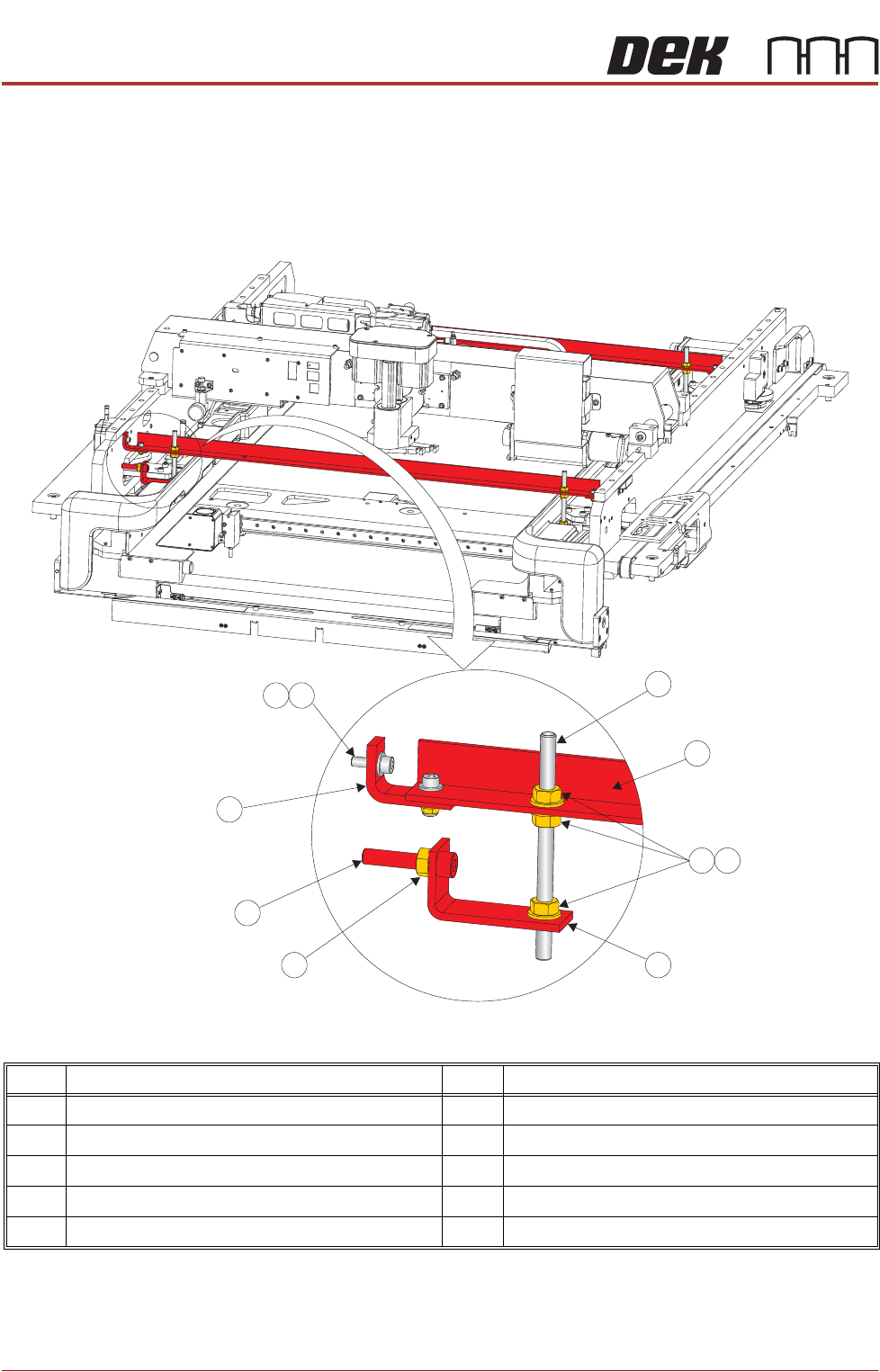

The figure below shows the transit brackets fully assembled for part identifica-

tion. Do not assemble off the machine, use the following procedure to assemble

the transit brackets on the machine.

Figure 41-1 Front and Rear Transit Brackets

NOTE

Item 5, the Left Chase Bracket is fitted upside down on dual lane machines.

Item Description Item Description

1 M8 Chase Stud 6 Transit Adjustment Screw Lock Nut

2 Front/Rear Transit Bracket 7 Transit Adjustment Screw

3 M8 Nut 8 Adaptor Bracket

4 M8 Washer 9 M5 Cap Head Screw

5 Left Chase Transit Bracket 10 M5 Washer
