TRANSPORTATION - MAJOR RELOCATION

MACHINE ASSEMBLY

42.100 Technical Reference Manual Chapter Issue 5, Nov 19

12. Pull on the right hand side thumbscrew and slide the right hand side mount

bracket to the left so it engages with the transfer head locator dowel. Ensure

the Archimedes screw gears engage smoothly.

13. Tighten the right hand side thumbscrew to secure the mount bracket to the

beam.

14. Connect the following transfer head cable and air feed connectors to the

connectors on the left hand side of the ProFlow ATx mount:

• Print Medium Demand Sensor (9PL106)

• Pistons Down Air Feed

• Pistons Up Air Feed

15. Turn the two locking clips, on the base cover, to the unlock position (pointing

Transfer Head

Locator Dowel

Archimedes Screw

Gears

ProFlow ATx

Mount

View on Left Side of the Mount

Print Medium Demand

Sensor 9SK106

Pistons Down

Air Feed

Pistons Up

Air Feed

View on Left Side of the ProFlow Mount

TRANSPORTATION - MAJOR RELOCATION

MACHINE ASSEMBLY

Chapter Issue 5, Nov 19 Technical Reference Manual 42.101

upwards).

16. Remove the sealing plug from the transfer head.

17. Remove the base cover from the transfer head.

Levelling the

Transfer Head

For an even application of print medium, during both the forward and rearward

print-strokes, obtain equal pressure on the tips of the wiper blades by levelling

the transfer head against the stencil when under system pressure. To adjust the

level of the transfer head, carry out the following on the ProFlow ATx mount:

1. Loosen the two transfer head pin mount lock screws, using a 3mm Allen key.

2. Evenly adjust the two transfer head levelling screws, using a 2mm Allen key.

Turning the levelling screws clockwise lowers the front of the transfer head.

Turning the levelling screws counter-clockwise raises the front of the trans-

fer head.

3. Tighten the two transfer head pin mount lock screws, using a 3mm Allen key.

4. Perform a print operation.

5. Inspect the print medium application; if further levelling is required, repeat

the procedure.

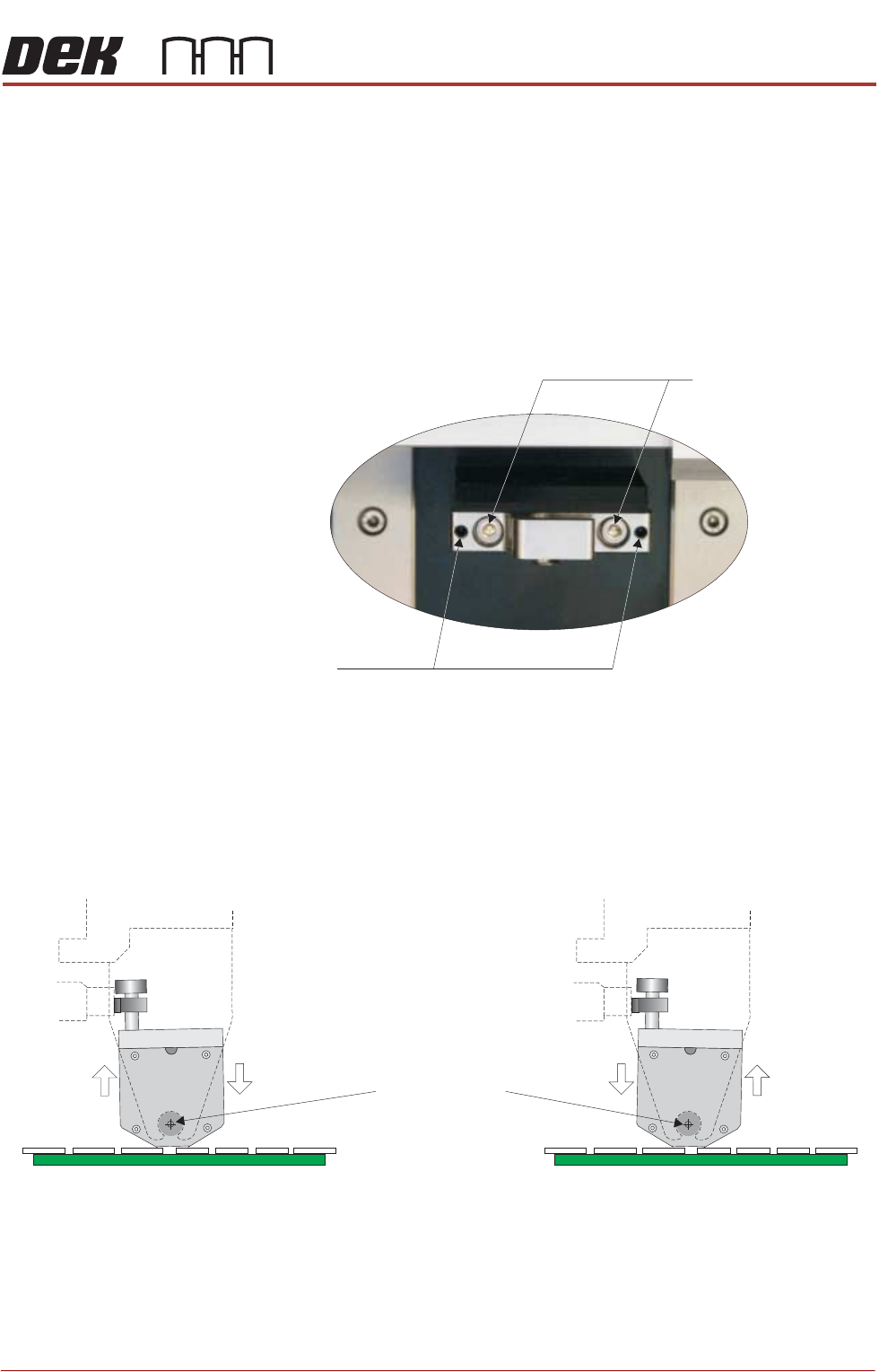

Transfer Head Vertical Pin Mount on ProFlow ATx Mount

Transfer Head

Levelling Screws

Pin Mount Lock Screws

View on Transfer Head Left Hand End (Through ProFlow Mount)

Transfer Head’s

Point of Rotation

Levelling Screws Clockwise

Levelling Screws Counter-clockwise

TRANSPORTATION - MAJOR RELOCATION

MACHINE ASSEMBLY

42.102 Technical Reference Manual Chapter Issue 5, Nov 19

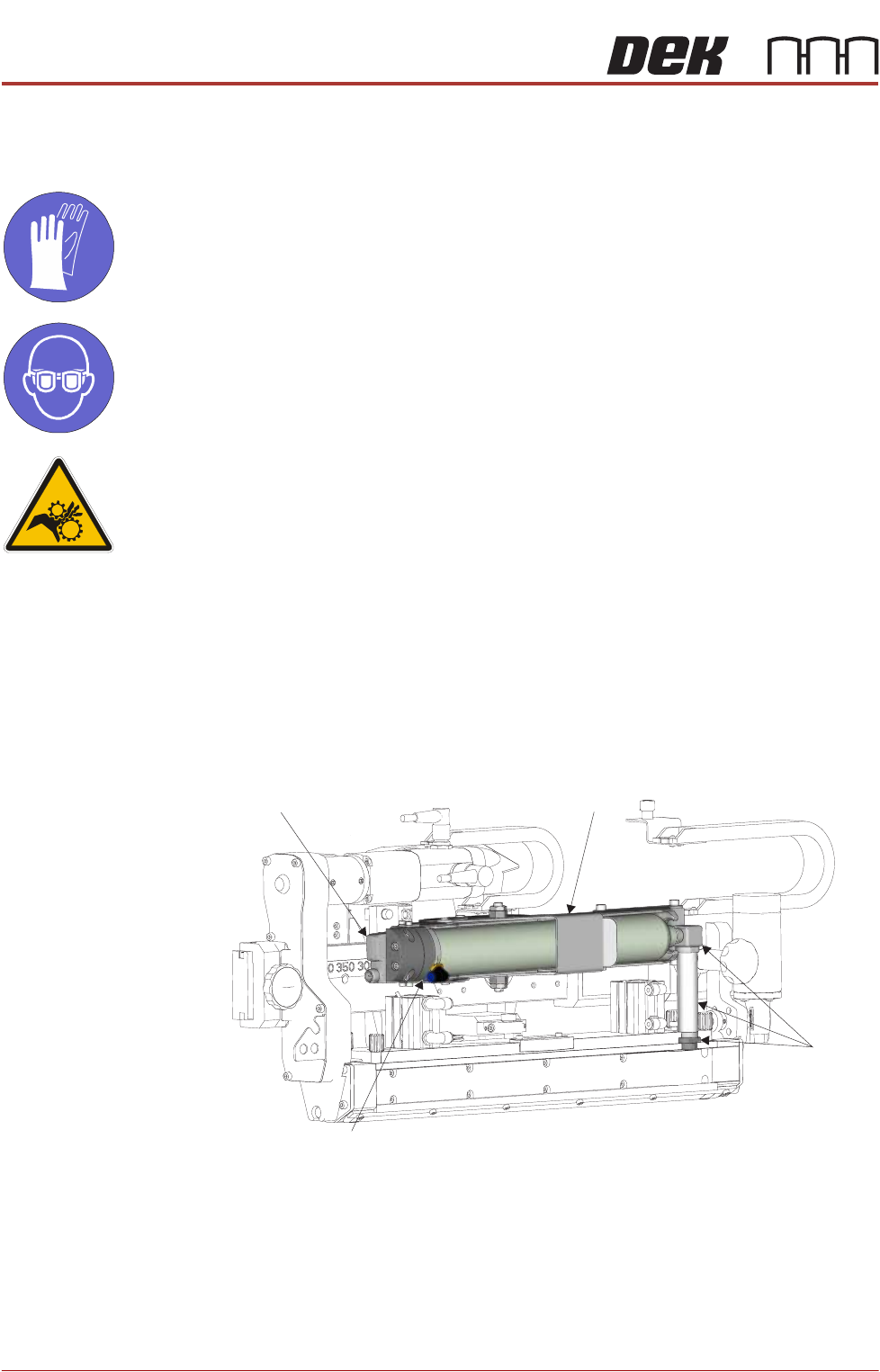

Paste Dispenser

Fit Print Medium Cartridge

MANDATORY

TOXIC CHEMICALS MAY BE PRESENT. SAFETY GLOVES MUST BE WORN.

MANDATORY

TOXIC CHEMICALS MAY BE PRESENT. EYE PROTECTION MUST BE WORN.

WARNING

MOVING PARTS. MOVING PARTS ARE PRESENT IN THE VICINITY OF THIS

WARNING LABEL, THESE PARTS HAVE THE POTENTIAL TO CAUSE INJURY.

NOTE

The following procedure assumes that an empty cartridge is fitted; if this is not

the case, open the lever arm (Step 4) and begin the procedure at Step 9 - “Fit
