TRANSPORTATION - MINOR RELOCATION
MACHINE HEIGHT AND LEVELLING
41.22 Technical Reference Manual Chapter Issue 4, May 19
12. Move the engineering level along the centre row of screws running from front
to back.
13. Change the orientation of the Level and adjust the front centre mounting foot
(6) to level the machine in the Y direction.
14. Adjust the front centre mounting foot (6) to level the machine in the Y
direction.
15. Repeat Steps 11 to 14 until the machine is level in both directions.
16. Carefully lower the front left mounting foot (1) so that it is in contact with the
floor.
17. Recheck the machine level has not been disturbed.
18. Carefully lower the front right mounting foot (2) so that it is in contact with
the floor.
19. Recheck the machine level has not been disturbed.
20. Lower the front centre mounting foot (6) so it is not in contact with the
machine.
21. Remove the front centre mounting foot (6) and store in a safe place.
22. Tighten mounting feet locknuts.
23. Recheck the machine is level.
24. Recheck the machine height has not been disturbed.
25. Remove the engineering level from the machine.

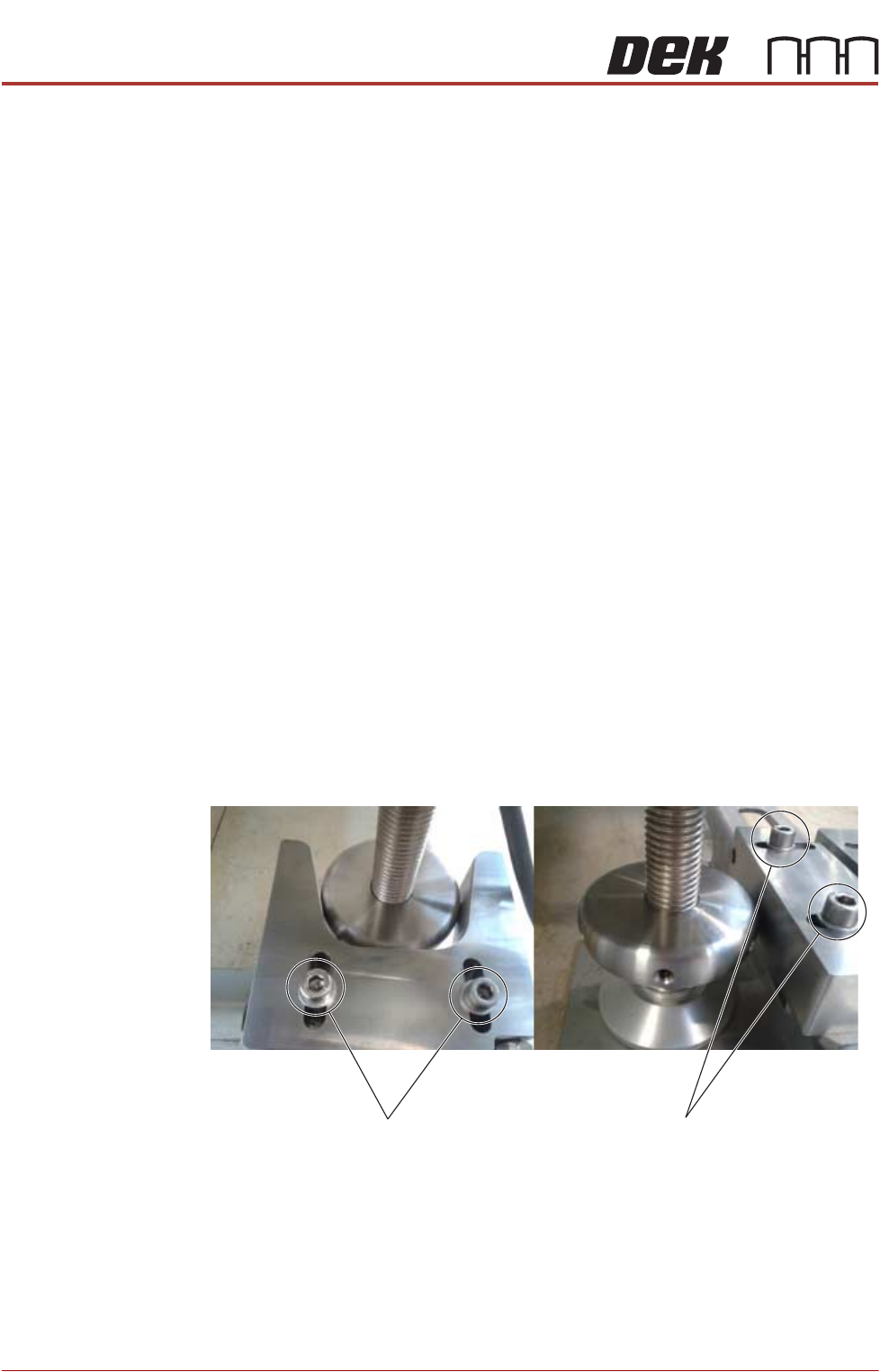

26. Position the V-block so contact is made with the locating collar on foot (4).
27. Position the location block so contact is made with the locating collar on foot
(3).
28. Fully tighten the fixing screws securing both location blocks.
29. Position the locator blocks for Machine B to achieve maximum adjustment,
and ensure parallel to the locator blocks for Machine A.
V-Block
Fixing Screws
Location-Block
Fixing Screws
TRANSPORTATION - MINOR RELOCATION
MACHINE HEIGHT AND LEVELLING
Chapter Issue 4, May 19 Technical Reference Manual 41.23
30. Rotate the stopper bolts by hand until they make contact with the opposing
block, and then secure them using the locknuts.
31. Move Machine A back into position locating foot (3) into V-Block.
32. Position locating foot (4) against Locating Block.
33. Recheck the machine is level.
34. Recheck the machine height has not been disturbed.
Power Up On completion of relocation, carry out the procedure in the Transportation -
Power Up chapter.
Stopper Bolts
