TRANSPORTATION - MAJOR RELOCATION MACHINE ASSEMBLY 42.108 Technical Reference Manual Chapter Issue 5, Nov 19 13. Slide the angle brackets towards the machine cover , ensuring that either the vertical or sloping side (as …

100%1 / 310
TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
Chapter Issue 5, Nov 19 Technical Reference Manual 42.107
10. Fit the combined cap and 4mm tubing to the solvent container.
11. Connect the cable from the external solvent tank to 9SK69 on the external
services panel.
12. Fit the rear cover (front cover on type 4 machines).
Solvent Container Cap
Base Plate
View on Rear of Machine
POWER ON
PART No. 160740
M/C AVAILABLE
BOARD AVAILABLE
BOARD PASS
D
O
W
N
L
IN
E
BOARD AVAILABLE
BOARD PASS
M/C AVAILABLE
U
P
L
IN
E
FMI POD
Solvent Fluid
Connector
Solvent Sensor
9SK69
TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
42.108 Technical Reference Manual Chapter Issue 5, Nov 19
13. Slide the angle brackets towards the machine cover, ensuring that either the
vertical or sloping side (as appropriate), is 1.5 to 2.5mm from the machine
cover.
14. Tighten the two M5 cap head securing screws.
Tooling and Print
Medium
Applicators
Any material applicator or tooling removed from the machine prior to it’s move
should be refitted. Refer to the individual item chapter or the tutorial set supplied
with the machine.
Power Up On completion of relocation, carry out the procedure in the Transportation -
Power Up chapter.
0DFKLQH&RYHU
6HFXULQJ6FUHZV
$QJOH
%UDFNHWV
PP*DS
TRANSPORTATION - POWER UP
PRE POWER UP CHECKS
Chapter Issue 3, Nov 19 Technical Reference Manual 43.1
CHAPTER 43 TRANSPORTATION - POWER UP
PRE POWER UP CHECKS
Electrical Test Before the machine is connected to the factory electrical supply, the following
electrical tests must be performed:
1. Ensure the mains isolator switch is in the OFF position.
2. Remove the front cover of the machine to gain access to the mains isolator
switch.
3. Remove the front cover of the mains isolator switch.

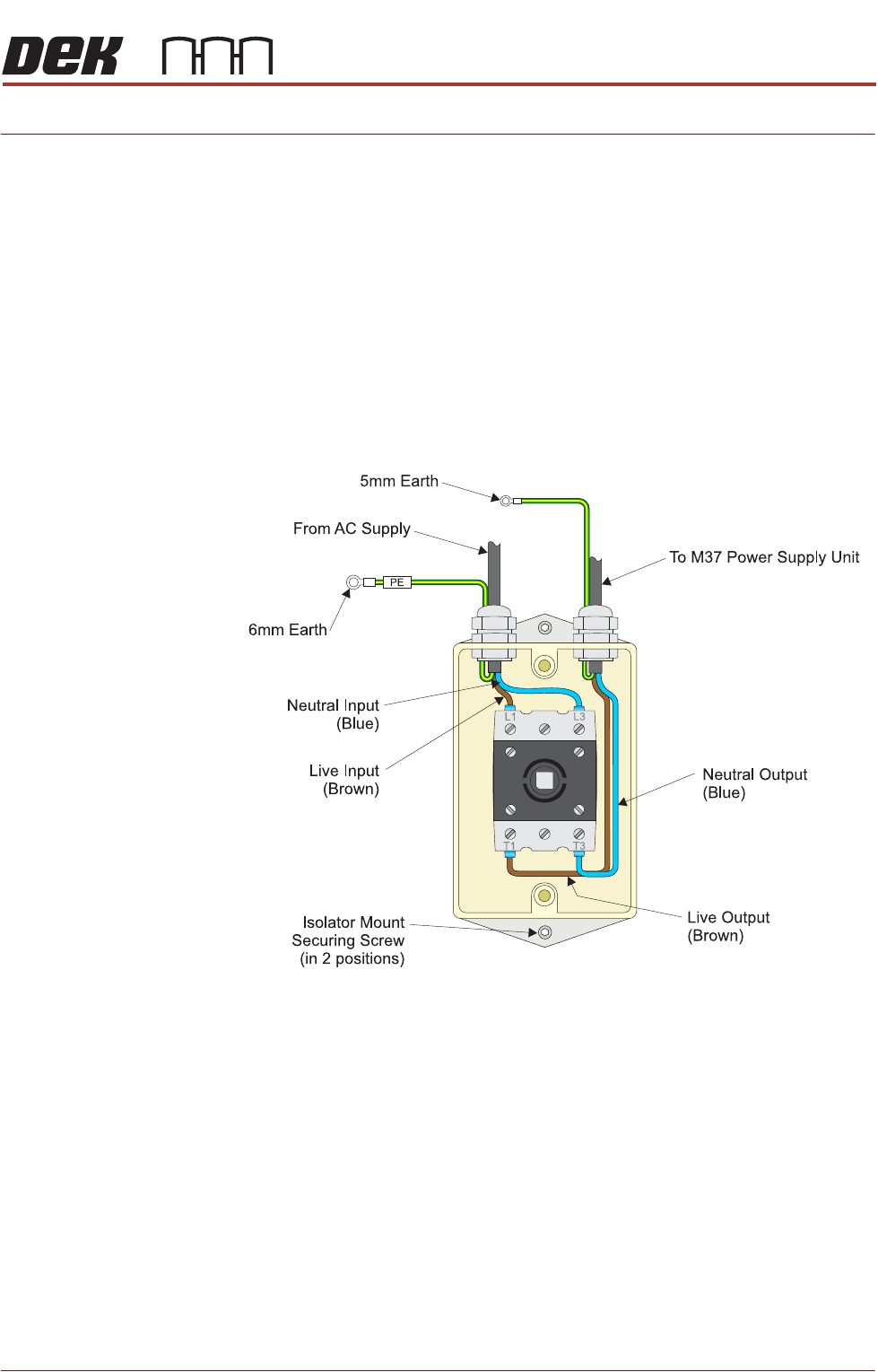

4. Perform a visual inspection of the mains isolator switch ensuring the follow-
ing:
a. The earth input and earth output cables are connected to the earth tag.
b. The live input is connected to the top of the isolator switch on the left hand
side.
c. The live output is connected to the bottom of the isolator switch on the left
hand side.
d. The neutral input is connected to the top of the isolator switch on the right
hand side.
e. The neutral output is connected to the bottom of the isolator switch on the
right hand side.
5. Ensure that all six cables are secure and no bare wires are showing.
6. Connect the two probes of a digital volt meter (DVM) together and ensure
that the DVM is reading 0Ω.
