STINGER
REPLACEMENT PROCEDURES

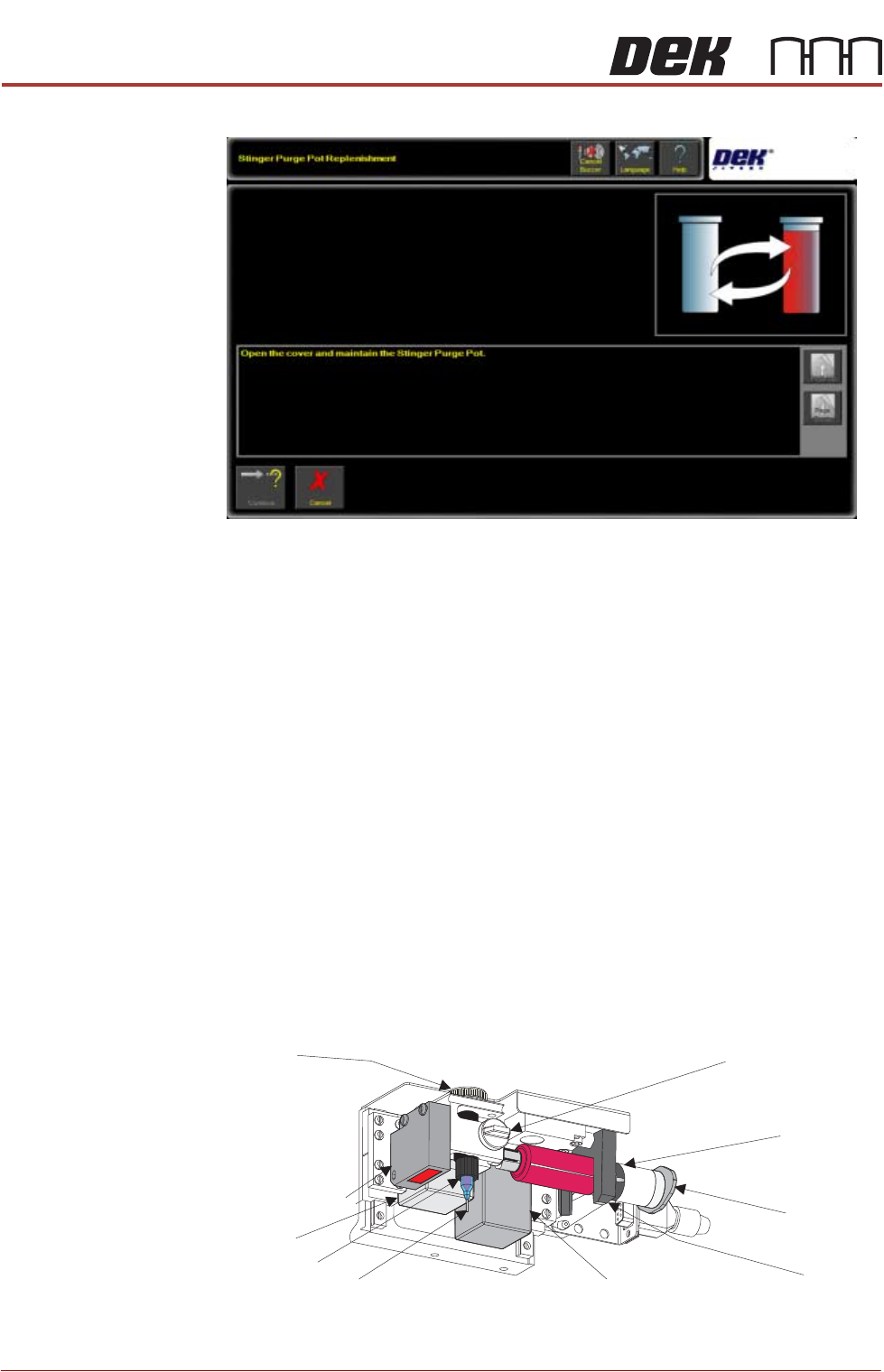

When the pot is full a panel is displayed reminding the user to replenish the pot.
NOTE
In product changeover, where hardware has been replaced, the laser unit needs
to be recalibrated. It is advised to carry out the manual calibration of Stinger
heights, see appendix, prior to performing the automatic calibration.
Auger Assembly
Replacement
1. Remove the replacement syringe assembly from refrigeration and allow the
temperature to rise in accordance with the manufacturers’ recommenda-
tions. Remove the end dust cap.
2. Isolate the printer from the pneumatic supply and lockout the mains electri-
cal isolator.
3. Open the printhead front cover.
4. If fitted, remove the stencil.
5. Pull the camera carriage to the front of the printer.
6. Slacken off the auger clamp screw.
7. Release the auger, nozzle and syringe as one assembly from the drive gear
and the ‘C’ clamp.
8. Remove the pneumatic air connector from the rear of the syringe assembly.
9. Dispose of the syringe and nozzle components in accordance with any
national, federal or local disposal regulations.
Auger Clamp Screw
Auger Drive
Gear
‘C’ Clamp
Z Axis Motor
Pneumatic
Connection
10cc Syringe
Nozzle
Auger
Auger Motor
Laser Light Sensor
STINGER
REPLACEMENT PROCEDURES
Chapter Issue 4, Nov 19 Technical Reference Manual 38.19
10. Fit a replacement nozzle to the auger.
11. Fit the pneumatic air connector to the rear of the syringe assembly.

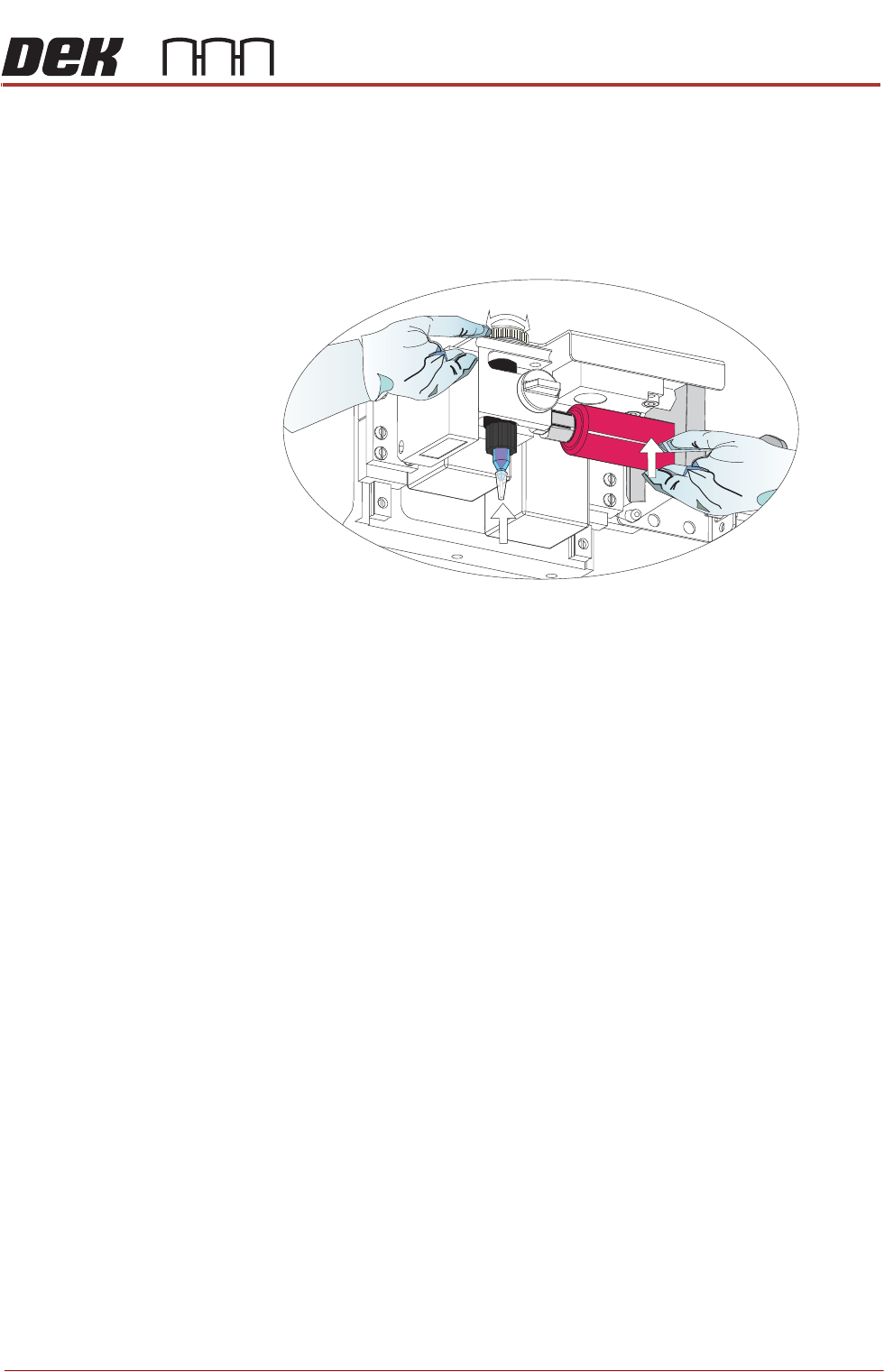

12. Lift the complete assembly up toward the auger drive gear. The auger valve
screw engages with the square shaft of the drive motor, rotate the exposed
portion of the drive belt at the same time pushing the assembly upward
ensuring that it is in the fully up position.
13. Refit the assembly into the ‘C’ clamp.
14. Refit the in-line air connection to the pneumatic air connector.
15. Tighten the plastic auger clamp screw. Do not over tighten.
16. Remove the nozzle dust cap. Ensure that the nozzle assembly is in line with
auger valve and not bent or at an angle.
17. Close the printhead front cover.
18. Reconnect the printer to the pneumatic supply and unlock the mains elec-
trical isolator.
19. Switch the mains isolator ON.
20. When requested, press the System button.
21. Select Load Board and load the calibrated test product as described in the
Calibration section of this manual.
22. Select Setup Product.
23. Select Options.
24. Select Stinger Dispenser.
25. Select Unload Screen.
26. Open the printhead cover and unload the stencil.
27. Close the printhead cover.
28. Press the System button.
Purge station consumable monitoring is turned on in Mainte-
nance\Machine Setup\Options\Stinger Options\Stinger Consumable
Monitoring.
29. Select Purge Process. The camera axis drives to the centre of the board.
30. Load a board on to the printer’s input rail and select Auto Board.
38.20 Technical Reference Manual Chapter Issue 4, Nov 19
STINGER
REPLACEMENT PROCEDURES
31. Selecting Start Purge starts the purge routine. Adhesive is delivered onto
the centre of the boards’ upper surface until the Stop Purge button is
selected.
Purging should be monitored to ensure that the adhesive delivery is flowing
without being spurious or spluttering. Any signs of inconsistency are likely
to be due to air pockets in the delivery mechanism. Provided the assembly
has been set up correctly this should be almost negligible.
32. Close the printhead front cover.
33. Press the System button.
34. Select Back.
35. Select Back.
36. Select Open Cover Commands. Open the front printhead cover.
37. Load the stencil into the printer, close the printhead cover and press the
System button.
38. Select Load Screen. Load a stencil into the printer.
39. Select Confirm.
40. Select Back.
41. Select Back.
42. Select Maintenance\ Machine Setup\ Options.
43. Select Machine Setup.
44. Select Options.
45. Select Stinger Options.
46. Carry out the Stinger Calibrated Offset X and Stinger Calibrated Offset
Y calibrations as described in the calibration section of this chapter.
47. Select Back.
48. Select Back.
49. Select Back.
50. Select Setup Product.
51. Select Options.
52. Select Stinger Dispenser.
53. Select Load Board.
54. Load a board on to the printer’s input rail and select Auto Board.
55. Select Dispense Sweep.
56. Ensure that deposit placement accuracy and volume are acceptable.
57. Select Stop Dispense.
58. Select Back.
59. Select Back.
60. Select Back.
61. Select Auto Board.Remove the board from the output conveyor.
